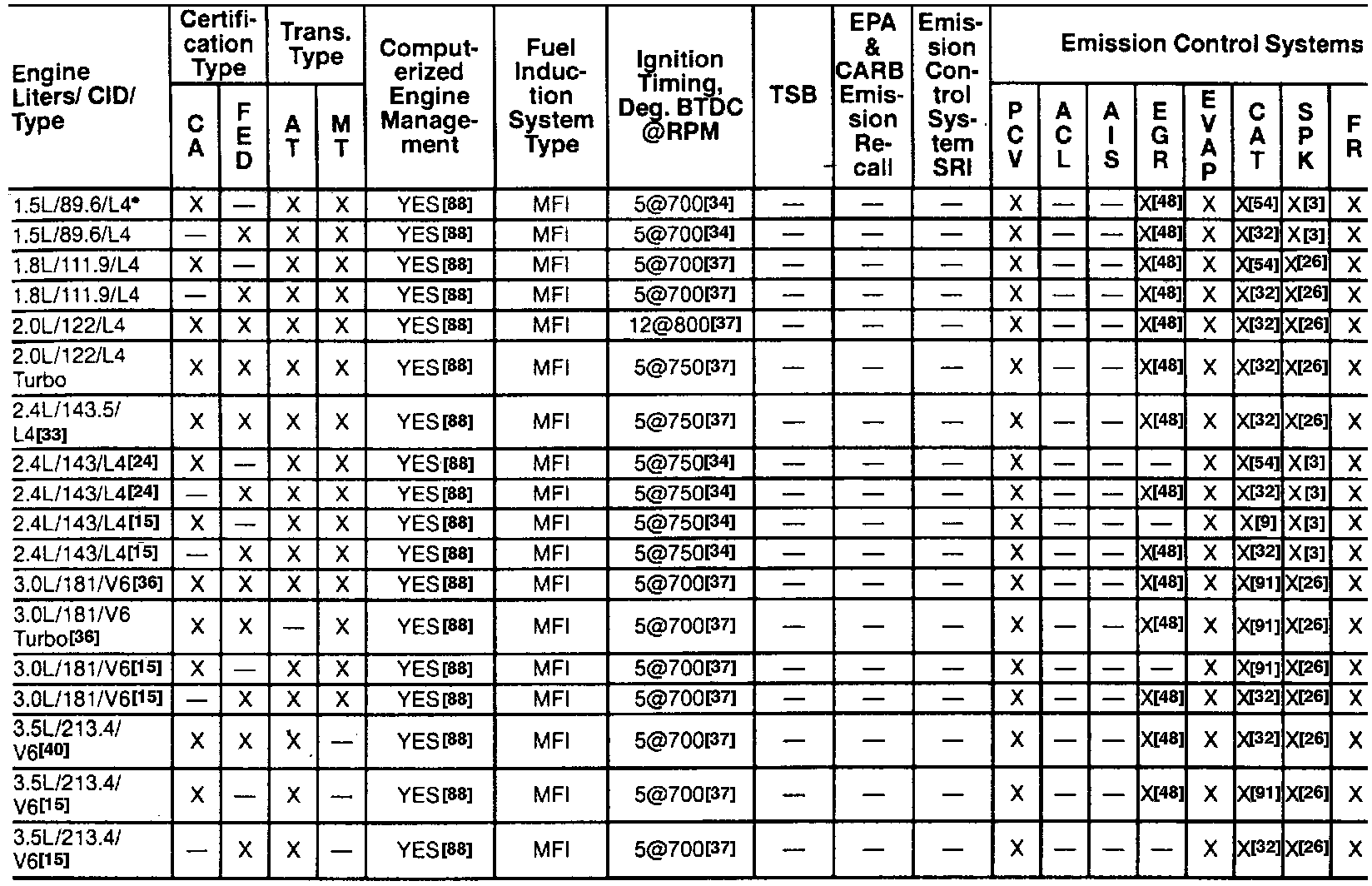

Computers and Control Systems: Application and ID

a��):

Footnotes:

X - Equipped

- Not Equipped

3 - DI (Distributor Ignition).

9 - Type, TWC; number of catalytic converters, 2.

15 - Montero.

24 - Galant.

26 - EI (Electronic Ignition).

32 - Type, TWC; number of catalytic converters, 1.

33 - Eclipse.

34 - W/jumper wire connected between ignition timing adjustment connector & ground.

36 - 3000 GT.

37 - Electronically controlled.

38 - Two O2S.

40 - Diamante.

48 - Electronically controlled EGR.

54 - Type, front & rear TWC; number of catalytic converters, 2.

56 - Four HO2S.

88 - OBD II.

91 - Type, front & rear WU & TWC; number of catalytic converters, 3.

92 - Certain 3000GT California models may require evaporative
