Toe-In

Measure wheel alignment with alignment equipment on a level surface.
The front suspension, steering system, and wheels should be serviced to normal condition prior to measurement of wheel alignment.
Standard value: (0 ± 3 mm (0 ± .12 inch) -3 to +3 mm (-.12 to +.12 inch)





NOTE:

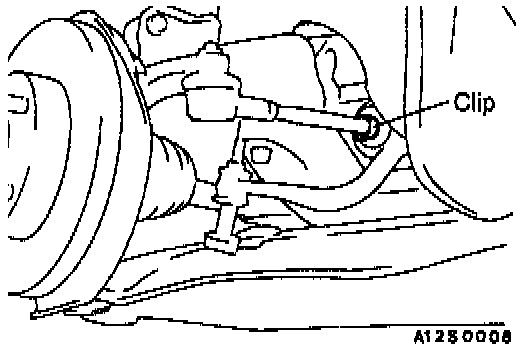

1. If the toe-in is not within the standard value, adjust the toe-in by undoing the clips and turning the left and right tie rod turnbuckles by the same amount (in opposite directions).
2. The toe will move out as the left turnbuckle is turned toward the front of the vehicle and the right turnbuckle is turned toward the rear of the vehicle.
For each one turn of the left and right tie rods, the toe-in will be adjusted by approximately 1° 05' (per wheel).
