Ground Locations

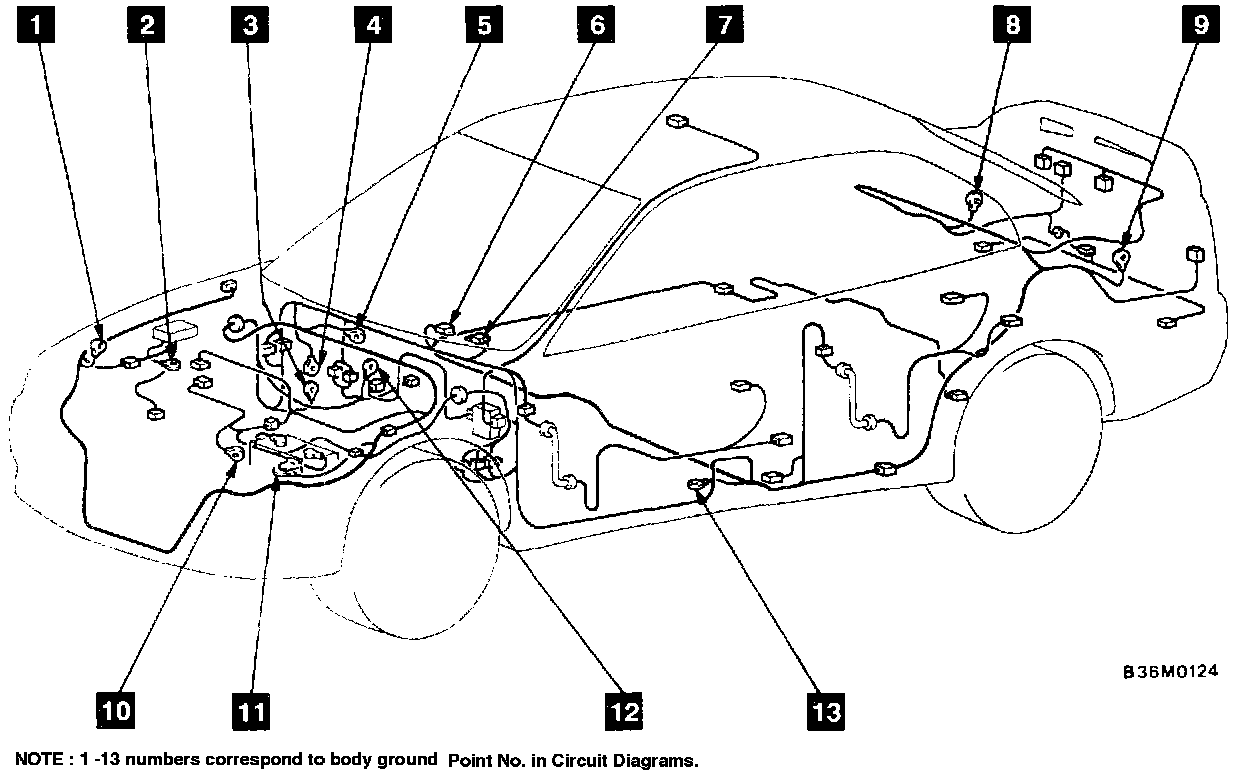

Groundingoverview:

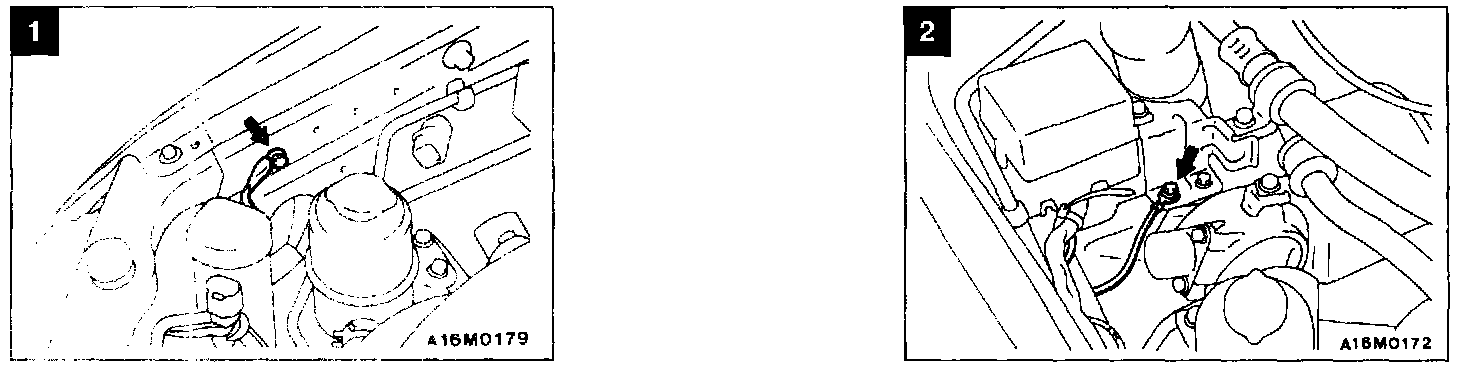

Location 1 & 2:

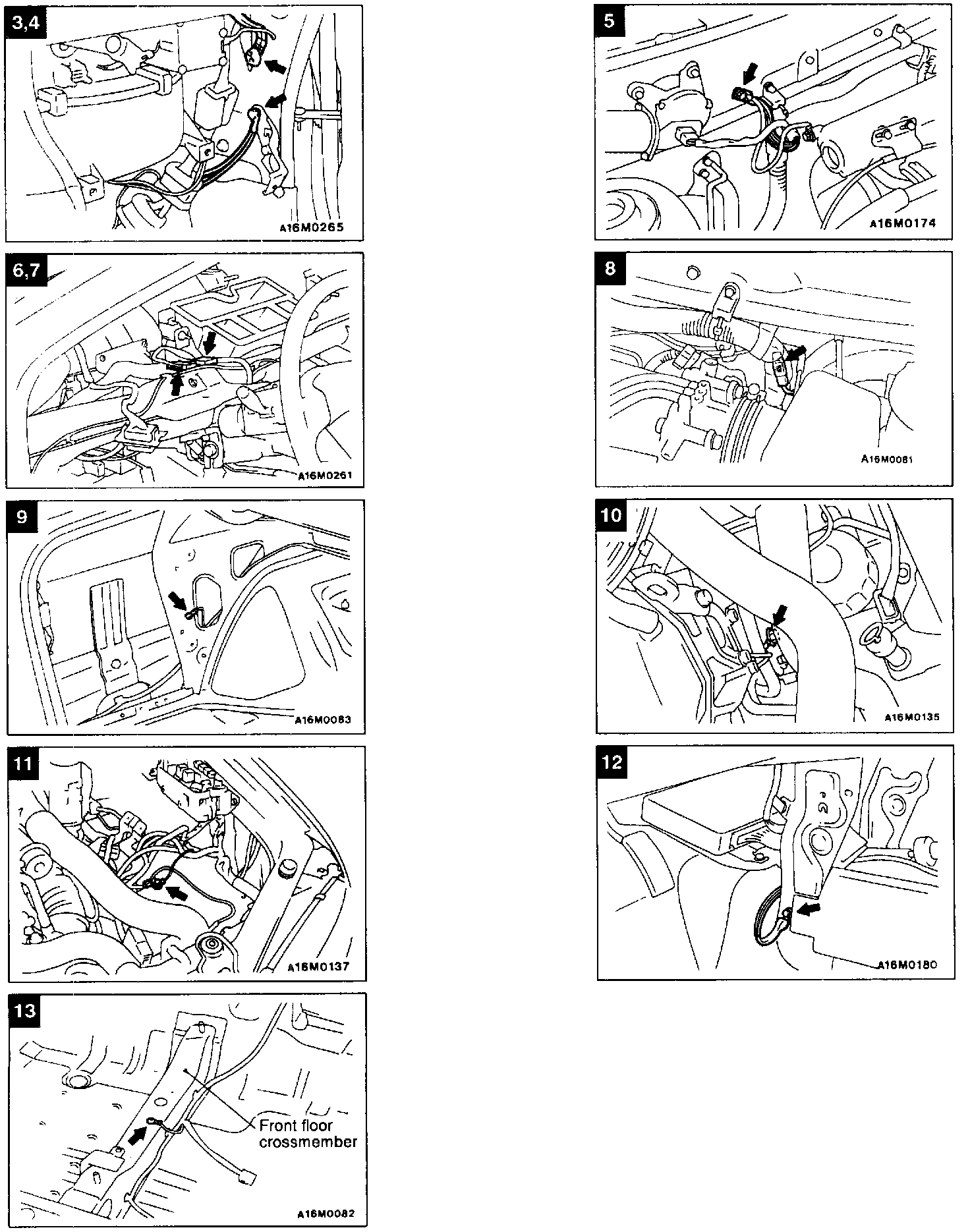

Grounds 3 - 13:

NOTE: Same ground numbers are used in the circuit diagrams.
