Condenser HVAC: Service and Repair

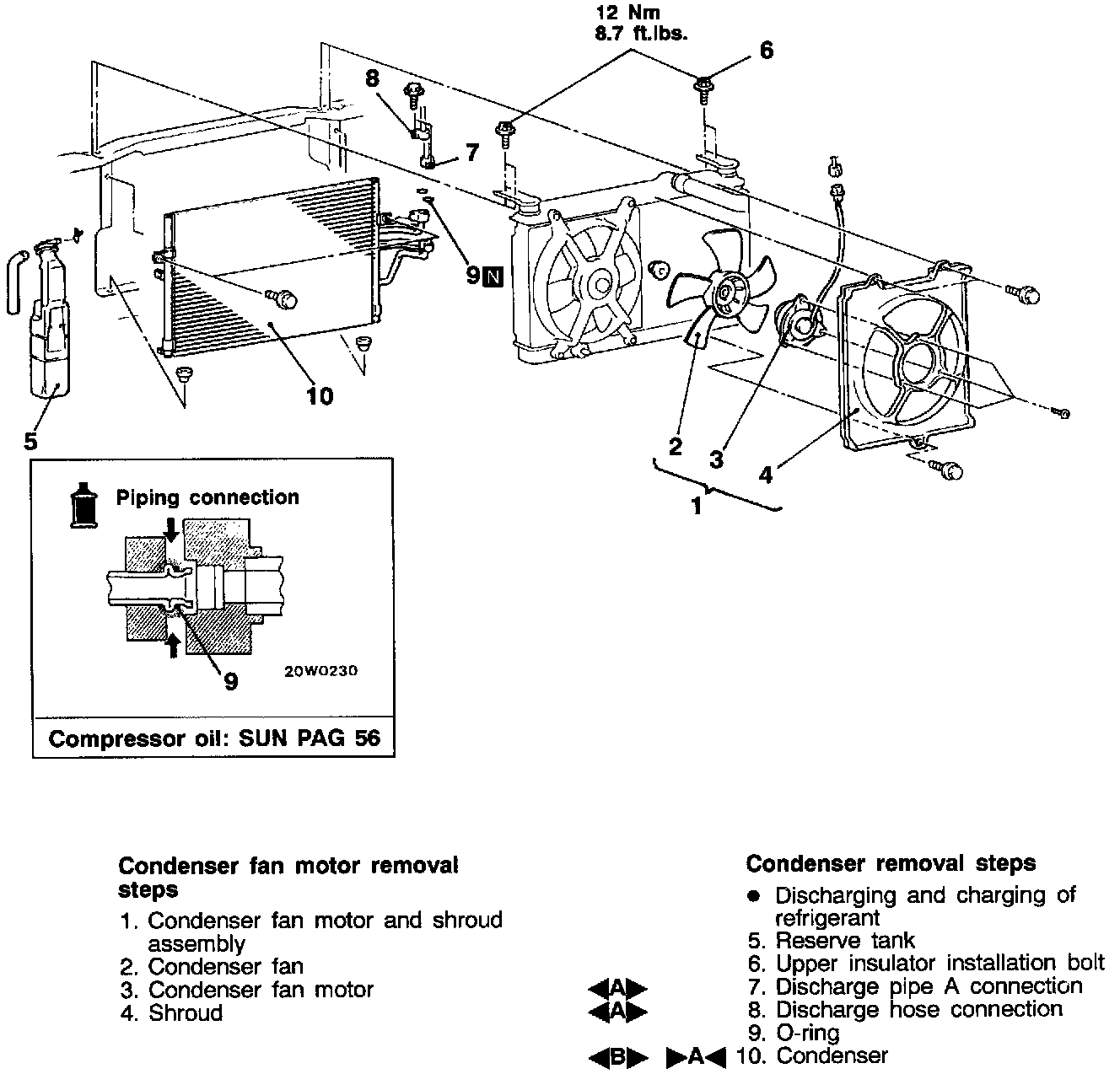

REMOVAL AND INSTALLATION
REMOVAL SERVICE POINTS
DISCHARGE PIPE "A" /DISCHARGE HOSE DISCONNECTION
Plug the disconnected pipe, hose and the condenser nipple not to let foreign matter get into them.
CAUTION: Seal the hoses completely, otherwise the compressor oil and receiver will absorb water vapor easily
CONDENSER REMOVAL

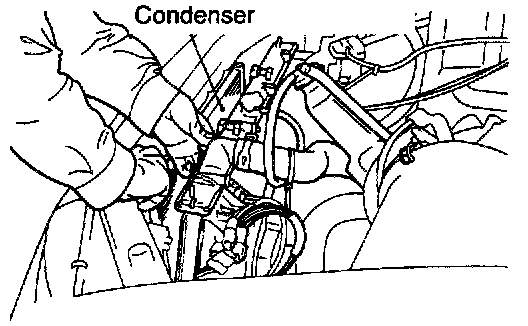

Move the radiator to the engine side and then lift up the condenser to remove it.
INSTALLATION SERVICE POINT
>A< CONDENSER INSTALLATION
When replacing the condenser, refill it with a specified amount of compressor oil and install it. (to the vehicle).
Compressor oil: SUN PAG 56
Quantity: 15 Cubic cm (0.5 fl.oz.)
INSPECTION
CONDENSER FAN MOTOR CHECK

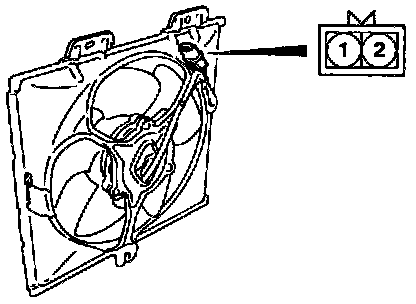

Check to be sure that the condenser fan motor operates when battery voltage is applied to terminal 1 and terminal 2 is grounded.
