Compressor Clutch: Testing and Inspection

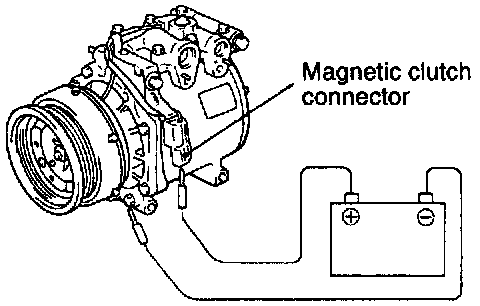

1. Disconnect the connector (1P) to the magnetic clutch.
2. Connect battery (+) voltage directly to the connector for the magnetic clutch.
3. If the magnetic clutch is normal, there will be "click." If the pulley and armature do not make contact (click), there is a malfunction.
