Vacuum Pump: Testing and Inspection

AUTO-CRUISE VACUUM PUMP

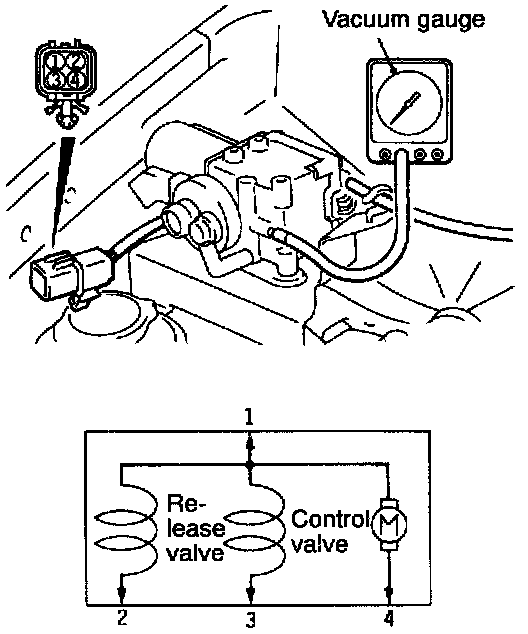

1. Disconnect the vacuum hose from the auto-cruise vacuum pump and connect a vacuum gauge to the vacuum pump.
2. Disconnect the vacuum pump connection

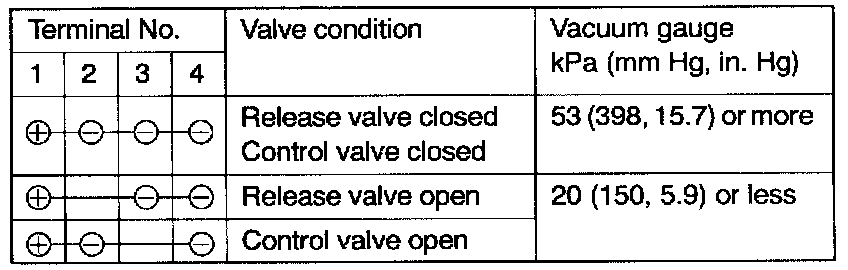

3. Check that the reading on the vacuum gauge matches the values in the table when the battery is connected to each connector terminal.
