Brake Fluid Level Sensor/Switch: Testing and Inspection
SENSOR CHECK

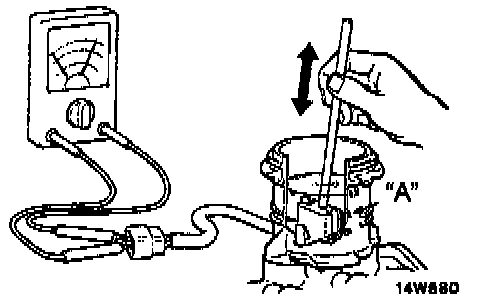

The brake fluid level sensor is in good condition if there is no continuity when the float surface is above "A" and if there is continuity when the float surface is below "A."
SENSOR CHECK
The brake fluid level sensor is in good condition if there is no continuity when the float surface is above "A" and if there is continuity when the float surface is below "A."
