Rotor/Disc Run-Out Check

RUN-OUT CHECK

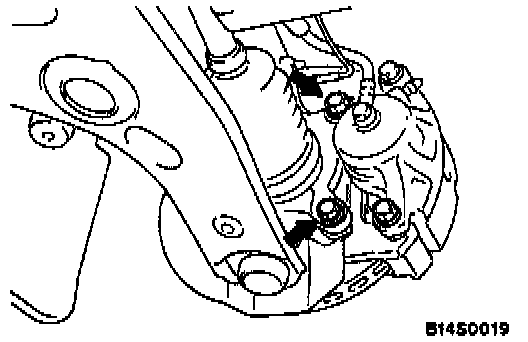

1. Remove the caliper support bolts, then raise the caliper assembly upward and secure by using wire.
2. Inspect the disc surface for grooves, cracks, and rust. Clean the disc thoroughly and remove all rust.





3. Place a dial gauge approximately 5 mm (0.2 inch) from the outer circumference of the brake disc, and measure the runout of the disc. The limit is 0.06 mm (0.0024 inch)

NOTE: Tighten the nuts in order to secure the disc to the hub.
