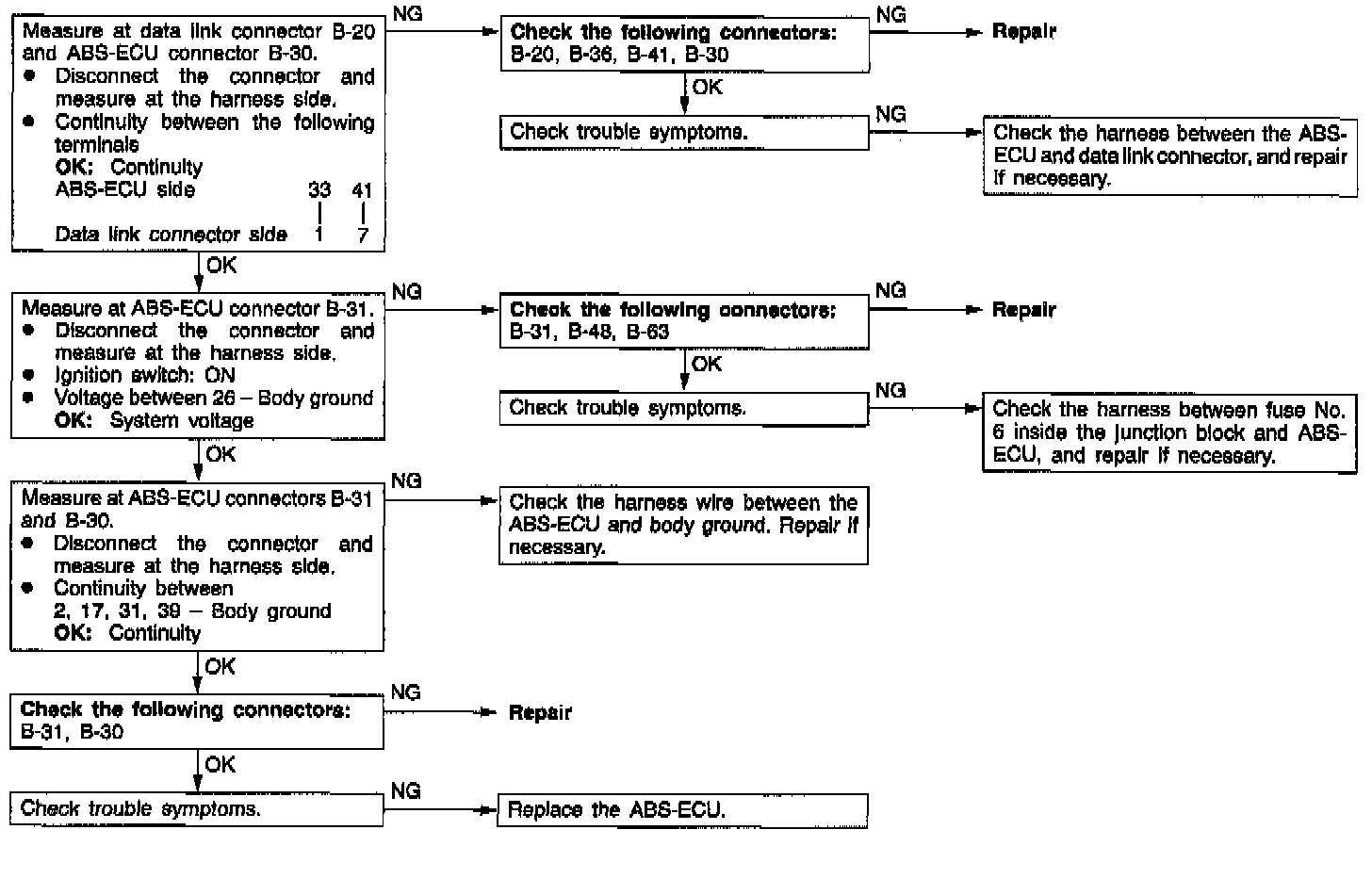

2: Communication W/Scan Tool is Not Possible (ABS)

COMMUNICATION WITH SCAN TOOL (ABS ONLY) IS NOT POSSIBLE
When communication with the scan tool is not possible, the cause is probably an open circuit in the ABS-ECU power circuit or an open circuit in the diagnostic output circuit.

Probable cause:
- Blown fuse.
- Malfunction of wiring harness or connector.
- Malfunction of ABS-ECU.
