Actuator Testing and Reference Tables

NOTE:

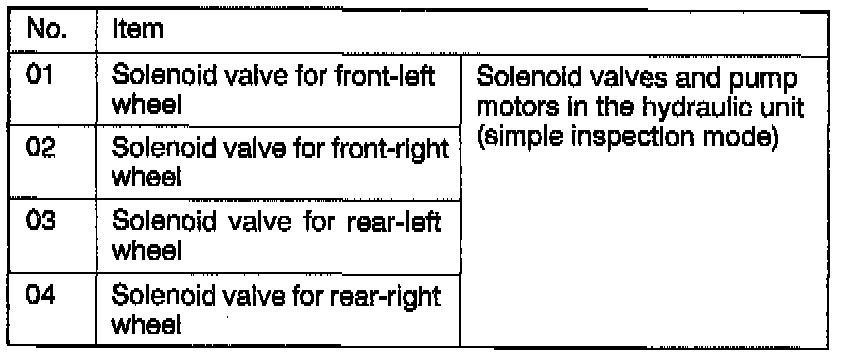

- The scan tool activates the following actuators for testing:
- If the ABS-ECU runs down, actuator testing cannot be carried out.
- Actuator testing is only possible when the vehicle is stationary. If the vehicle speed during actuator testing exceeds 10 km/h (6 MPH), forced actuation will be canceled.
- During the actuator test, the ABS warning light will illuminate and the anti-lock control will be cancelled.
