Ignition Lock Cable: Service and Repair

REMOVAL

CAUTION: Supplemental Restraint System (SRS): Be careful not to subject the Air Bag Control Unit (SRS-ECU) to any shocks during removal and installation of the key interlock cable and shift lock cable.

1. Remove front floor console.

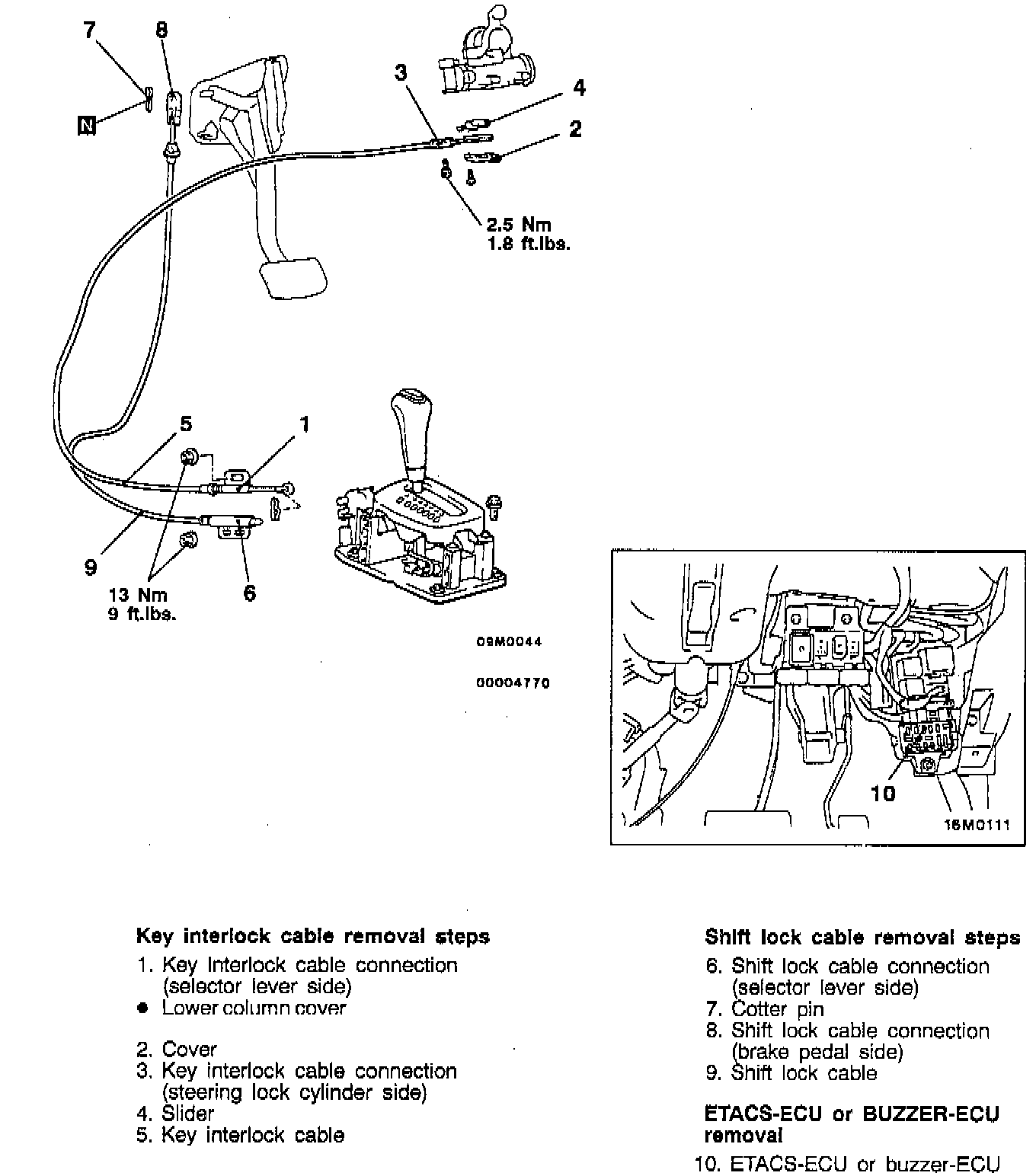

2. Follow removal steps outlined in illustration.

INSPECTION
Check the cable assembly for function and for damage.

INSTALLATION
Installation in reverse order as removal.

NOTE: Installation service points as follows:





A. Shift lock cable (selector lever side) installation. (6)
1. Place the selector lever in position "P".
2. Fasten the shift lock cable at the position where the end of the shift lock cable is positioned above the red marking.
B. Key interlock cable (steering lock cylinder side) installation. (3)
Turn the ignition key to the "LOCK" position and install the key interlock cable.





C. Key interlock cable (selector lever side) installation. (1)
1. Install the key interlock cable on the lock cam.
2. Install the spring and washer of the key interlock cable as shown.
3. While lightly pushing the cable coupling portion of the lock cam in the direction A, tighten the nut to fasten the key interlock cable.

NOTE: Operational steps after installation as follows:
- Install front floor console.
