Replacement

Generator - Removal And Installation:

Post-Installation Operation
- Adjustment of Drive Belt Tension

Removal

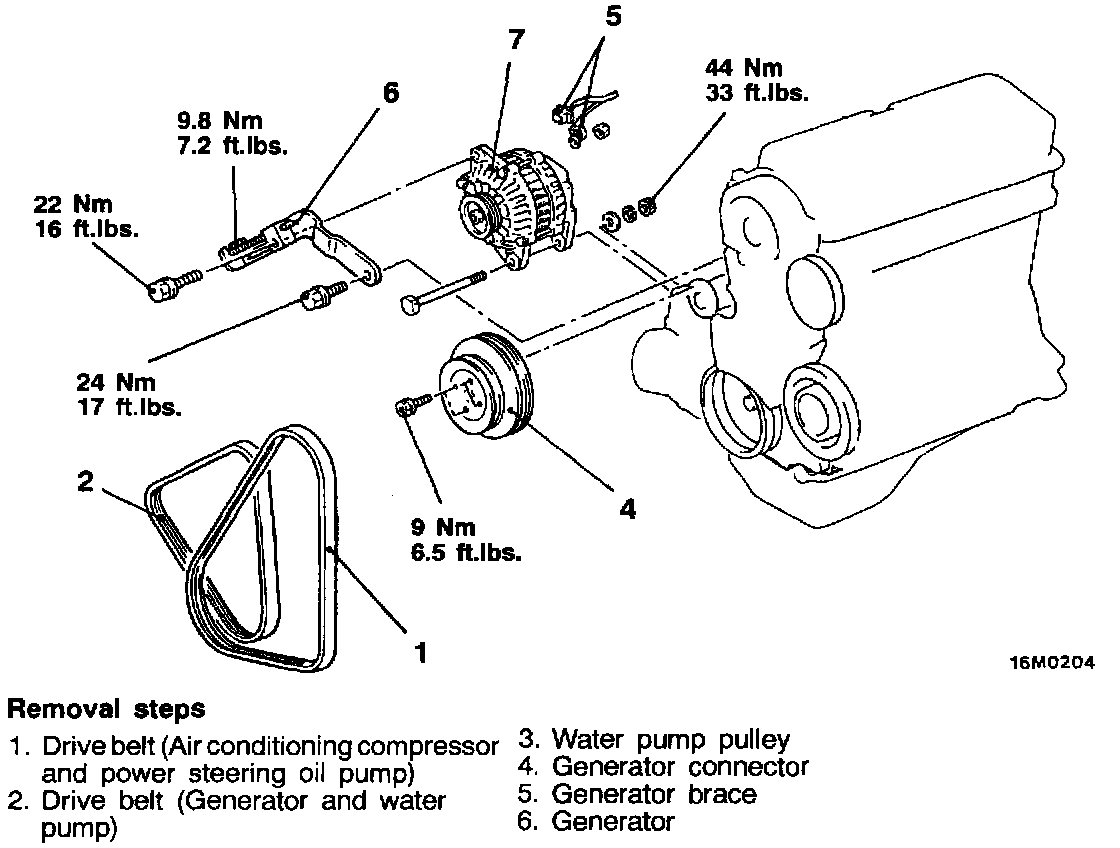

To remove follow the steps listed in the image.

Installation
To install reverse the steps listed in the image.
