Power Steering

TIGHTENING SPECIFICATIONS

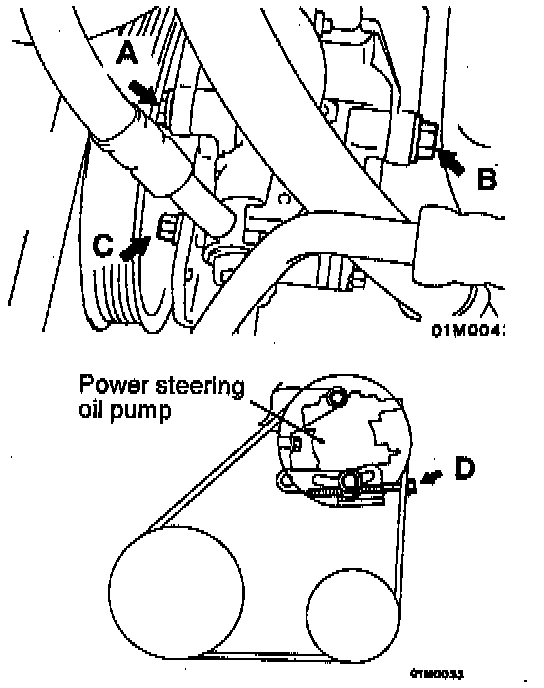

Bolts A And B; 39 Nm (29 ft. lbs.)
Bolt C: 49 Nm (36 ft. lbs.)

DIMENSIONS
When Checked:
Tension: 392 - 588 N (88 - 132 lbs.)
Deflection: 9.6 - 12.4 mm (0.38 - 0.49 inch)
When A Used Belt Is Installed:
Tension: 441 - 539 N (99 - 121 lbs.)
Deflection: 10.2 - 11.6 mm (0.40 - 0.46 inch)
When A New Belt Is Installed:
Tension: 637 - 833 N (143 - 187 lbs.)
Deflection: 7.2 - 9.0 mm (0.28 - 0.36 inch)
