Terminal Resistance & Continuity Check

1. Turn the ignition switch "OFF" and disconnect the ABS-ECU connectors before checking resistance and continuity.

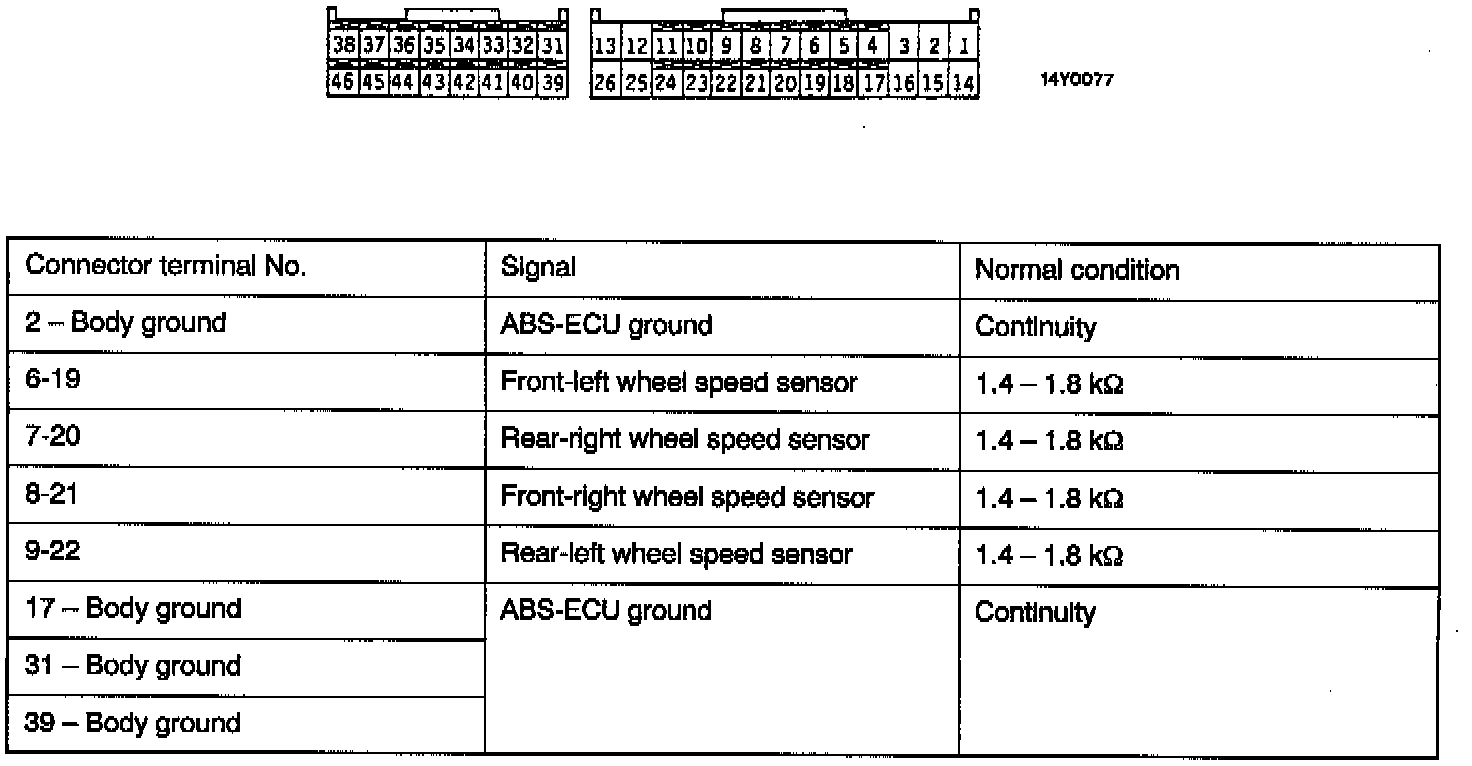

2. Check between the terminals indicated in the table.
3. The terminal layouts are shown in the illustration.
