Ignition System: Service and Repair

Ignition System - Removal And Installation:

Removal

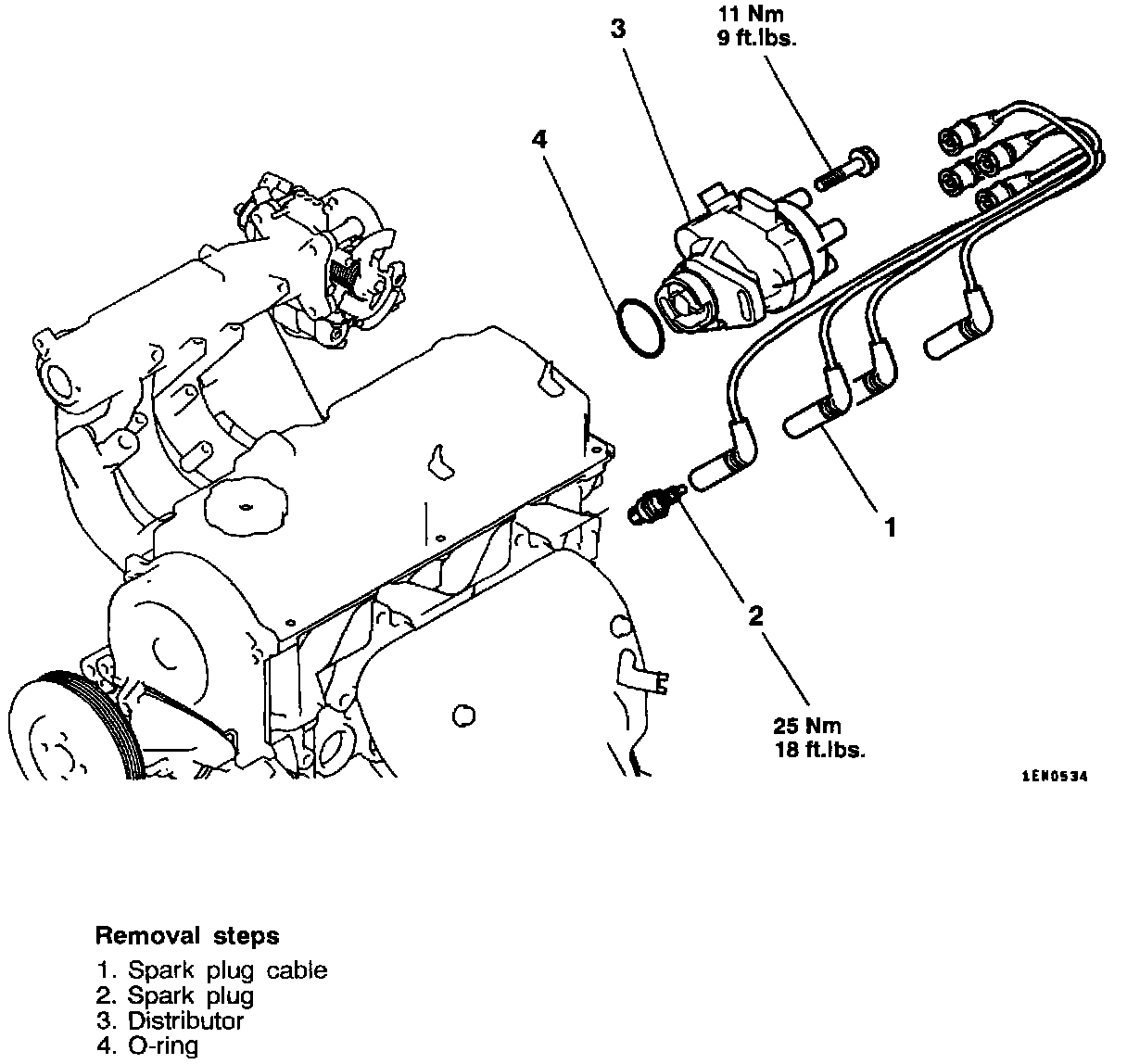

To remove follow the steps listed in the image.

Installation
To install reverse the steps listed in the image and note the following.

Distributor Installation:

Step 3: Distributor Installation
1. Turn the crankshaft so that the No. 1 cylinder is at top dead center.

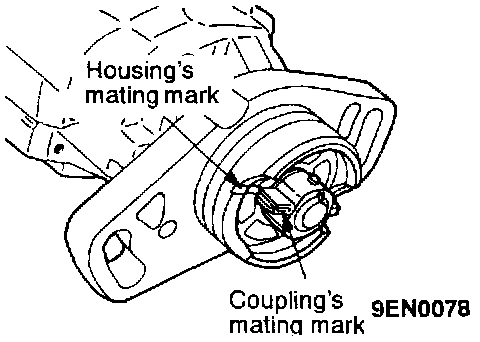

2. Installation the distributor to the engine while aligning the distributor housing and coupling mating marks.
