Mirage Coupe DE L4-1468cc 1.5L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
System Diagram

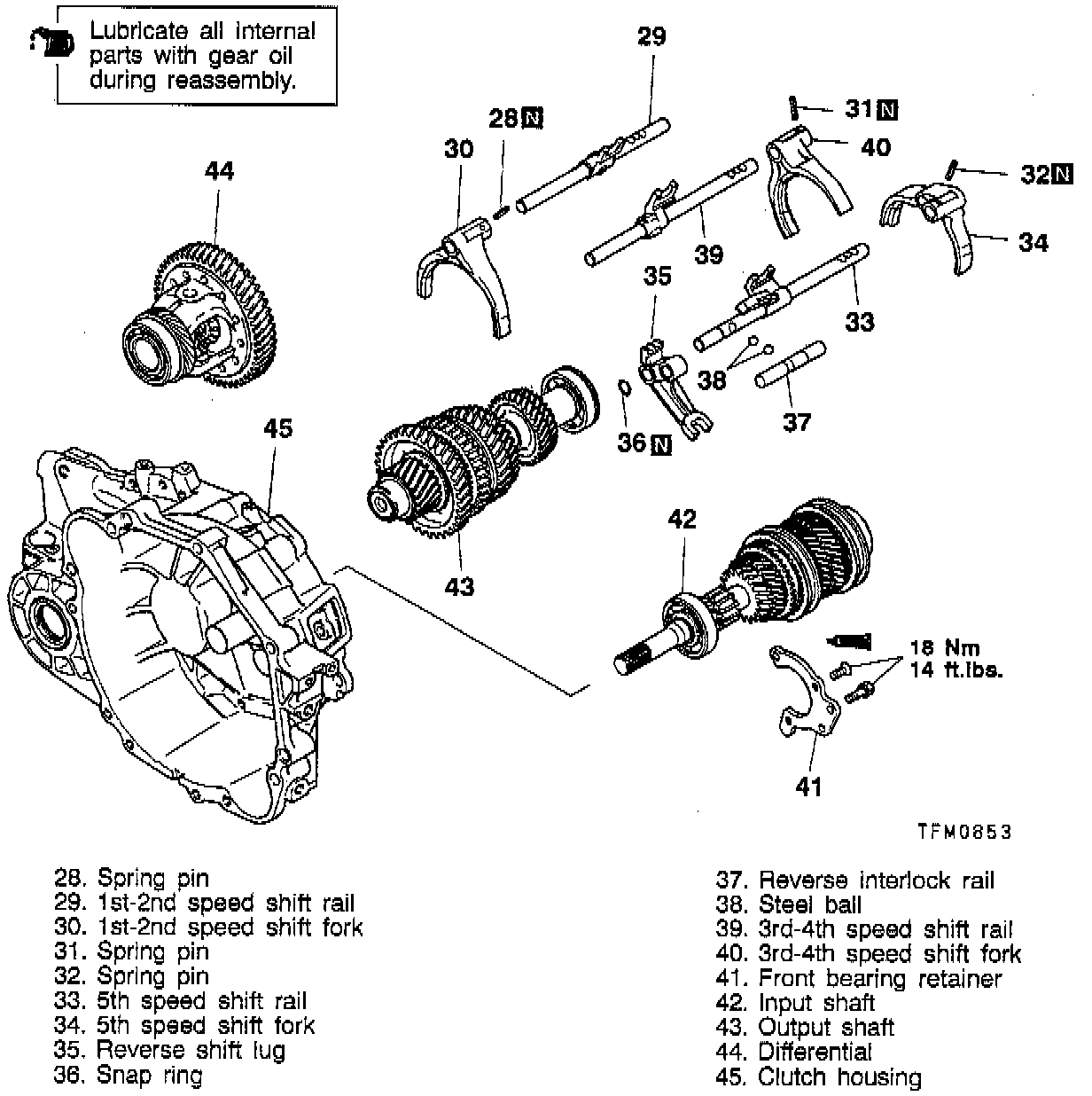

Part 1 Of 3:

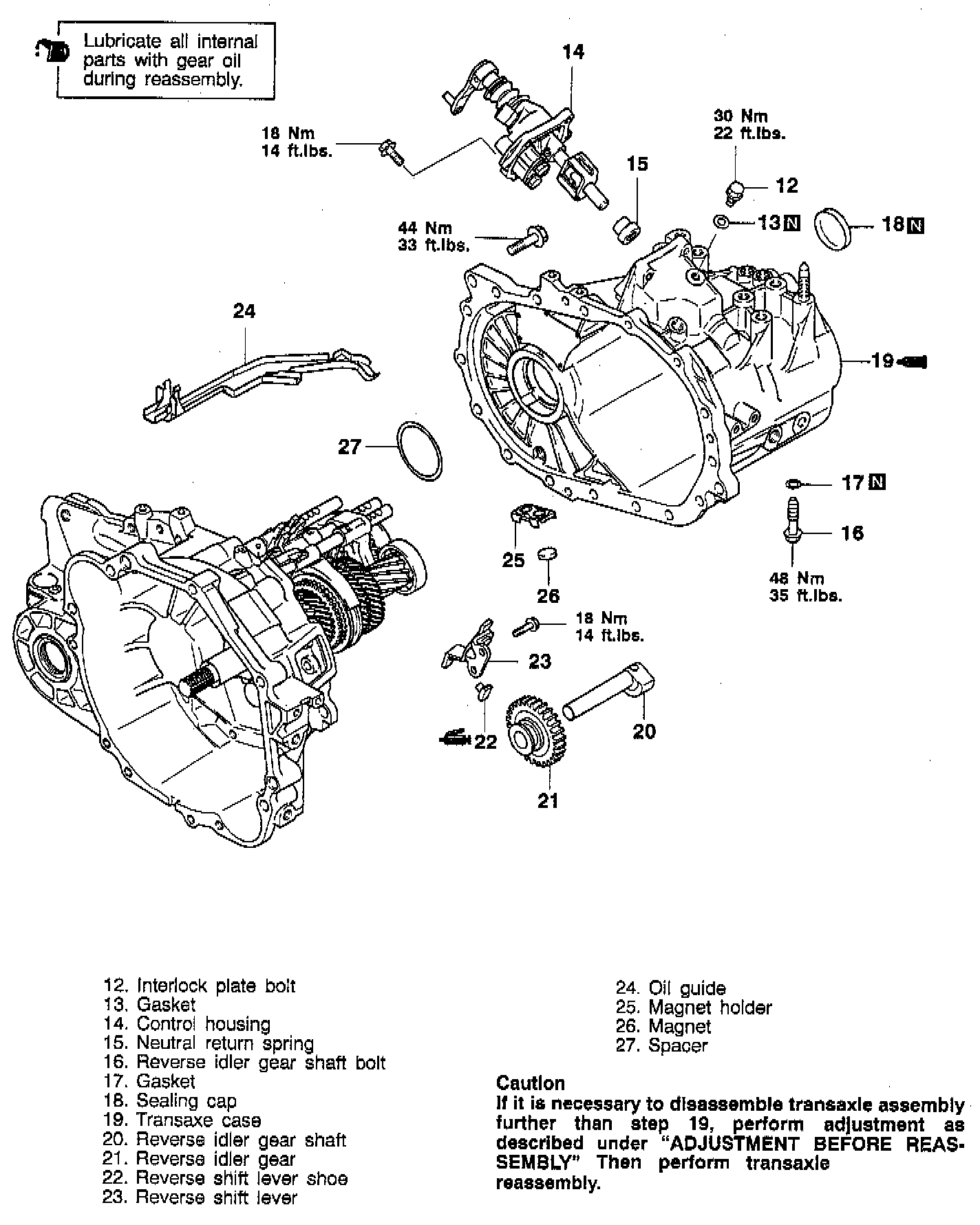

Part 2 Of 3:

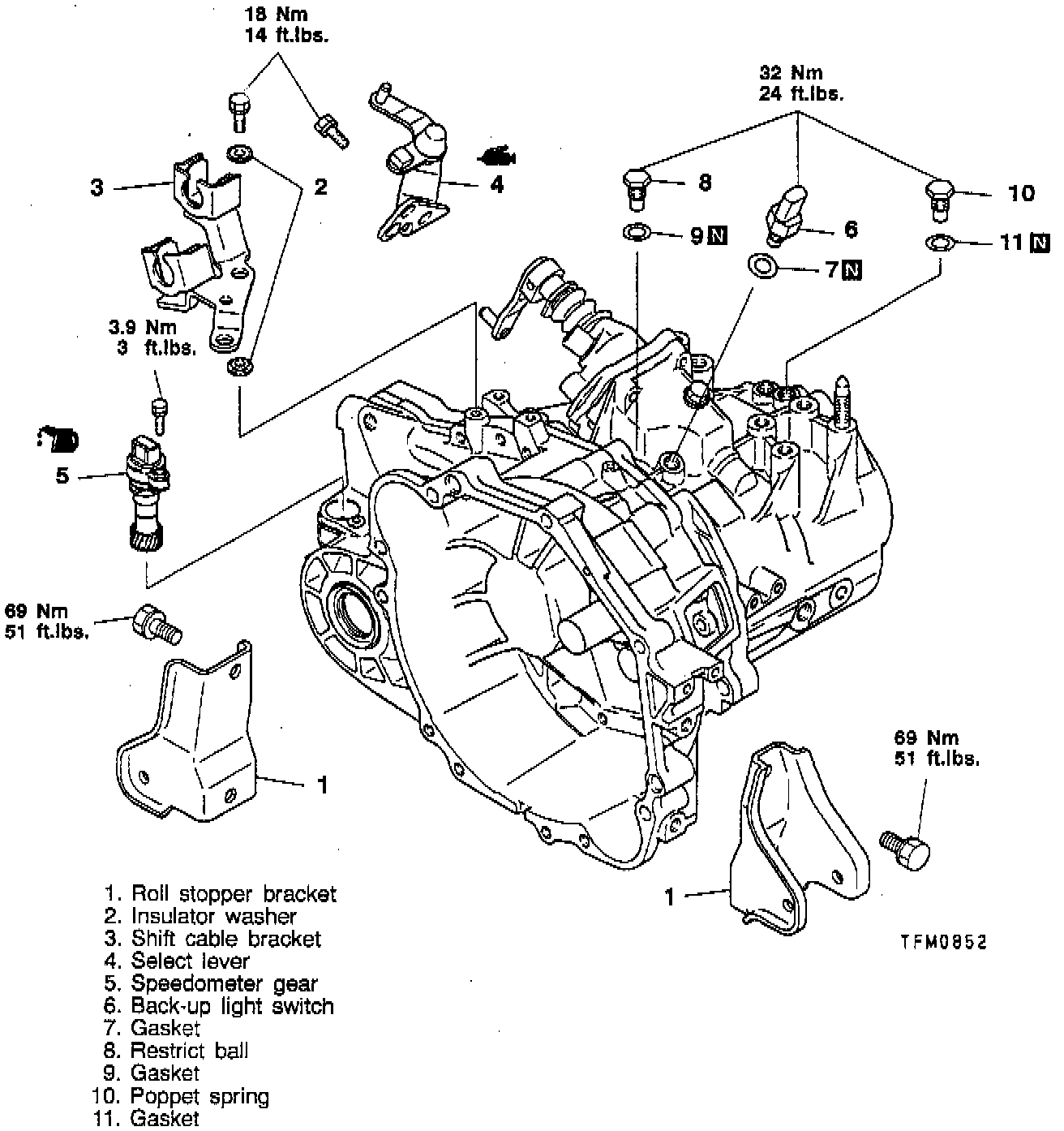

Part 3 Of 3:
