Home >> Mitsubishi >> 1997 >> Galant LS L4-2350cc 2.4L SOHC MFI >> Repair and Diagnosis >> Windows and Glass >> Heated Glass Element >> Heated Glass Element Switch >> Testing and Inspection

Heated Glass Element Switch: Testing and Inspection

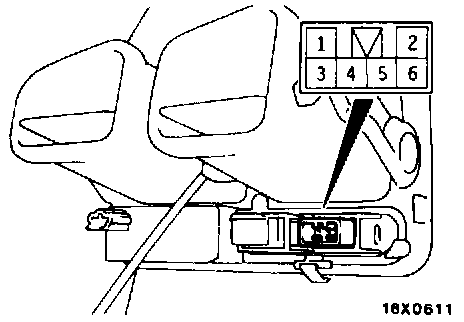

Inspection - Defogger Switch Continuity Check:

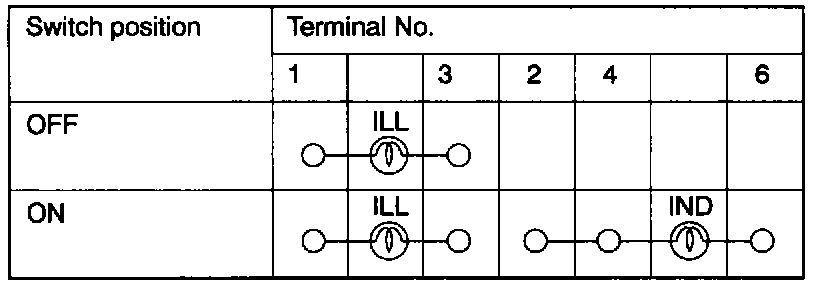

Inspection Chart - Defogger Switch Continuity Check:
