Checking Switches

In a circuit diagram, a switch is represented by a symbol and in the idle state.

Checking Switches:

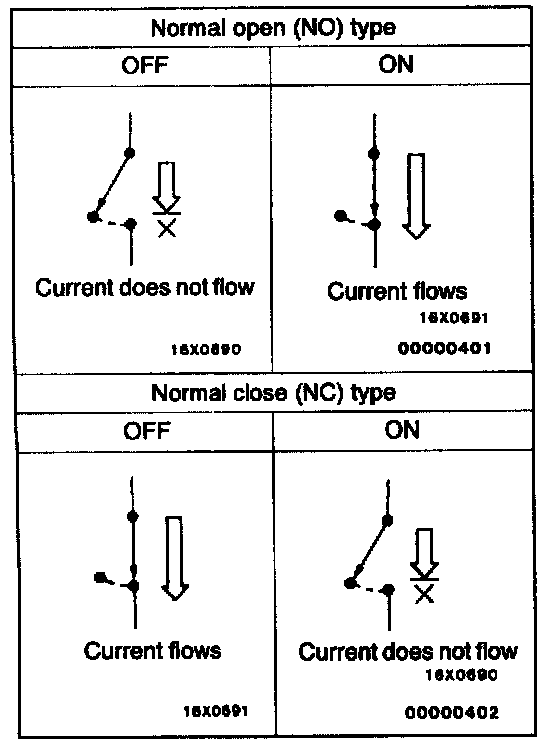

1. Normal Open Or Normal Close Switch
Switches are classified into those which make the circuit open and those which make the circuit closed when OFF.

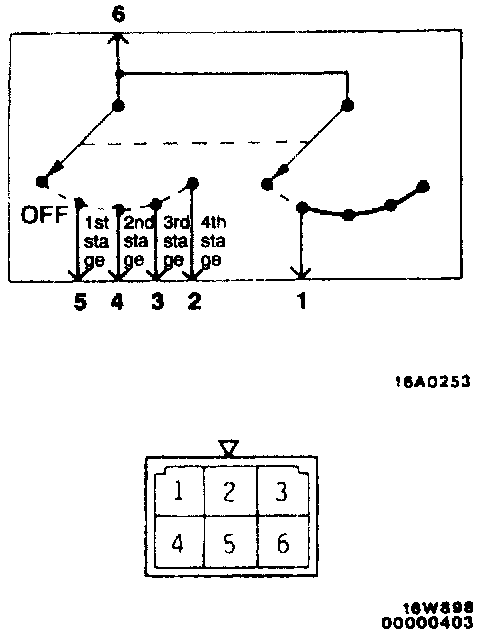

Switch Connection:

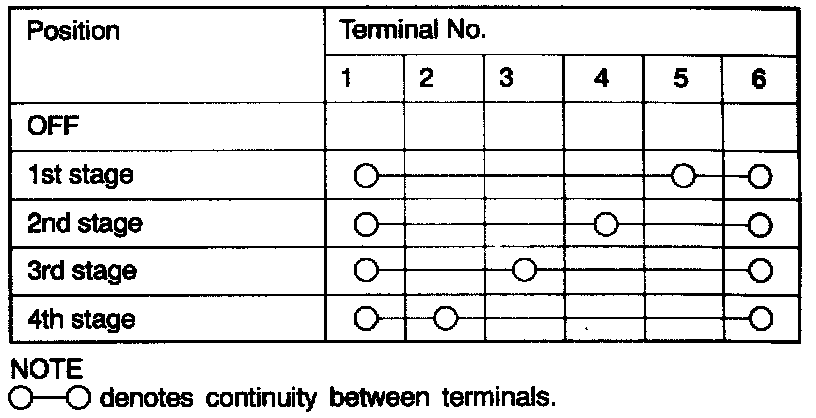

Switch Connection Chart:

2. Switch Connection
The continuity between terminals at each position is as indicated in the table.
