A/T - Gear Selection Noise, Acceleration Clunk/Vibration
NO.: TSB-97-32-001DATE: March, 1997
MODEL: 1995-97 Galant
SUBJECT:
NOISE DURING GEAR SELECTION OR VIBRATION ON ACCELERATION (UPDATED A/T MOUNT RUBBER STOPPERS)
PURPOSE
This bulletin contains procedures for correcting a condition where the customer may hear a 'ticking' sound during automatic transmission gear selection while the vehicle is stopped and notice a vibration and 'clunking' during forward acceleration from a stop.
BACKGROUND
SYMPTOM AND CAUSE
This ticking noise is usually heard when shifting from N to D, N to R, R to D, or D to R when the vehicle is not moving. The clunking sound accompanied by a vibration occurs when accelerating forward from a stop and during first to second gear upshift. The noise and/or vibration is caused by rotation of the rubber stoppers on the automatic transaxle mount allowing the engine to move around excessively and possibly contact other components.
REMEDY
New automatic transaxle mount rubber stoppers are available which will not rotate. If you encounter this ticking noise and/or vibration on an affected vehicle during gear selection or acceleration, replace the automatic transaxle rubber stoppers with the new style parts.
AFFECTED VEHICLES
1995-96 Galant equipped with automatic transmission
1997 Galant (produced before 12/1/96) equipped with automatic transmission
PROCEDURE
For additional information refer to section 32 in the Volume 1 Service Manual.
1. Remove the air cleaner assembly.
2. Jack up the transaxle so there is no weight on the transaxle mount bracket insulator.

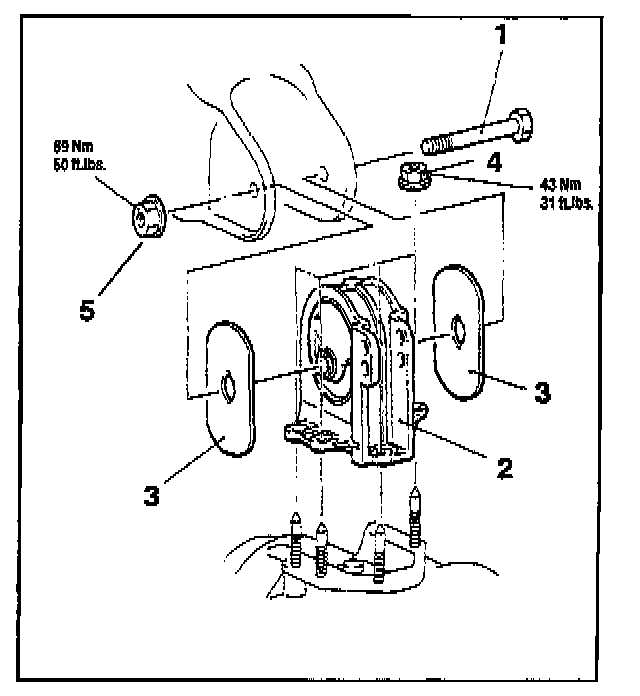

3. Remove the transaxle mount insulator mounting bolt (1) and nut (5).
4. Remove the transaxle mount bracket nuts (4).
5. Lower the transaxle.
6. Lift out the transaxle mount bracket (2) then remove the transaxle mount rubber stoppers (3).

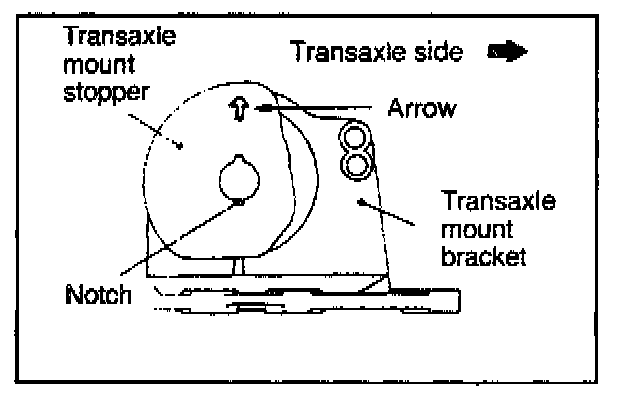

7. Align the notches on the rubber stopper with the transaxle mount bracket as shown, making sure the arrow on the stopper is facing upward. Install the stoppers.
8. Reinstall the transaxle mounting bracket. Torque the bracket mounting nuts to 43Nm (31 ft-lbs).
9. Lift the transaxle with the jack.
10. Reinstall the transaxle mount insulator mounting bolt and nut. Torque to 69Nm (50 ft-lbs).
11. Lower and remove the jack from the transaxle, then reinstall the air cleaner assembly.

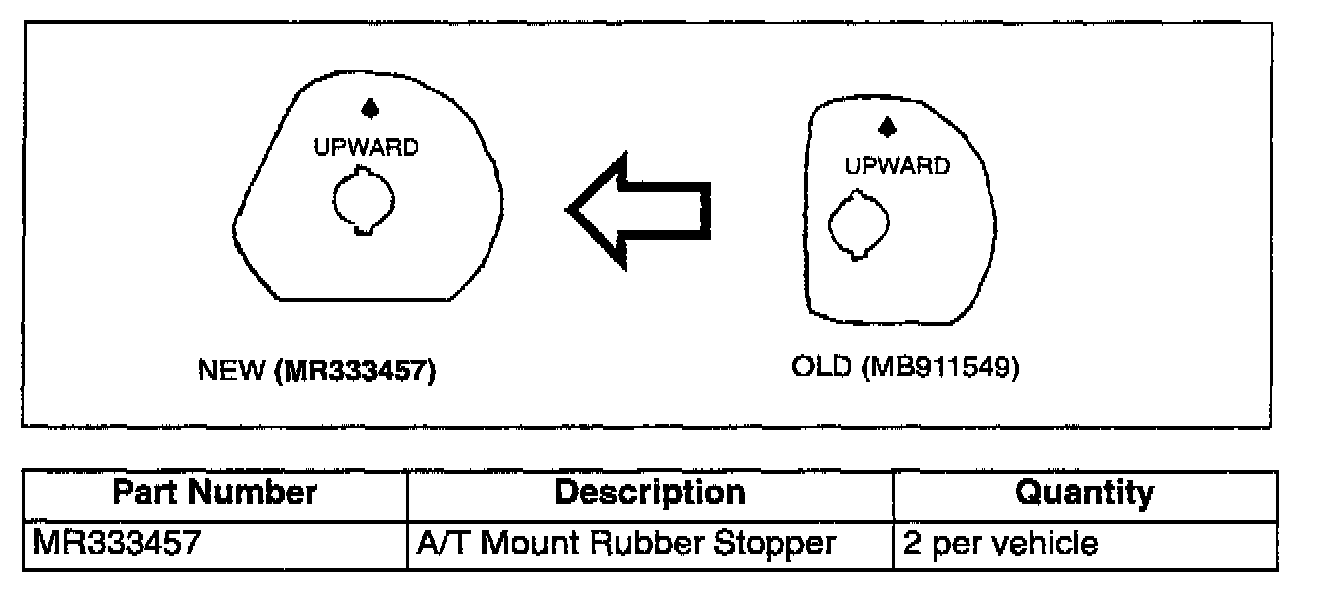

PARTS INFORMATION
WARRANTY INFORMATION
R & R A/T mount (to replace rubber stoppers)
Nature Code: 80F Cause Code: 450
Labor Operation No.32122310 Time Allowance: 1.7 hrs.
Warranty Coverage: Powertrain - 5 years/60,000 miles.
Special Warranty Information: Normal warranty procedures apply.
