Removal and Replacement

Pre-removal and Post-Installation Operation
Air Cleaner Removal and Installation

Starter Motor - Removal And Installation:




Removal

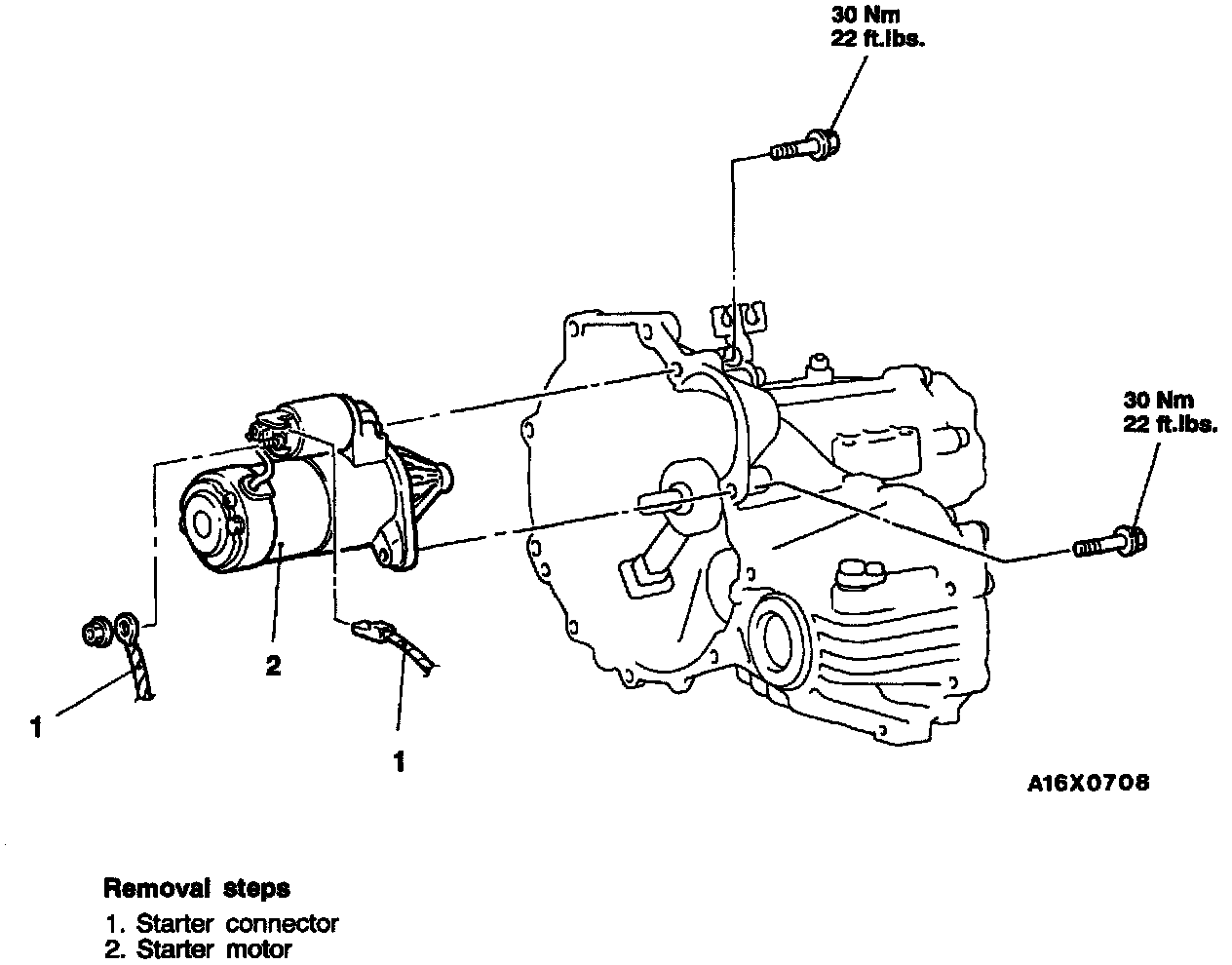

To remove follow the steps listed in the image.

Installation
To install reverse the steps listed in the image.
