Replacement

Pre-removal Operation
Under Cover Side Panel Removal (Refer to Under Cover.)

Post-Installation Operation
1. Driver Belt Tension Adjustment
2. Under Cover Side Panel Installation

Generator - Removal And Installation:

Removal

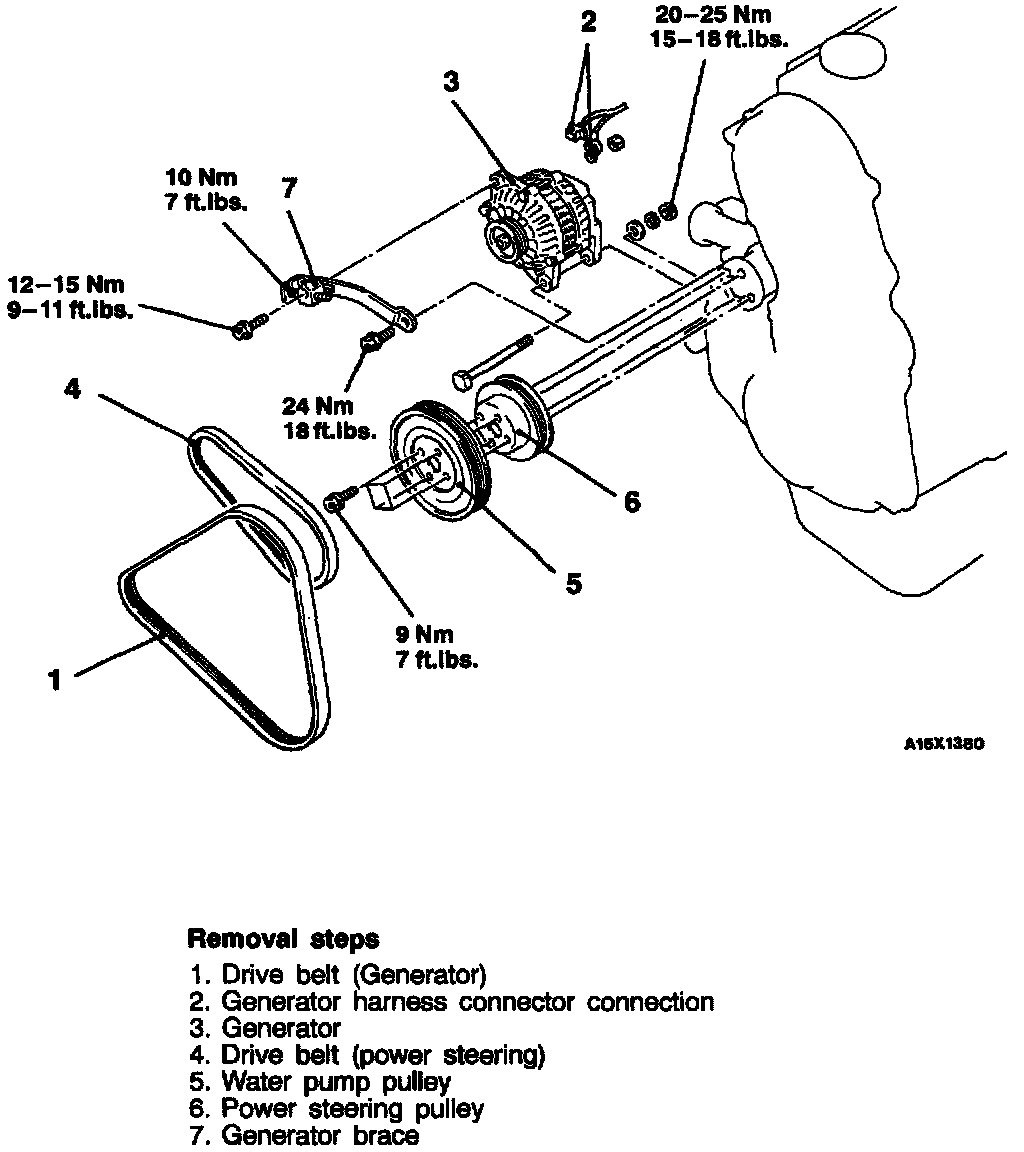

To remove follow the steps listed in the image and note the following.

Drive Belt Removal:

Step 1: Drive Belt (Generator) Removal
1. Loosen the pivot bolt nut and the lock bolt as shown in the illustration.
2. Loosen the adjusting bolt and lift it upwards.
3. Push the generator towards the engine to remove the drive belt.

Generator Removal:

Step 3: Generator Removal
Take out the generator from the underside of the vehicle.

NOTE: Remove the oil pressure switch terminal first so that the terminal does not get broken.

Installation
To install reverse the steps listed in the image.
