Heated Glass Element Relay: Testing and Inspection

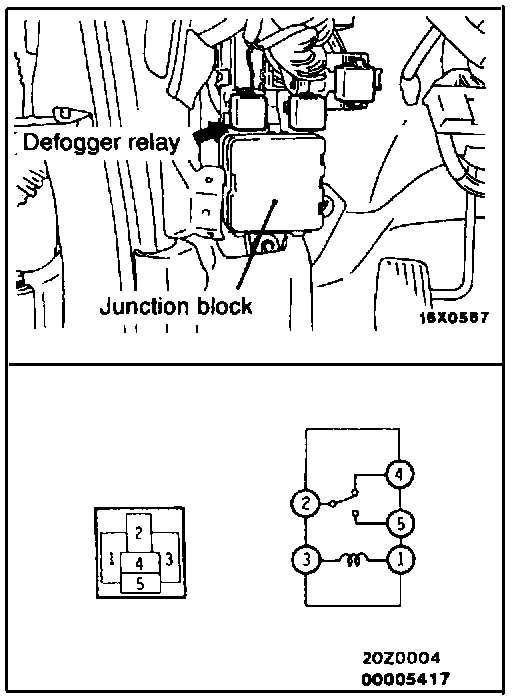

Inspection - Defogger Relay Continuity Check:

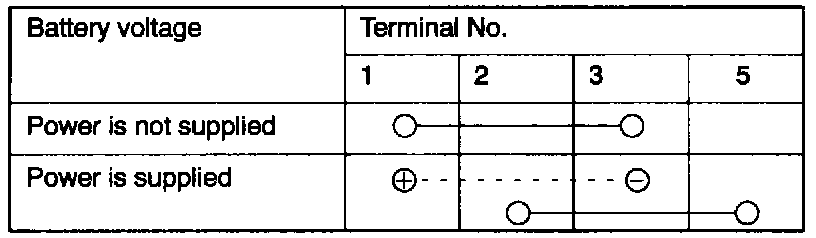

Inspection Chart - Defogger Relay Continuity Check:
