Electrical Diagrams

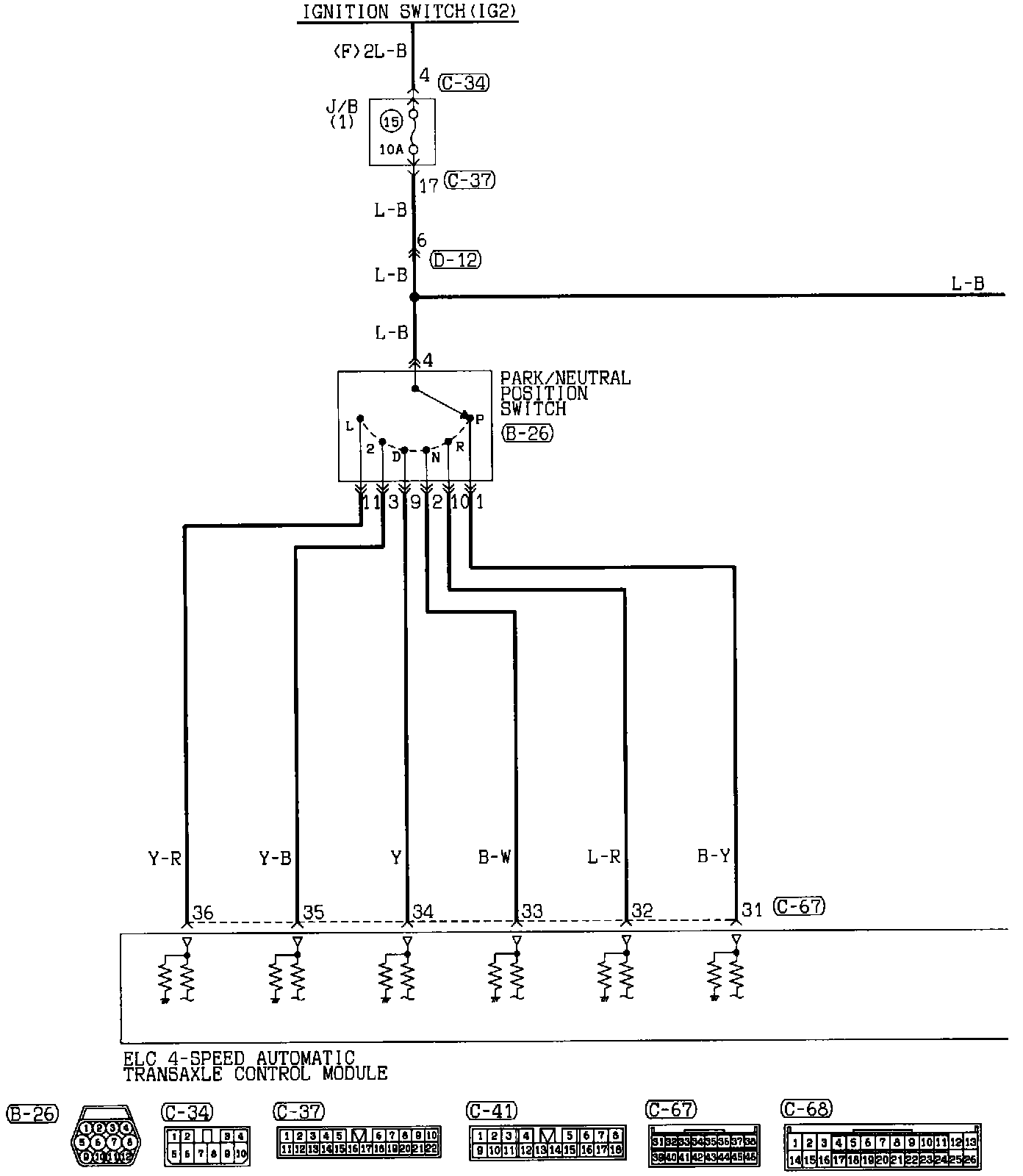

ELC 4-Speed Automatic Transaxle (Part 1 Of 7):

Park/Neutral Position Switch
Multi-purpose fuse 15
Transaxle Control Module

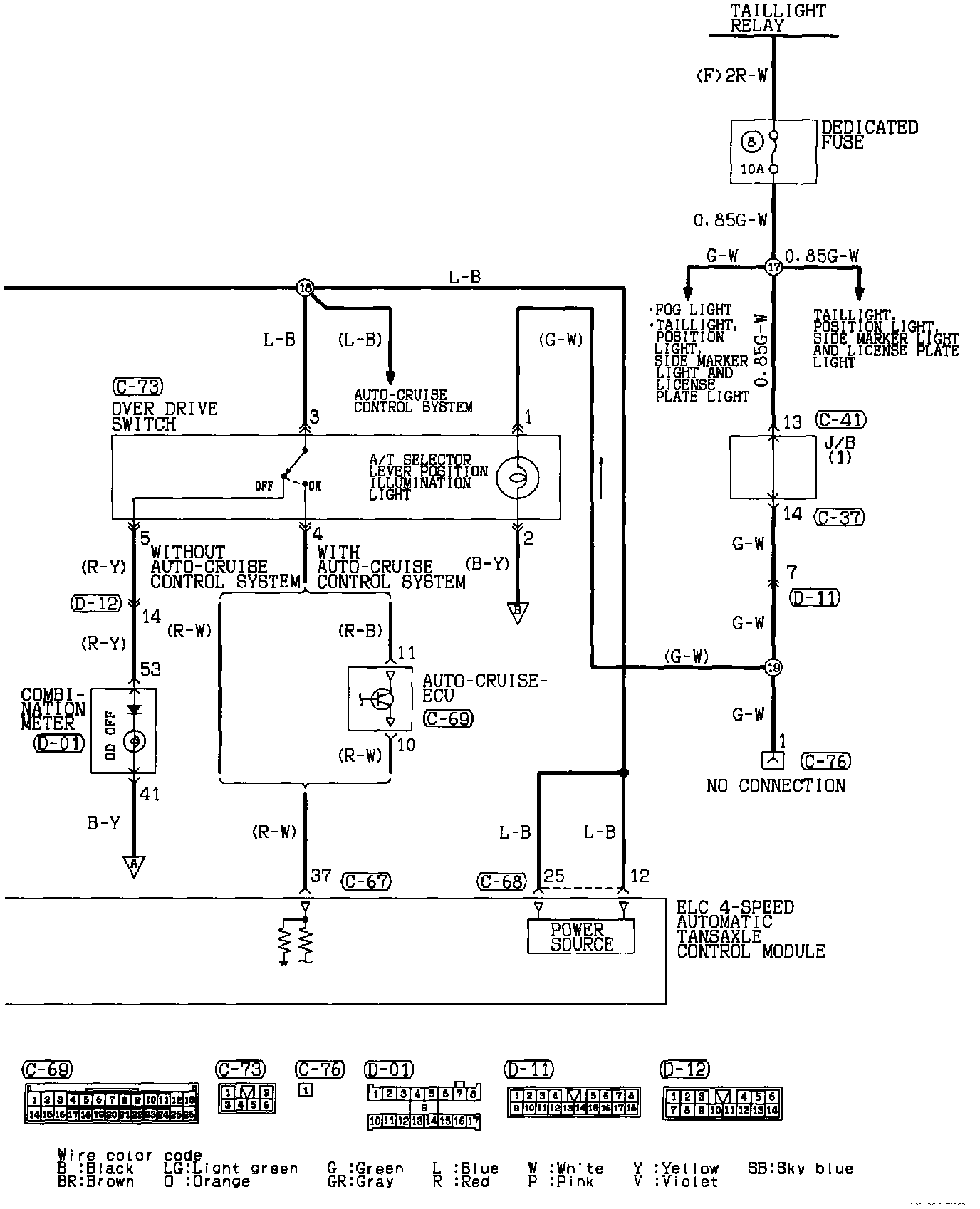

ELC 4-Speed Automatic Transaxle (Part 2 Of 7):

Auto-Cruise ECU
Combination Meter
Dedicated Fuse 8
Overdrive Switch
Transaxle Control Module

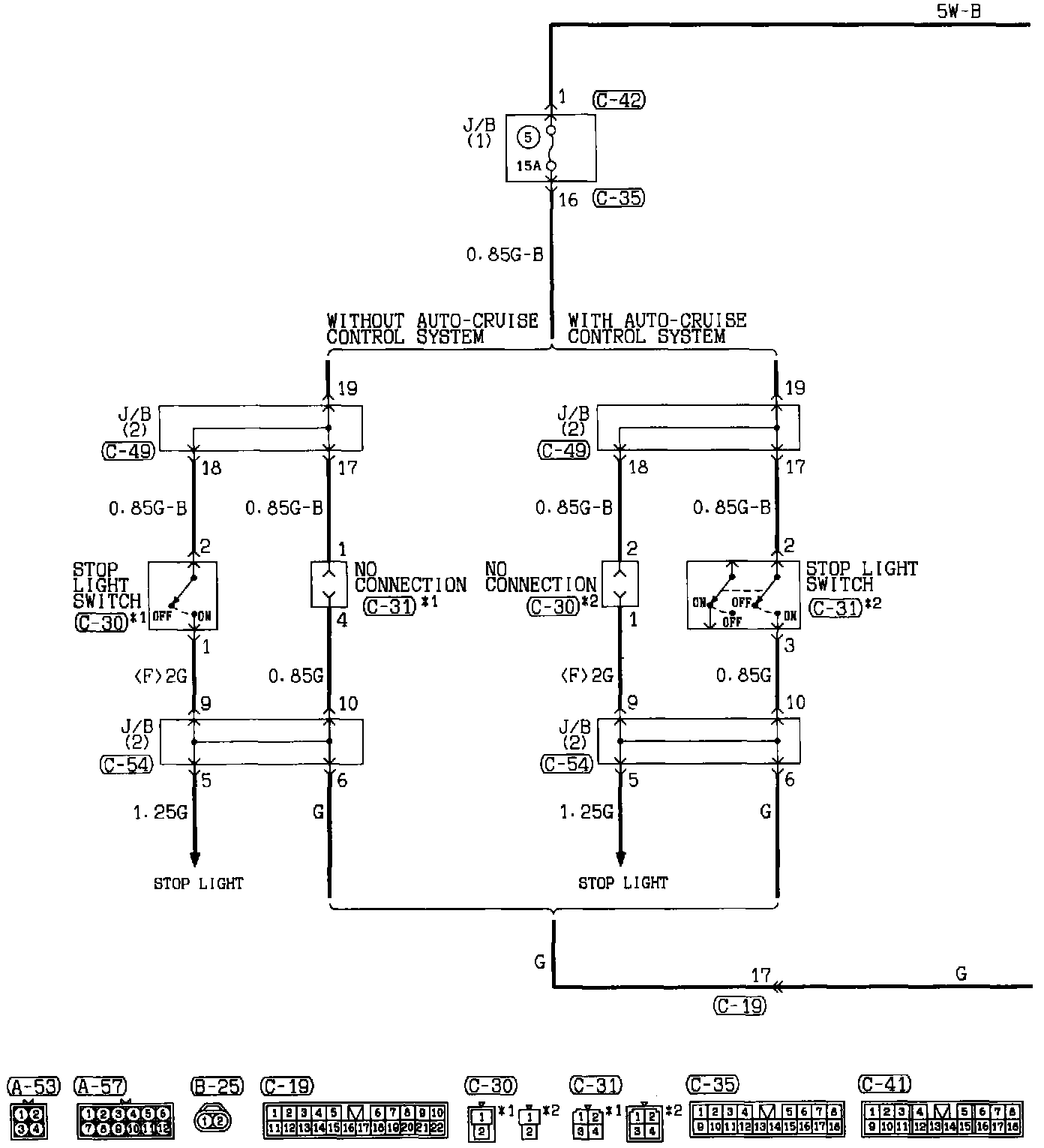

ELC 4-Speed Automatic Transaxle (Part 3 Of 7):

Multi-purpose fuse 5
Stop Light Switch

ELC 4-Speed Automatic Transaxle (Part 4 Of 7):

A/T Fluid Temperature Sensor
Dedicated Fuse 12
Pulse Generator
Transaxle Control Module

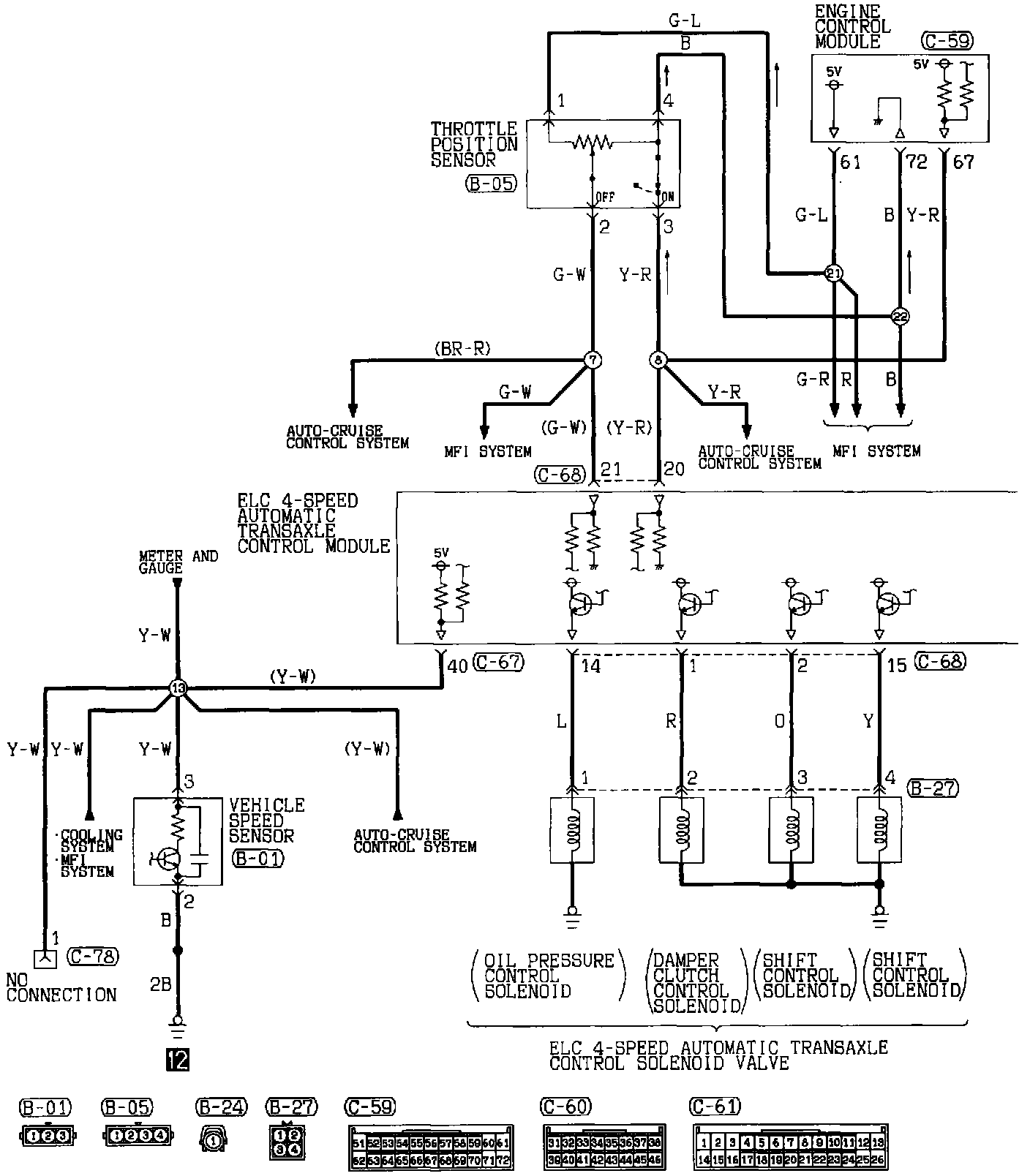

ELC 4-Speed Automatic Transaxle (Part 5 Of 7):

Damper Clutch Control Solenoid
Engine Control Module
Oil Pressure Control Solenoid
Shift Control Solenoid
Throttle Position Sensor
Transaxle Control Module
Vehicle Speed Sensor

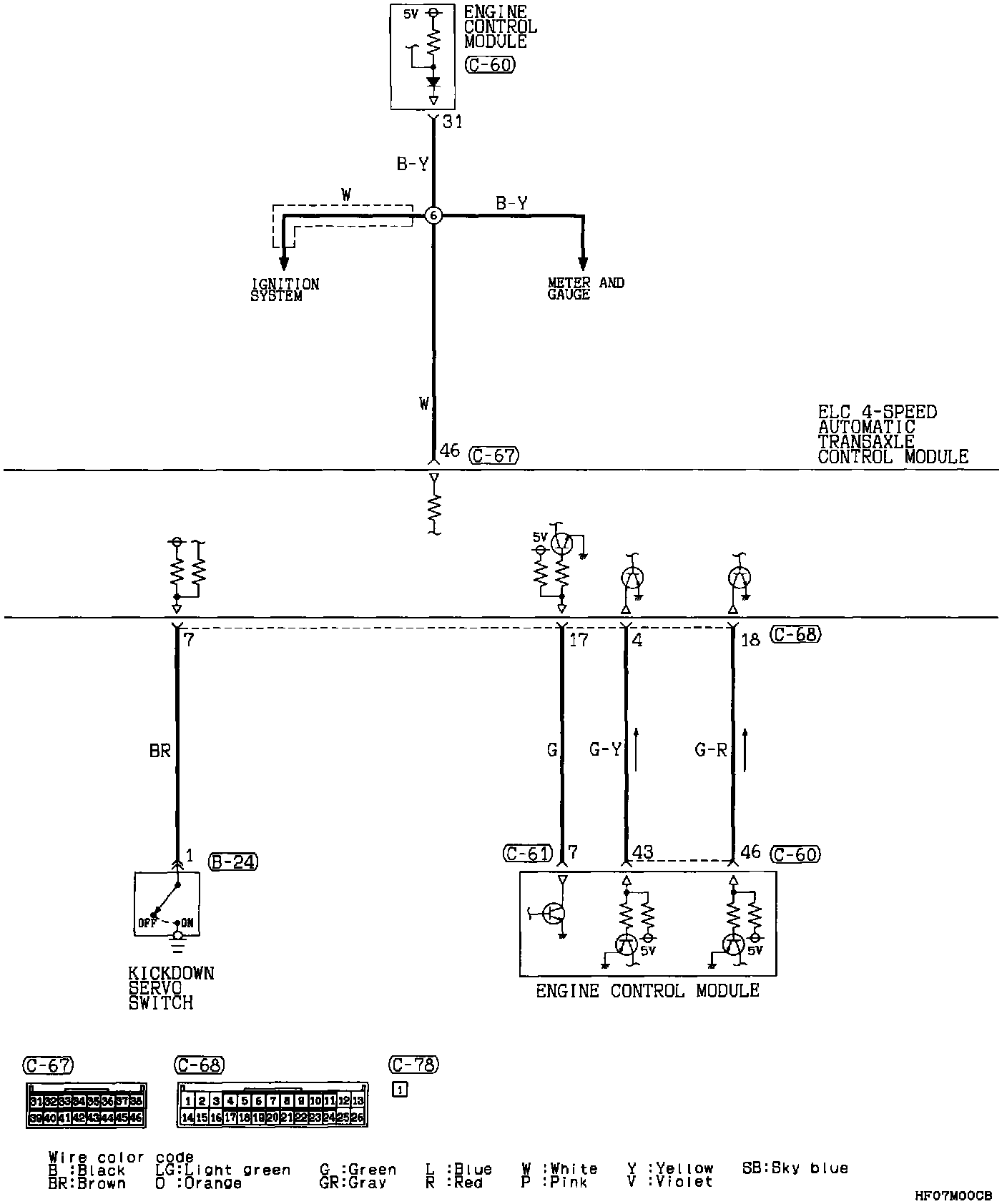

ELC 4-Speed Automatic Transaxle (Part 6 Of 7):

Engine Control Module
Kickdown Servo Switch
Transaxle Control Module

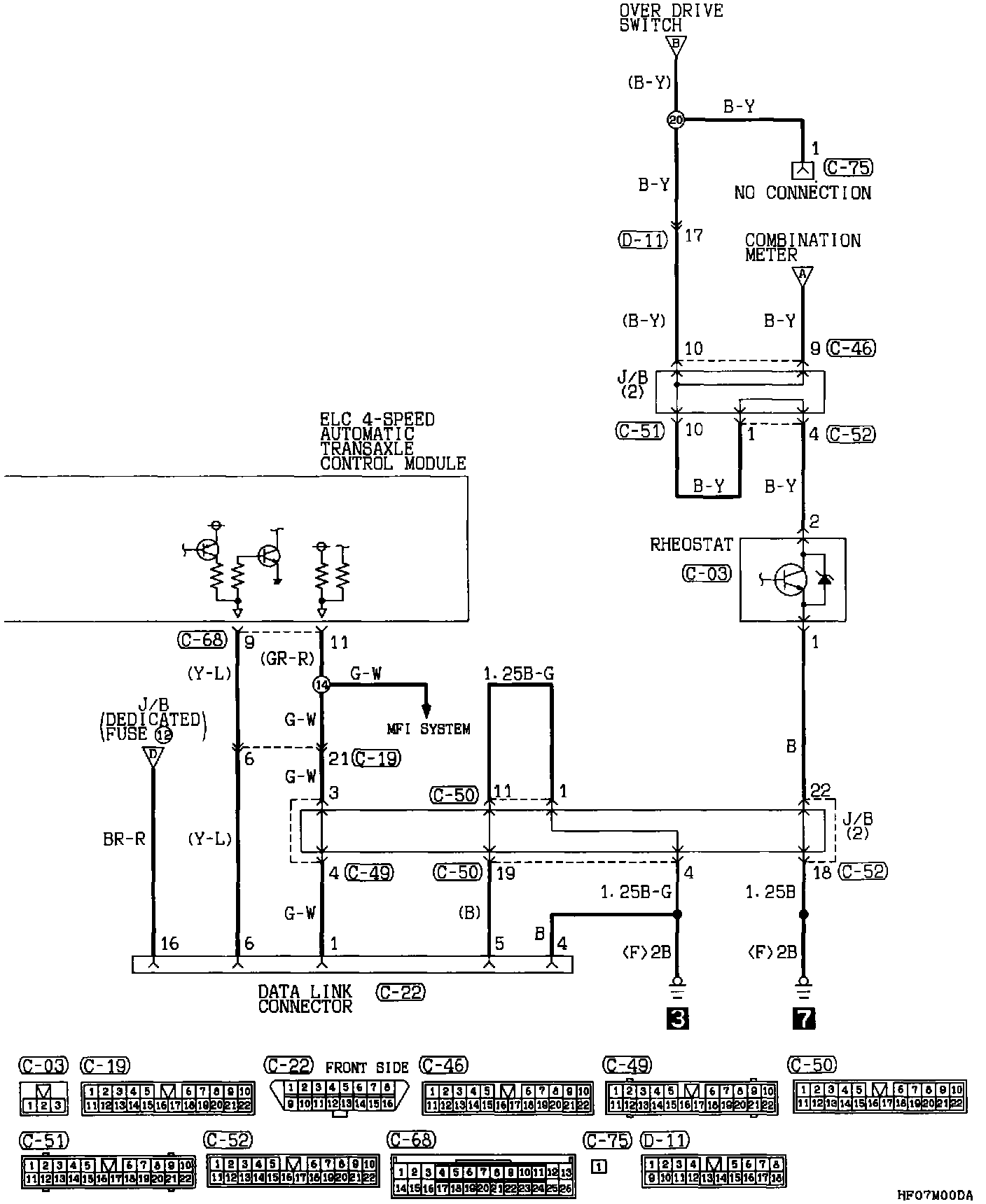

ELC 4-Speed Automatic Transaxle (Part 7 Of 7):

Data Link Connector
Rheostat
Transaxle Control Module




NOTE:
- Dedicated fuses are located in the Relay Box in the engine compartment.
- Multi-purpose fuses are located in the Junction Block under driver side of dash.
- Fusible links are located in the Relay Box in the engine compartment.
