Component Tests and General Diagnostics

Ignition Coil Check:

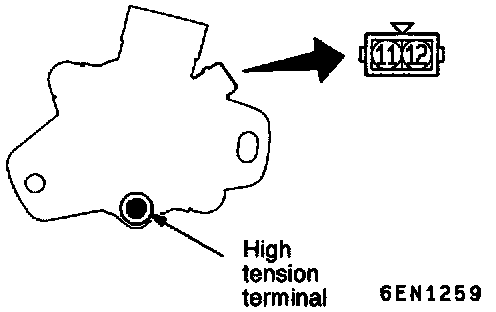

1. Measurement of the primary coil resistance Measure the resistance between connector terminal 11 and 12 of the distributor.
Standard value: 0.9 - 1.2 Ohms
2. Measurement of secondary coil resistance Measure the resistance between the high-voltage terminals and connector terminals 11 or 12.
Standard value: 20 - 29 K Ohms
