Mitsubishi
>>
1997
>>
Galant LS L4-2350cc 2.4L SOHC MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Distributor
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

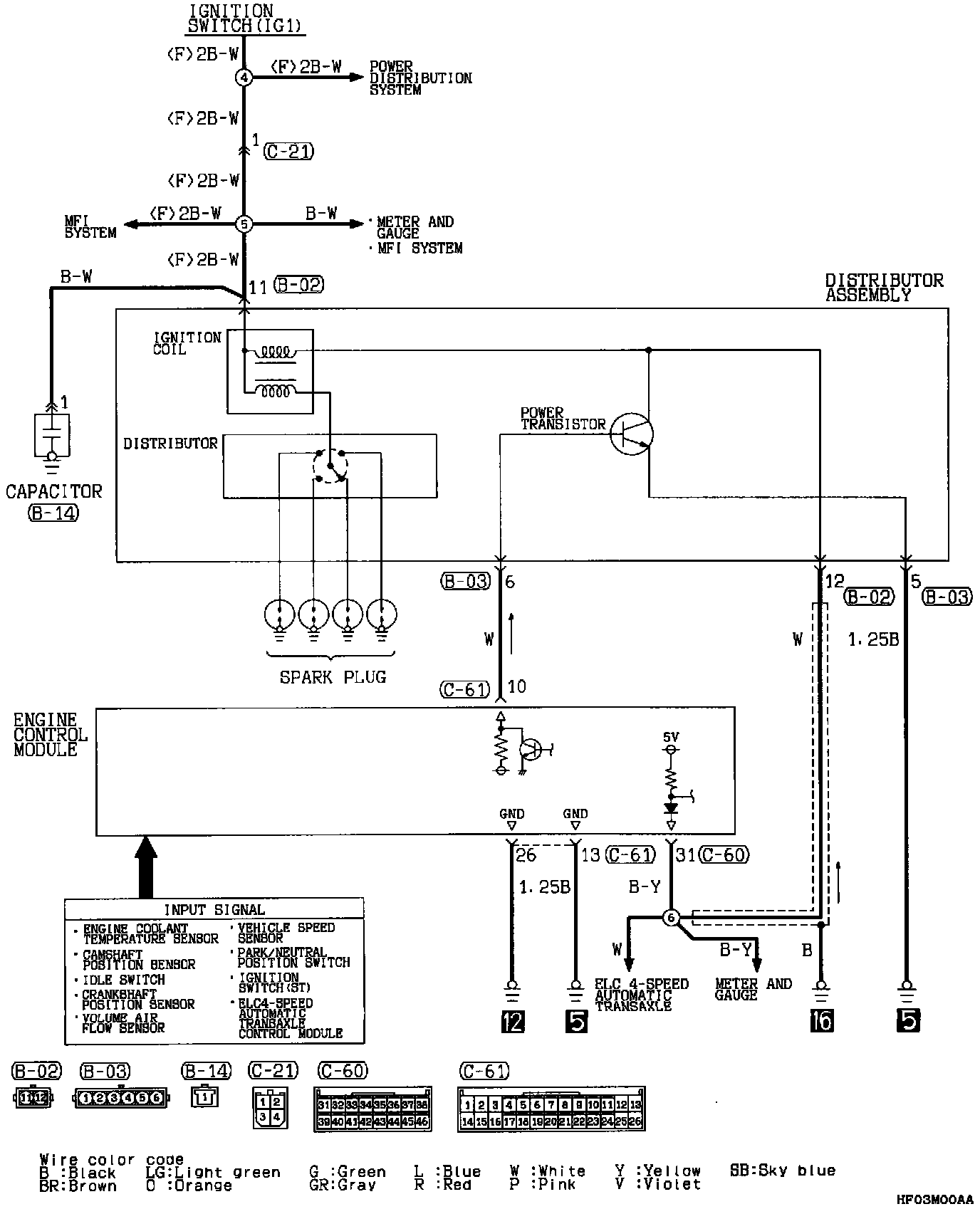

Ignition System:
