Throttle Position Sensor: Testing and Inspection

1. Disconnect the throttle position sensor connector.
2. Measure the resistance between the throttle position sensor side connector terminal 1 and terminal 4.

Standard value: 3.5 - 6.5 k Ohm

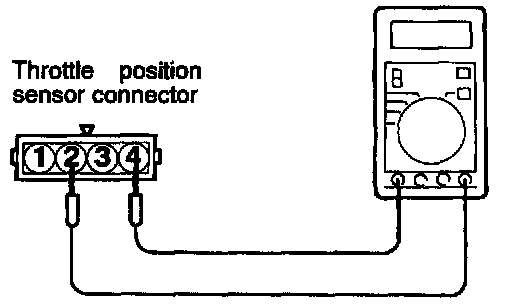

3. Measure the resistance between the throttle position sensor side connector terminal 2 and terminal 4.

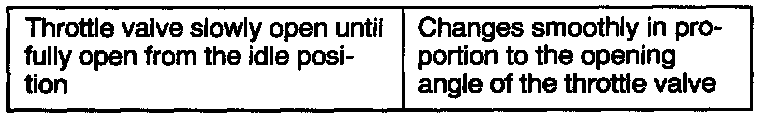

Normal condition:

4. If the resistance is outside the standard value, or if it doesn't change smoothly, replace the throttle position sensor.

NOTE:
After replacement, the throttle position sensor adjustment procedure, should be adjusted.
