DTC P0135 - Oxygen Sensor Heater Diagnostics Revised

NO: TSB-97-13-10
DATE: May, 1997
MODEL: 1996-97 Galant

SUBJECT:
DTC P0135 INSPECTION PROCEDURE - SERVICE MANUAL REVISION

[TSB Revision TSB-97-13-010]

PURPOSE
Some connector numbers are incorrectly identified in the DTC P0135 inspection procedure in affected service manuals. This bulletin contains correct connector numbers for the inspection procedure.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES
1996-1997 Galant

AFFECTED SERVICE MANUALS1

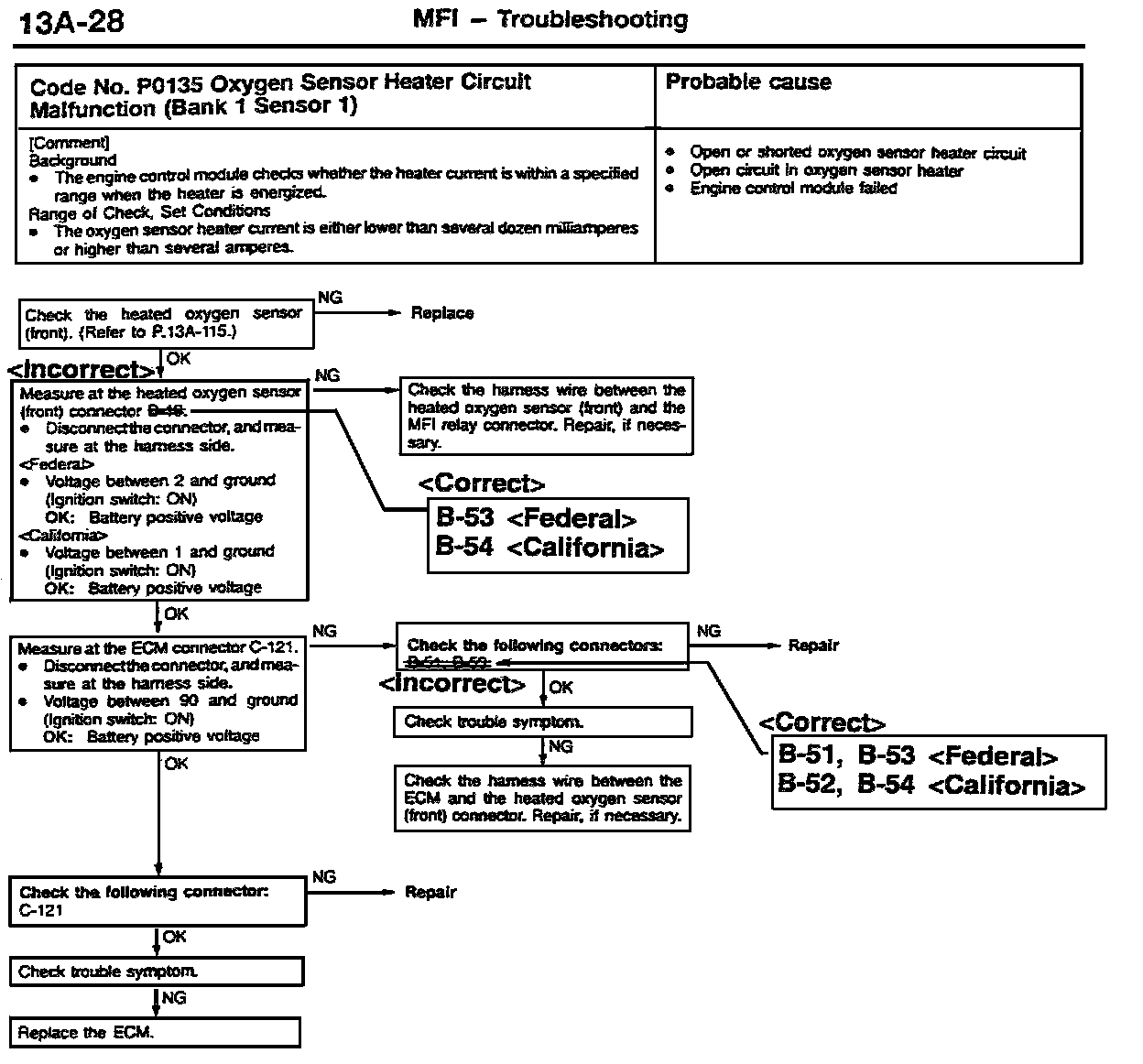

1996 Galant, Volume 1, page 13A-28

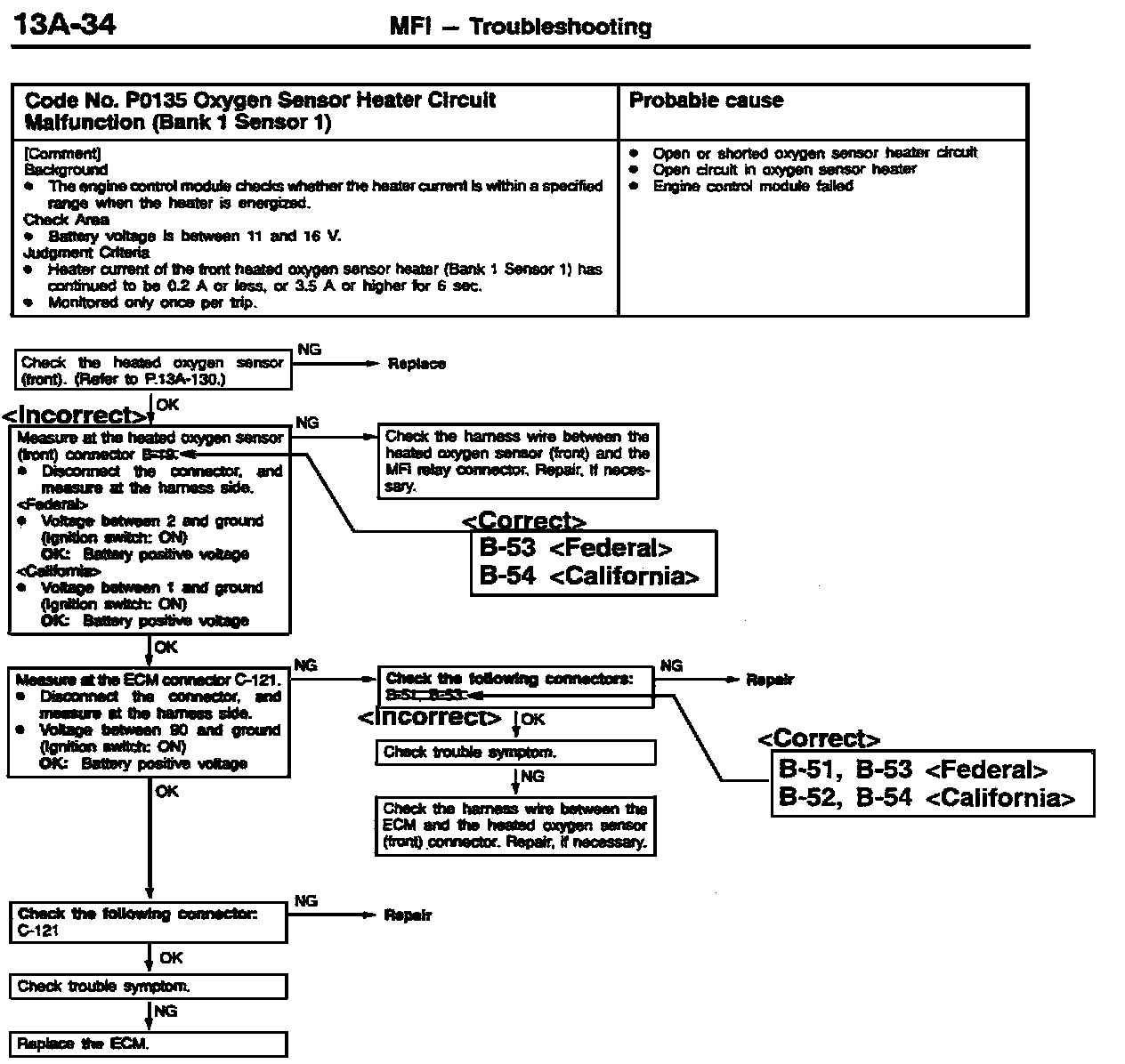

1997 Galant, Volume 1, page 13A-34





1996 GALANT, Volume 1, Page 13A-28





1997 Galant, Volume 1, page 13A-34
