Power Steering Line/Hose: Service and Repair

REMOVAL
1. Drain power steering fluid.
2. Remove front bumper.

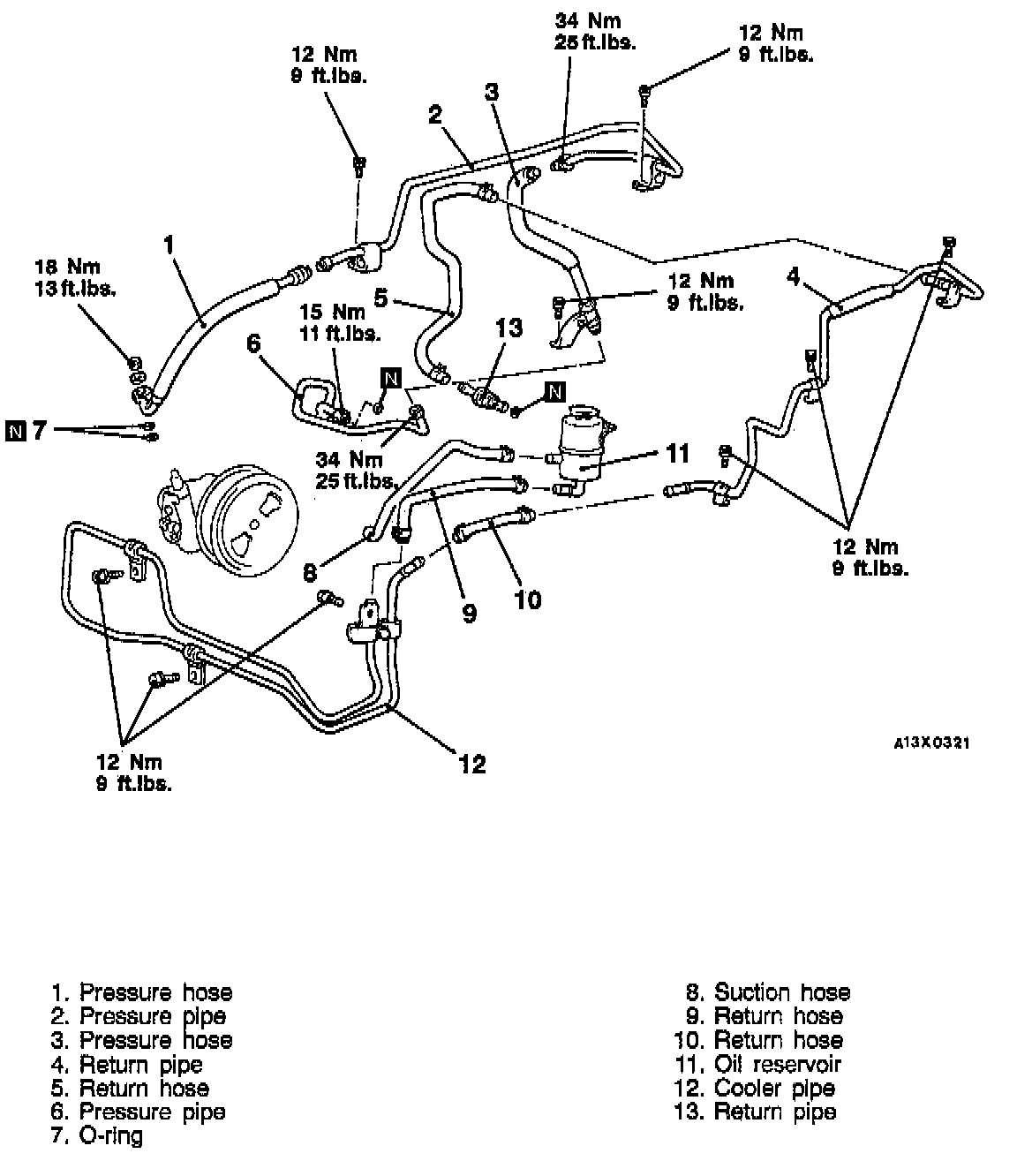

3. Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

NOTE: Installation service points as follows:
a. Pressure hose installation (1 & 3).

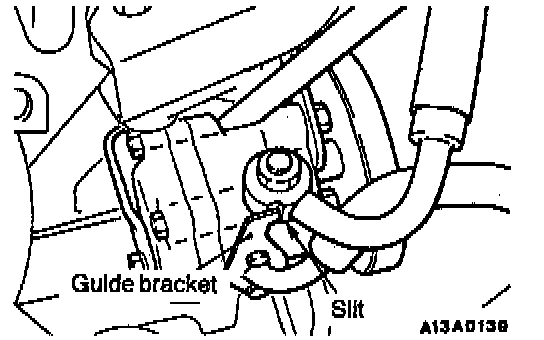

1. Connect the pressure hose so that its slit part contacts the oil pump's guide bracket.

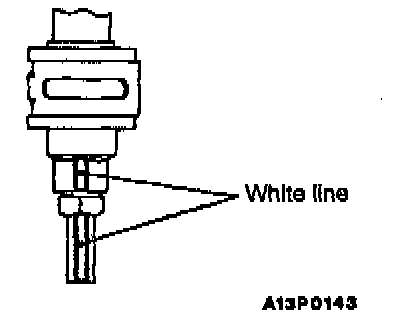

2. When the pressure hose is installed, align the white line on the pressure hose with the white line on the pressure tube so that together they form a straight line.

NOTE: Operational steps after installation as follows:
1. Install front bumper.
2. Fill power steering fluid.
3. Power steering fluid line bleeding. Service and Repair
