Headlight, Front Side-Marker Light and Position Light Assembly

Headlight, Front Side-Marker Light And Position Light Assembly - Removal And Installation:

Caution: Before removal of air bag module and clock spring refer to SRS Service Precautions, Air Bag Module Clock Spring.

Pre-removal and Post-Installation Operation
Removal and Installation of Battery (When replacing only right side headlight)

Removal

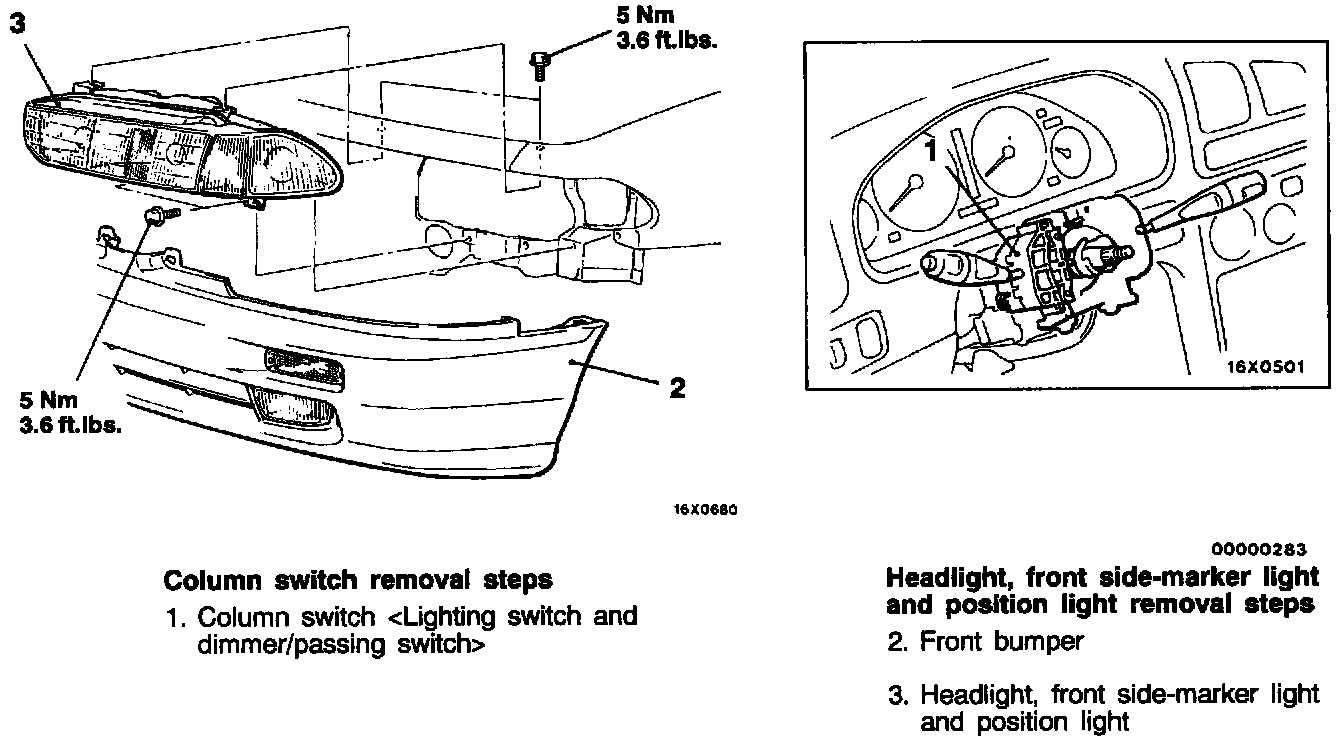

To remove follow the steps listed in the image.

Installation
To install reverse the steps listed in the image.
