Column Switch Continuity Check

Column Switch Continuity Check <Lighting Switch And Dimmer/Passing Switch>:

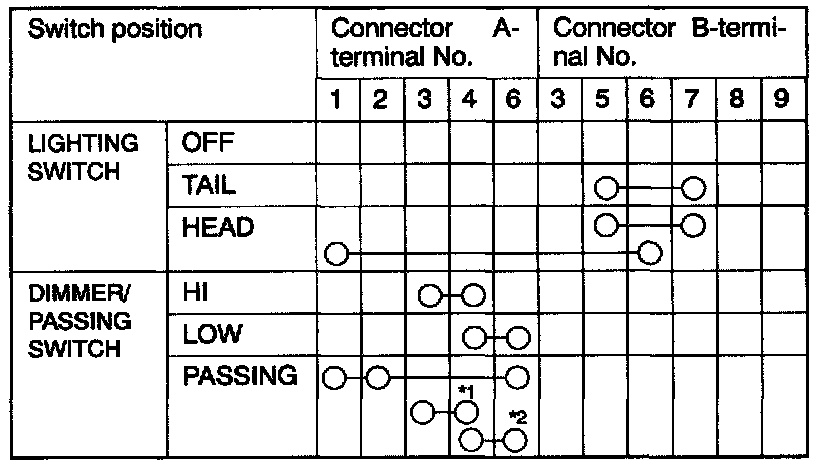

Column Switch Continuity Check Chart <Lighting Switch And Dimmer/Passing Switch>:

NOTE:
1. *1 indicates that the dimmer switch has continuity at the low-beam position.
2. *2 indicates that the dimmer switch has continuity at the high-beam position.
