Air Duct: Service and Repair

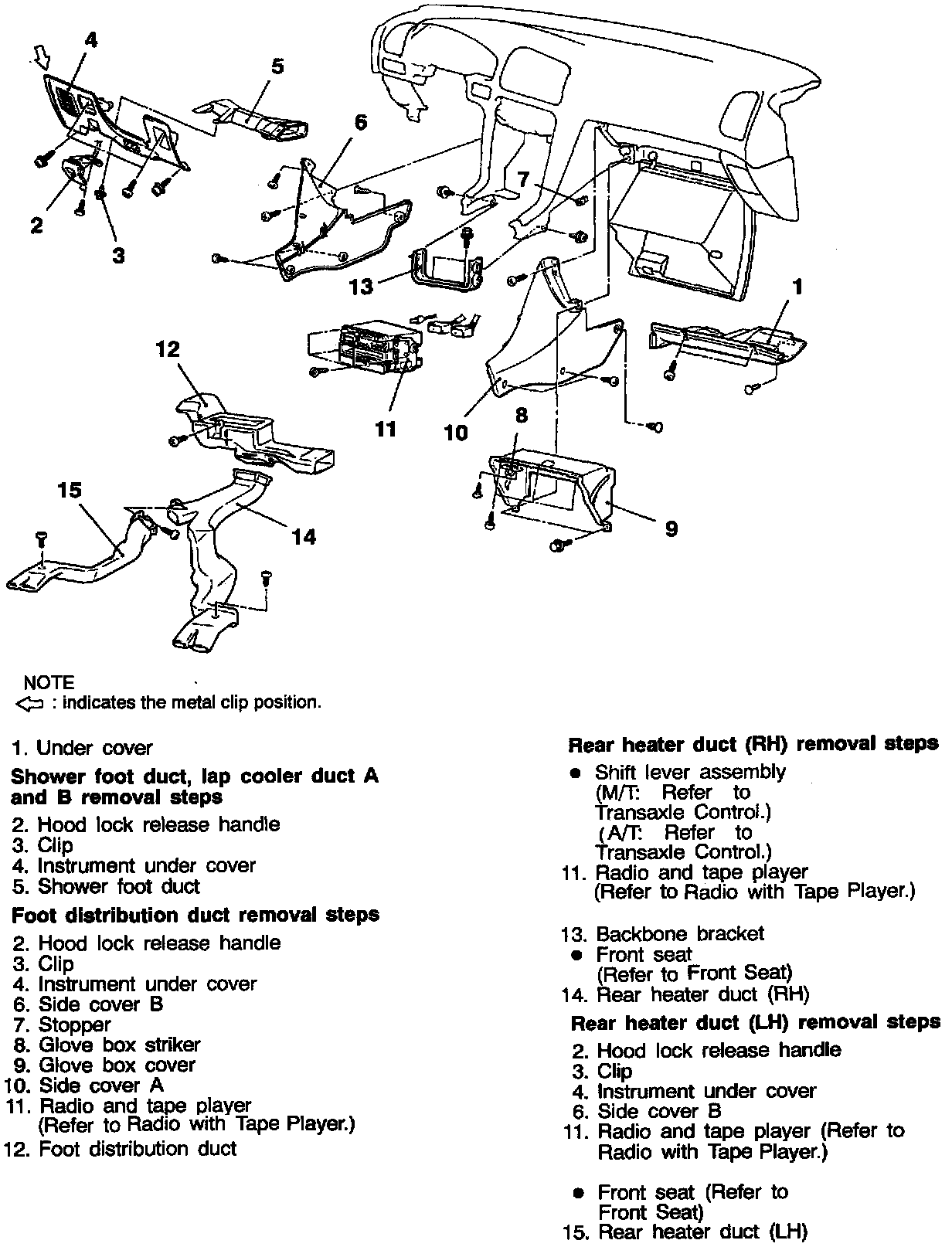

VENTILATORS (FLOOR)
REMOVAL AND INSTALLATION

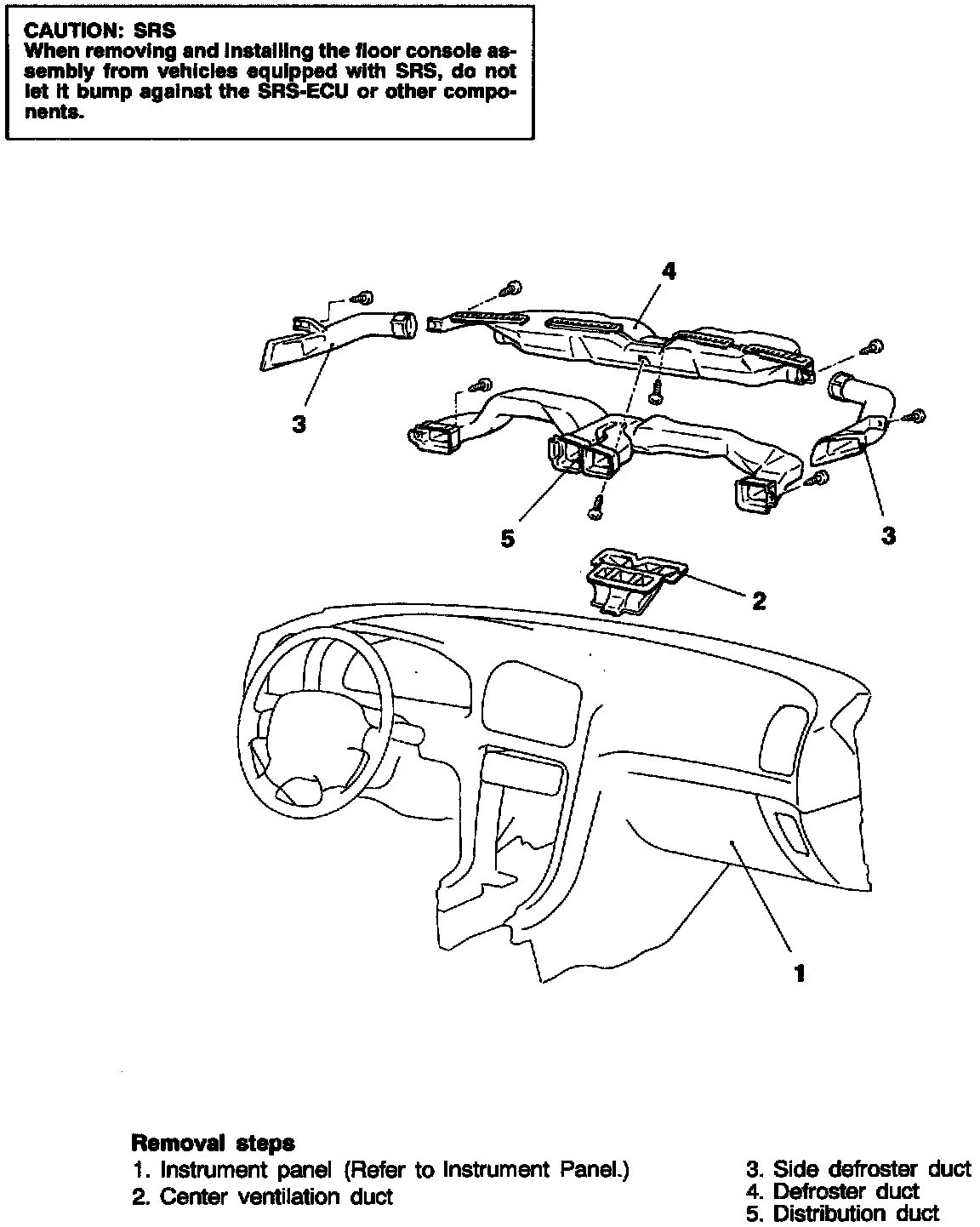

VENTILATORS (INSTRUMENT PANEL)
REMOVAL AND INSTALLATION

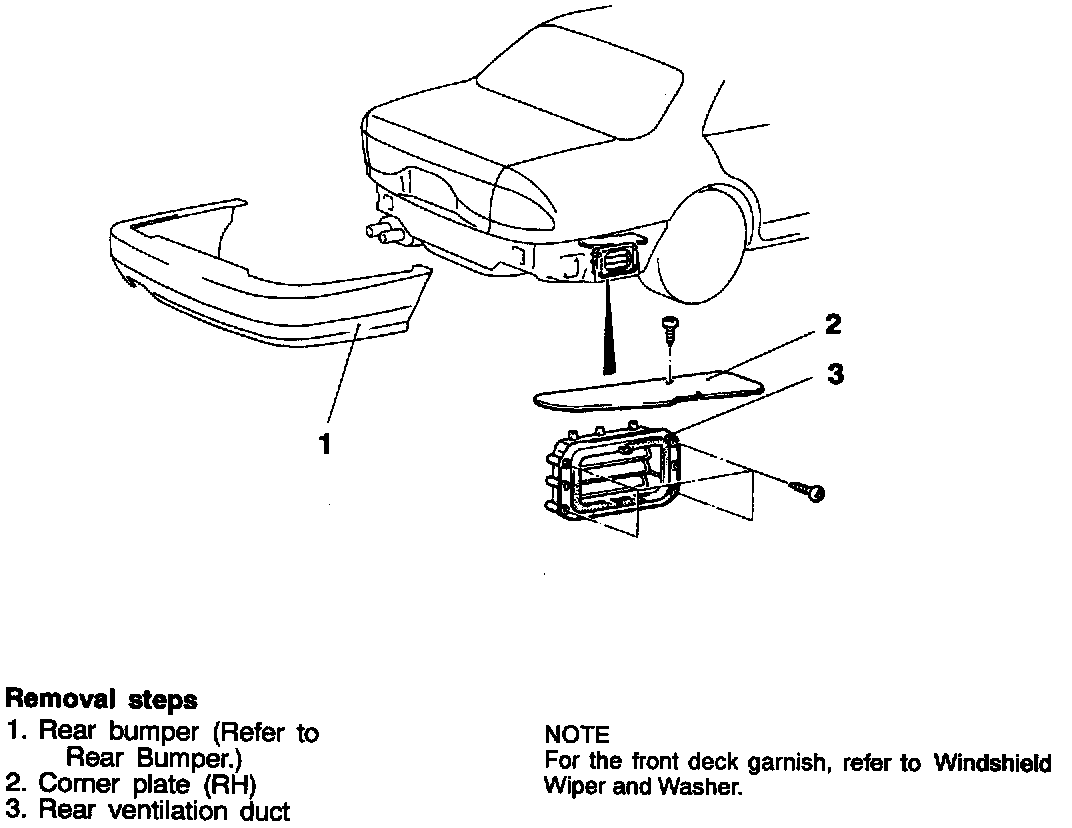

VENTILATORS (AIR OUTLET)
REMOVAL AND INSTALLATION
