Fuel and Emission Control Systems

REMOVAL

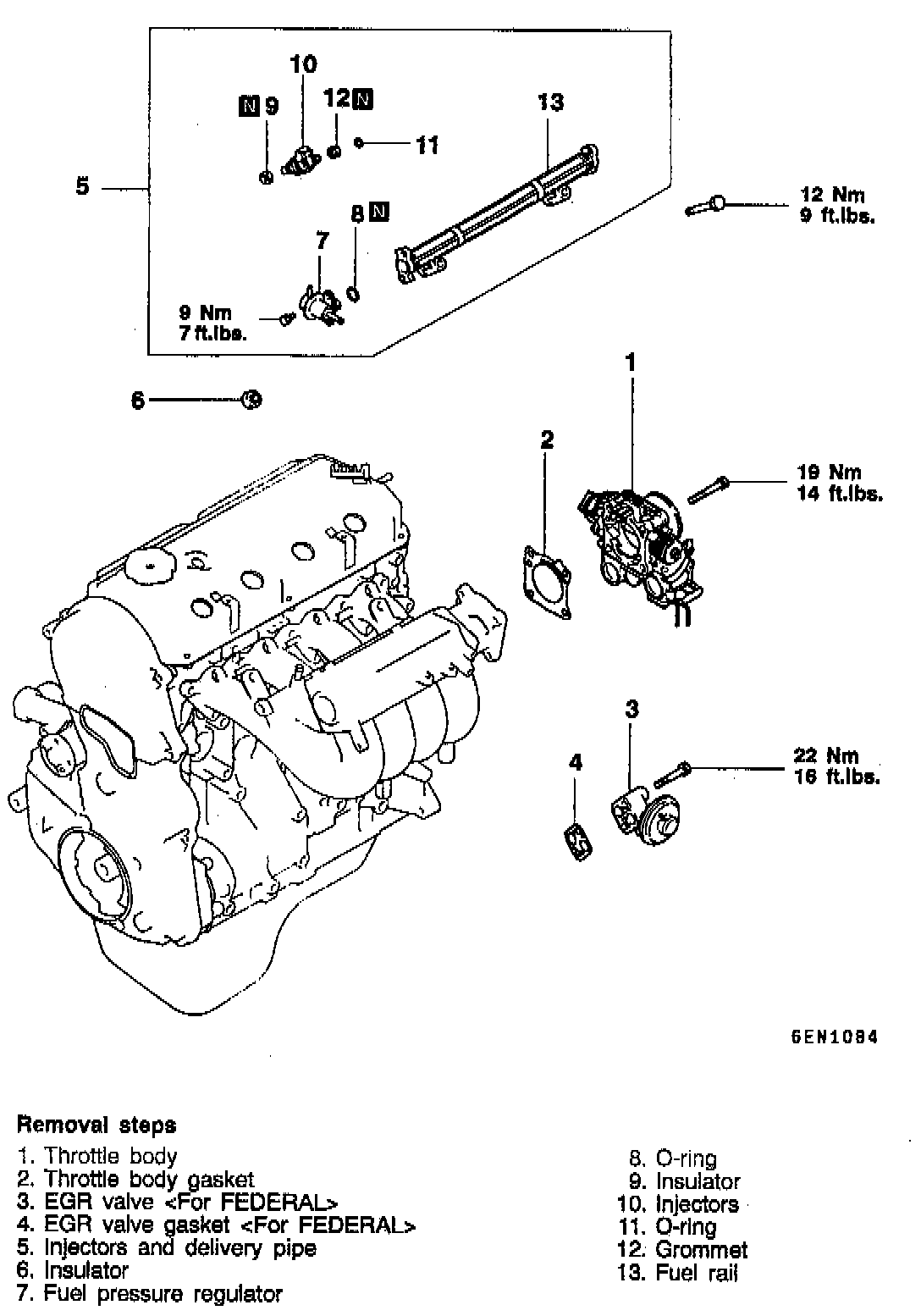

Refer to the illustration for the removal procedure.





INSTALLATION
Reverse the removal procedure to install, noting the following:
1. Before installing the injectors, the rubber O-ring must be lubricated with a drop of clean engine oil to aid in installation.

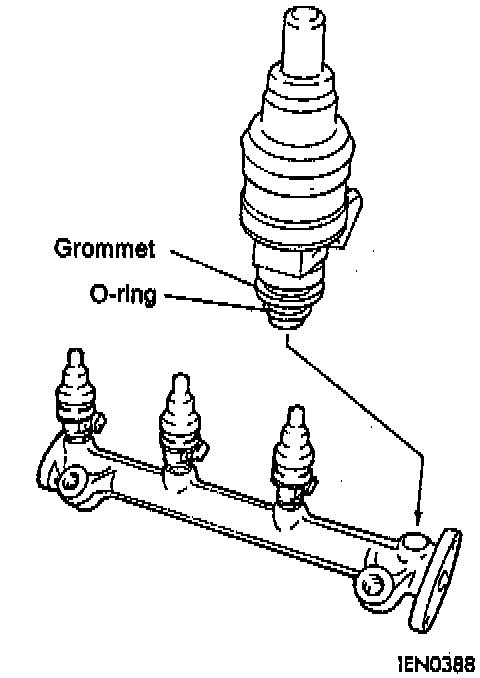

2. Install the injectors top end into the fuel rail. Be careful not to damage O-ring during installation.
3. Before installing the pressure regulator the O-ring must be lubricated with a drop of clean engine O-ring to aid in installation.
