Windows

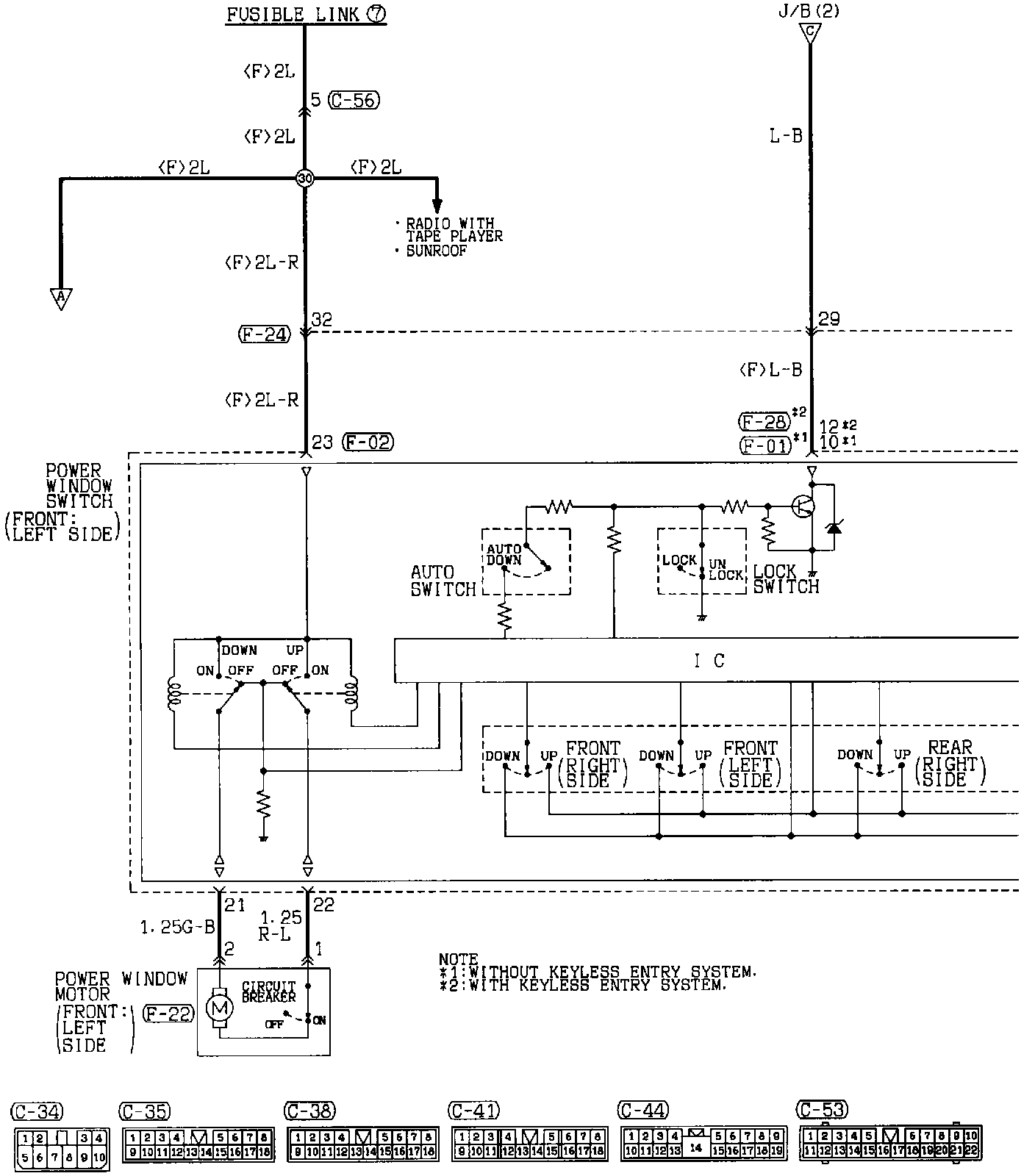

Power Window (Part 1 Of 5):

Power Window Switch -- Front Left
Power Window Motor -- Front Left

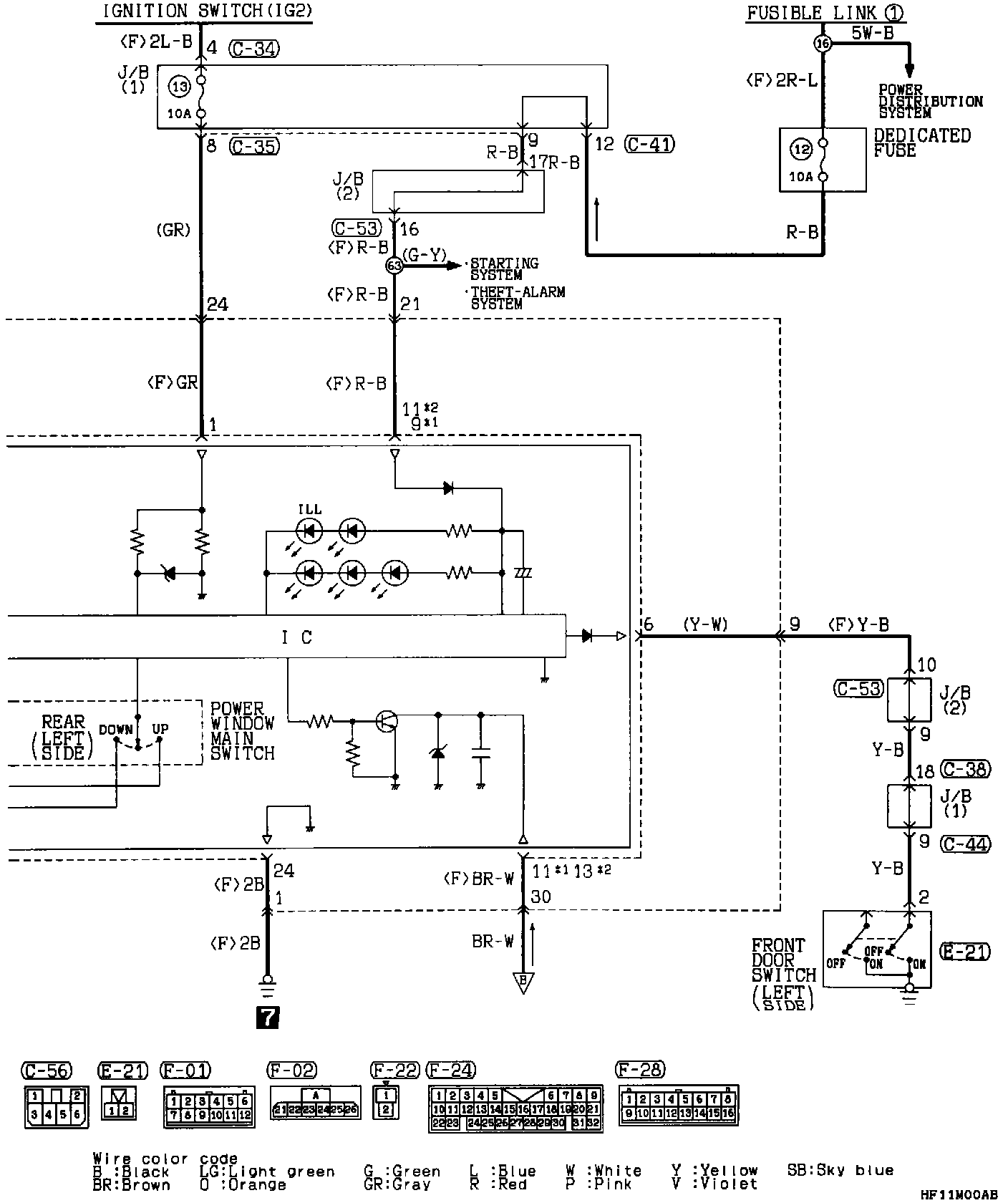

Power Window (Part 2 Of 5):

Dedicated Fuse 12
Front Door Switch -- Left
Multi-purpose Fuse 13
Power Window Switch -- Front Left

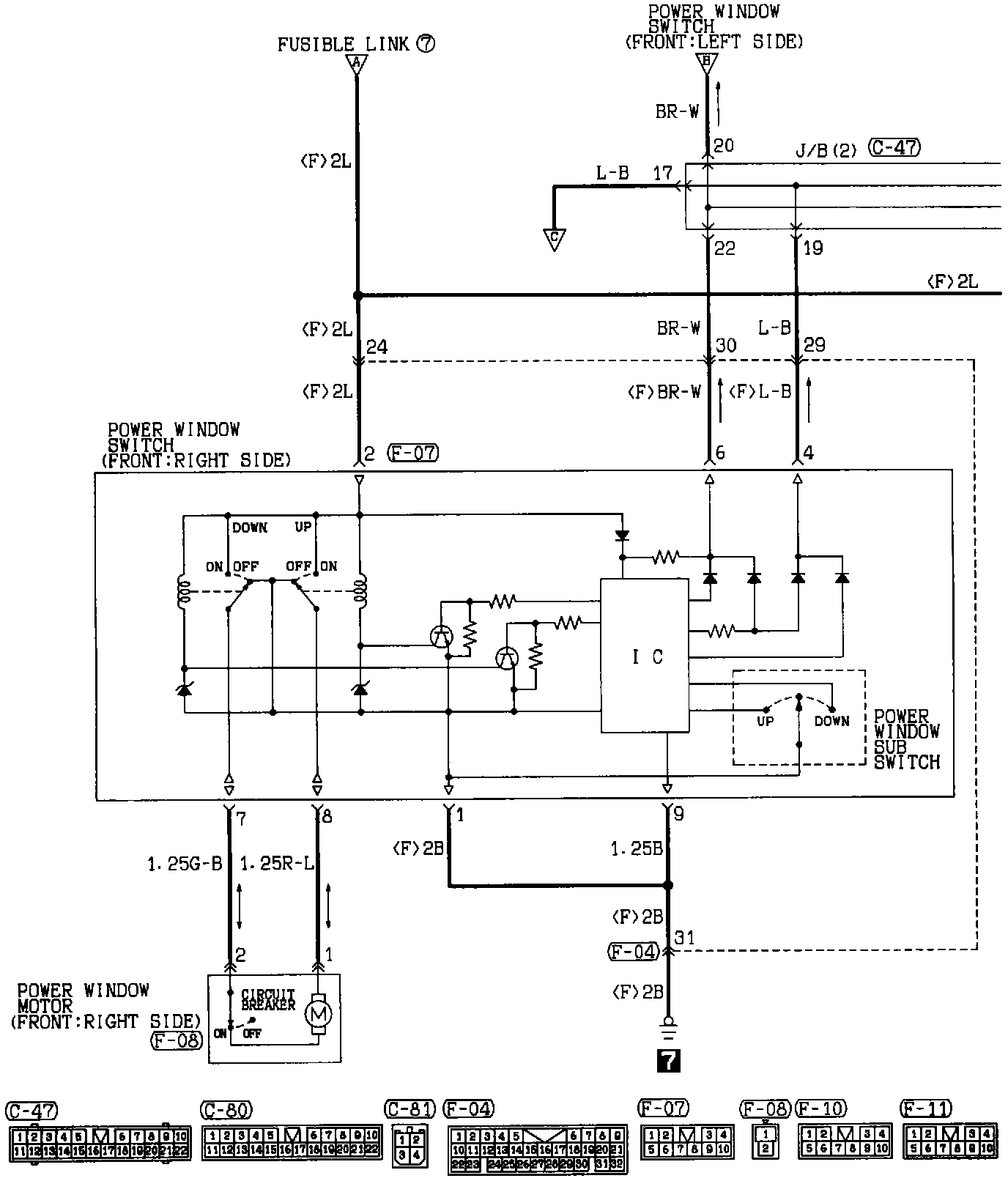

Power Window (Part 3 Of 5):

Power Window Switch -- Front Left
Power Window Switch -- Front Right
Power Window Motor -- Front Right

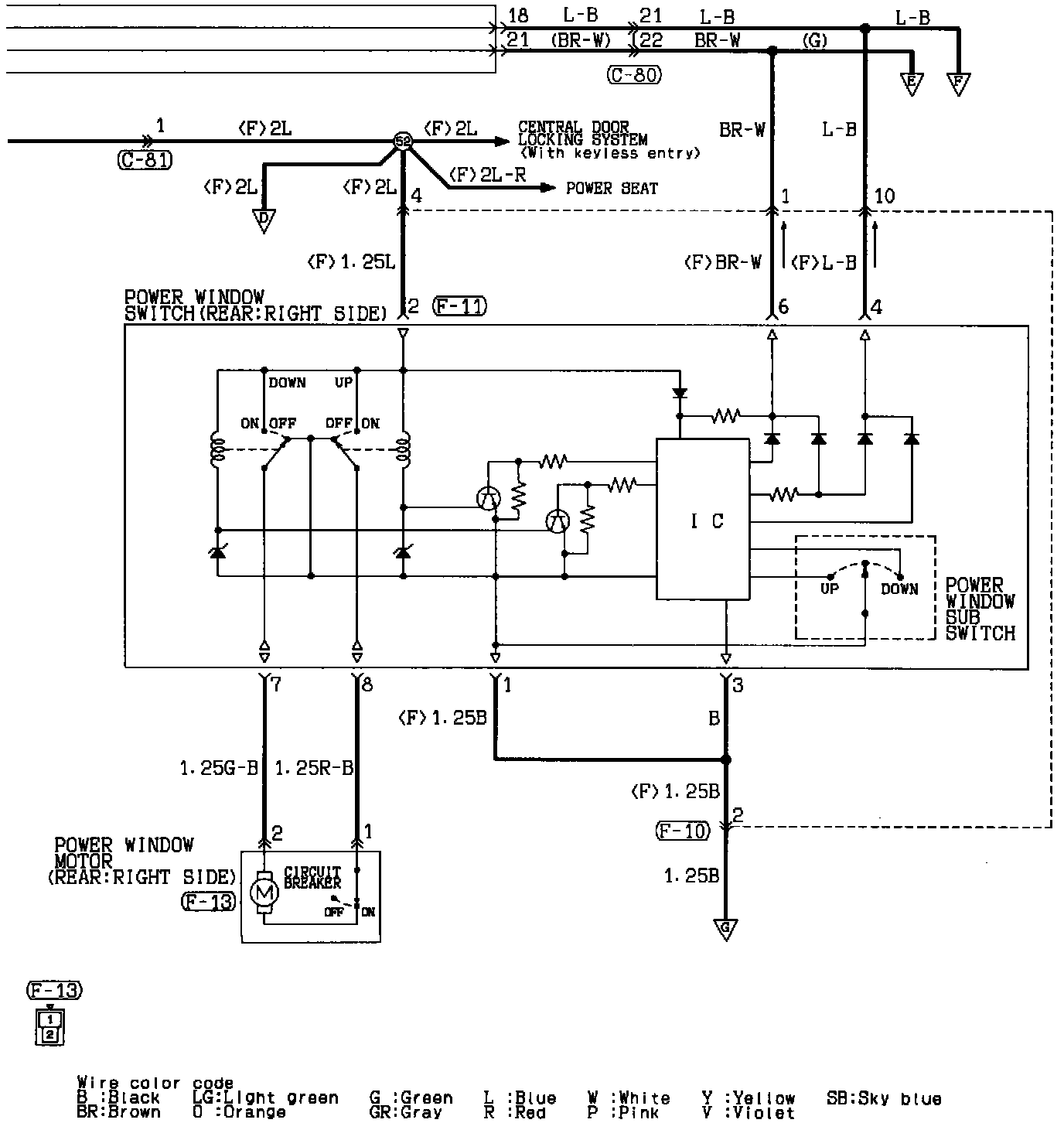

Power Window (Part 4 Of 5):

Power Window Switch -- Front Left
Power Window Switch -- Rear Right
Power Window Motor -- Rear Right

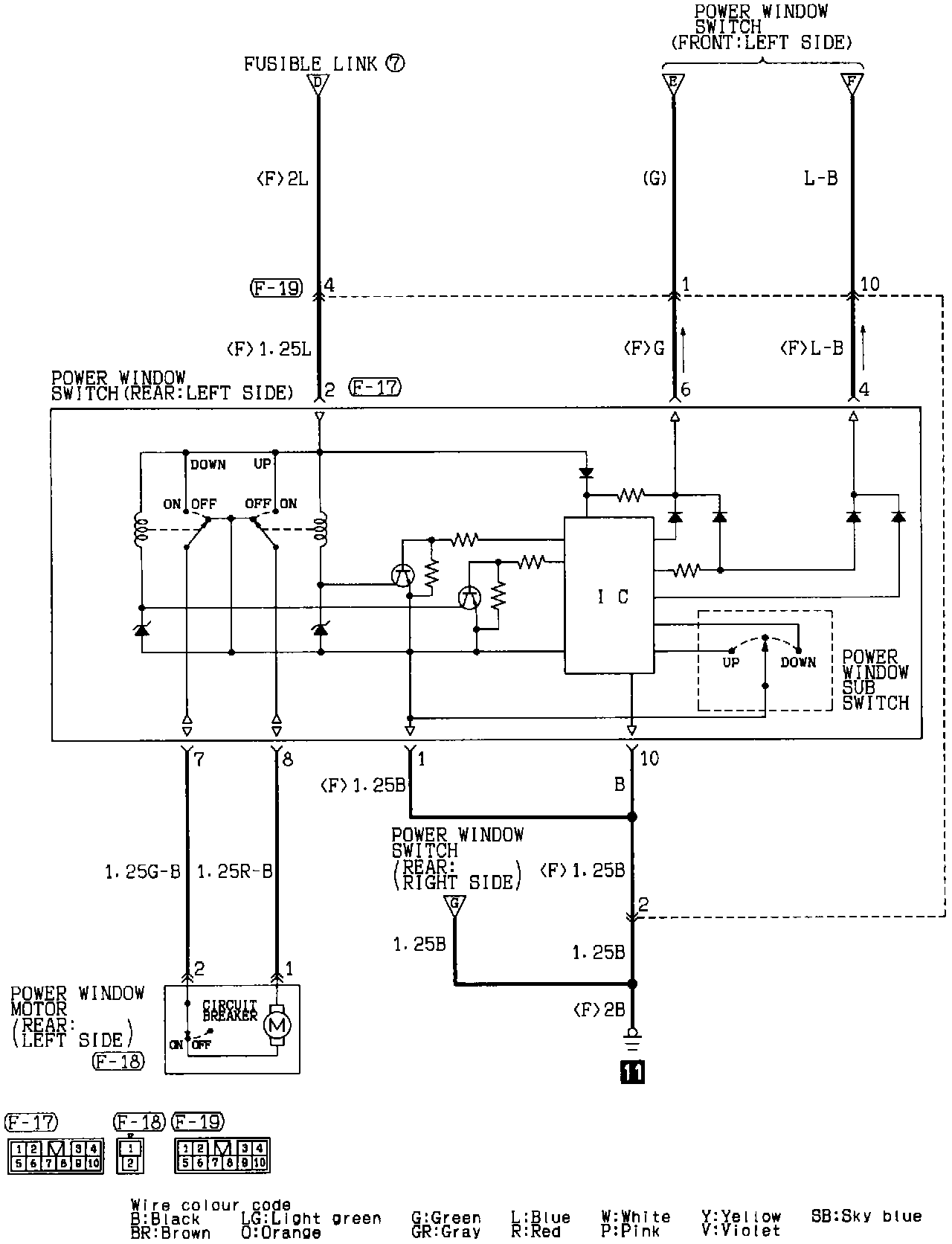

Power Window (Part 5 Of 5):

Power Window Switch -- Front Left
Power Window Switch -- Rear Left
Power Window Motor -- Rear Left




NOTE:
- Dedicated fuses are located in the Relay Box in the engine compartment.
- Multi-purpose fuses are located in the Junction Block under driver side of dash.
- Fusible links are located in the Relay Box in the engine compartment.
