Vehicles Without Keyless Entry System

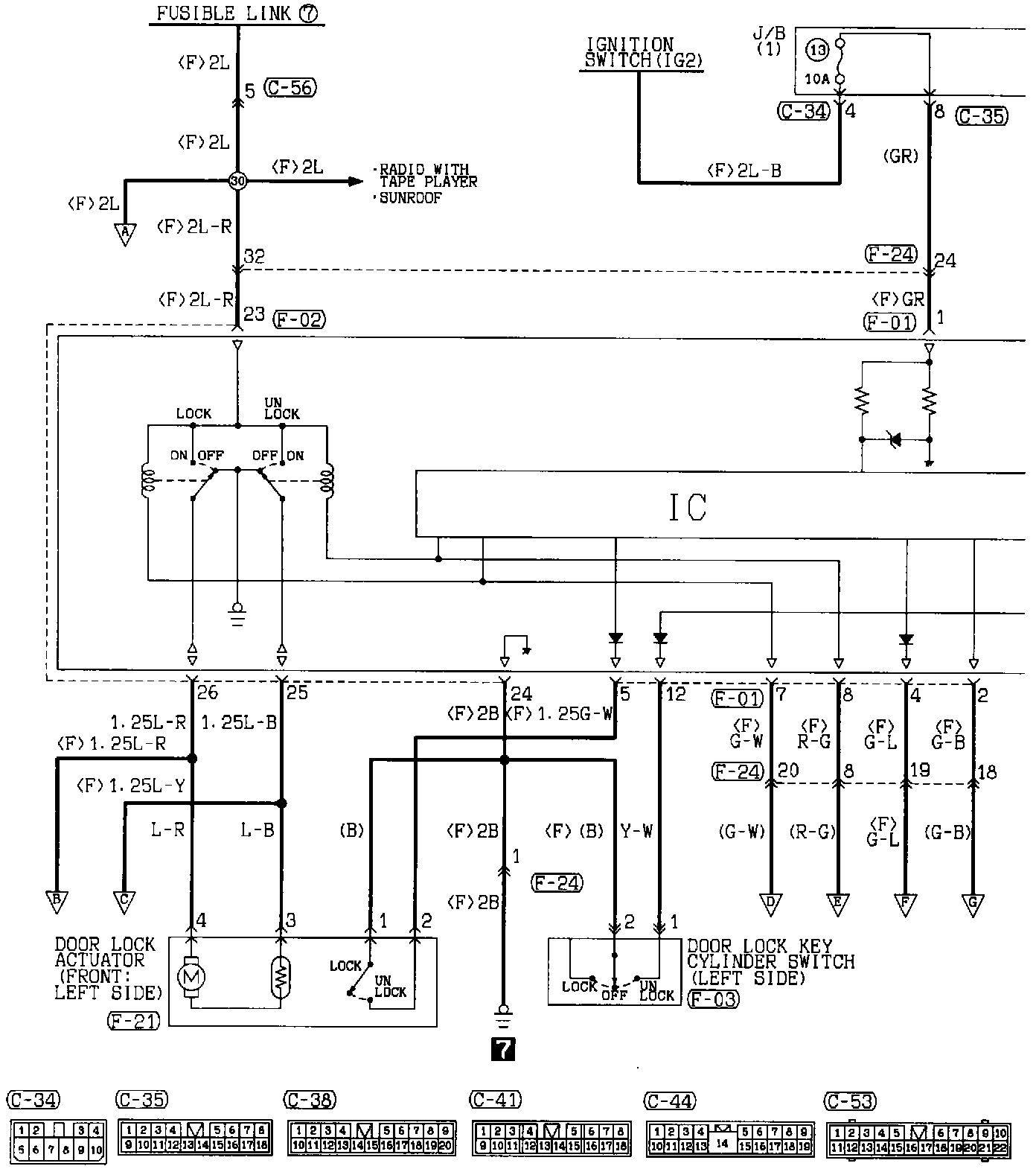

Central Door Locking System <Without Keyless Entry> (Part 1 Of 4):

Door Lock Actuator -- Front Left
Door Lock Key Cylinder Switch -- Left
Junction Block 1
Multi-purpose Fuse 13
Power Window Switch -- Front Left

Central Door Locking System <Without Keyless Entry> (Part 2 Of 4):

Power Window Switch -- Front Left
Dedicated Fuse 12
Door Switch -- Front Left
Door Switch -- Front Right
Junction Block 2

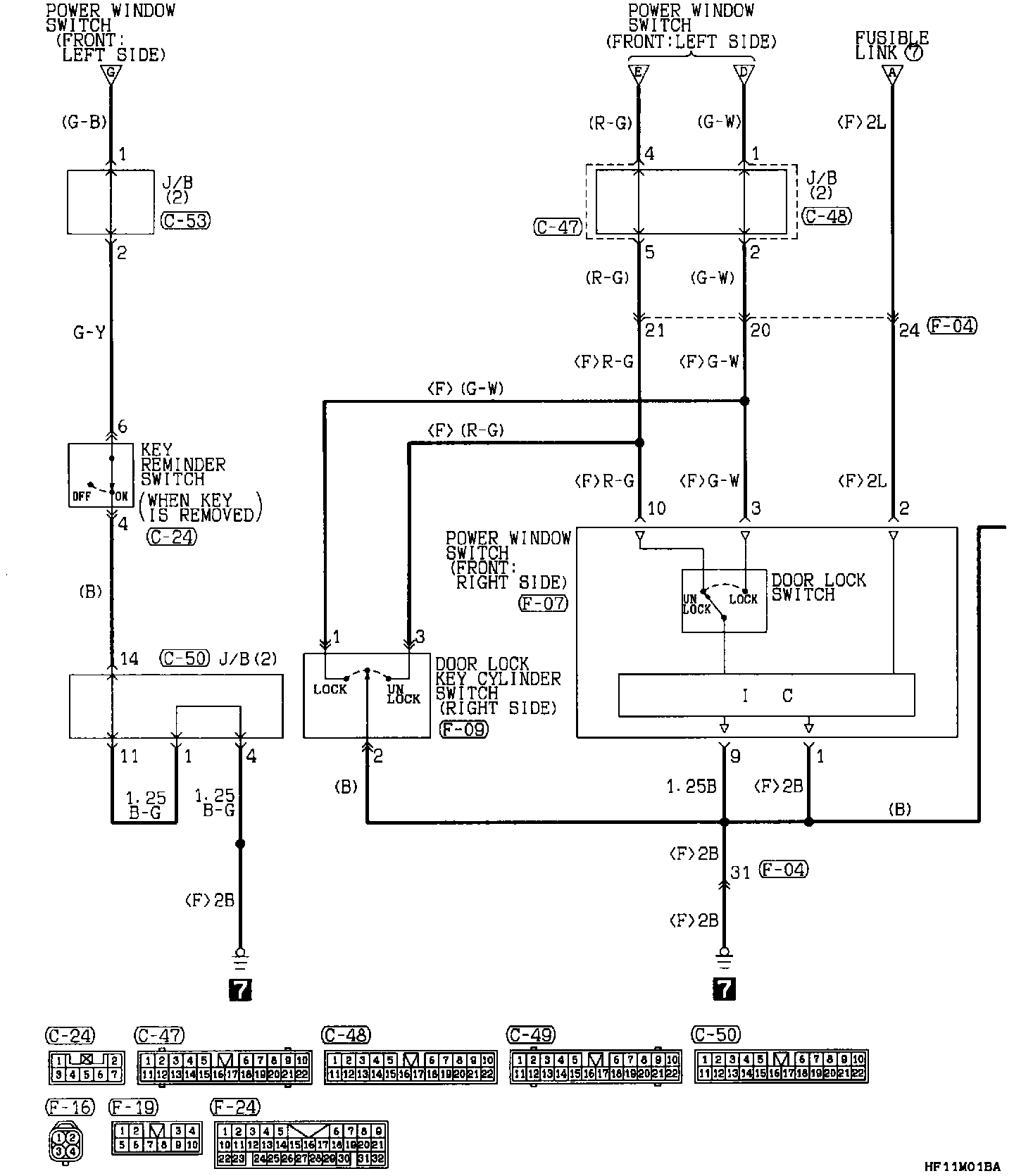

Central Door Locking System <Without Keyless Entry> (Part 3 Of 4):

Door Lock Key Cylinder Switch -- Right
Junction Block 2
Key Reminder Switch
Power Window Switch -- Front Left
Power Window Switch -- Front Right

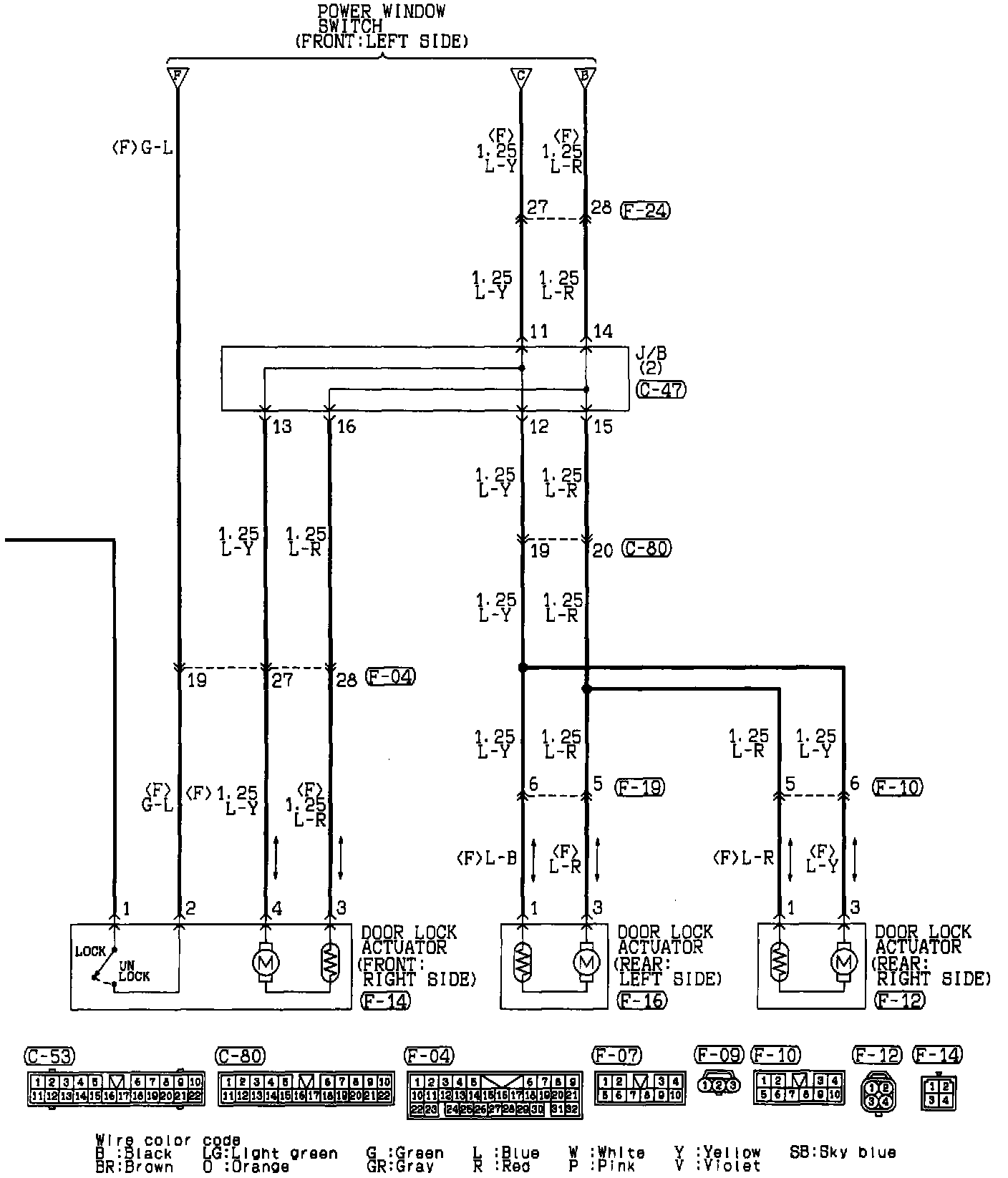

Central Door Locking System <Without Keyless Entry> (Part 4 Of 4):

Door Lock Actuator -- Front Right
Door Lock Actuator -- Rear Left
Door Lock Actuator -- Rear Right
Junction Block 2




NOTE:
- Dedicated fuses are located in the Relay Box in the engine compartment.
- Multi-purpose fuses are located in the Junction Block under driver side of dash.
- Fusible links are located in the Relay Box in the engine compartment.
