Vehicles With Keyless Entry System

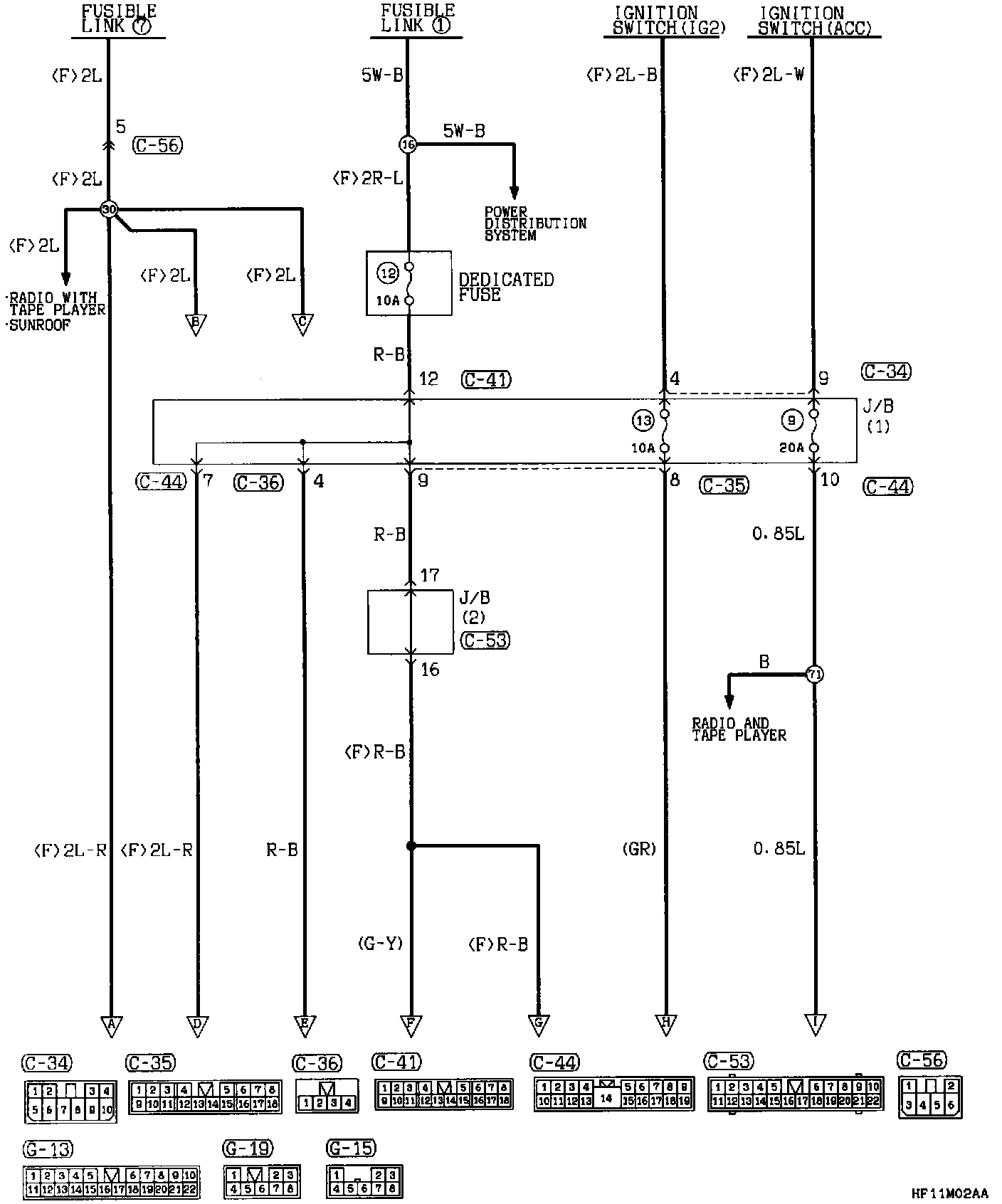

Central Door Locking System <With Keyless Entry> (Part 1 Of 8):

Dedicated Fuse 12
Junction Block 1
Junction Block 2

Central Door Locking System <With Keyless Entry> (Part 2 Of 8):

Door Lock Power Relay
Door Lock Actuator -- Front Right
Door Lock Actuator -- Rear Left
Door Lock Actuator -- Rear Right

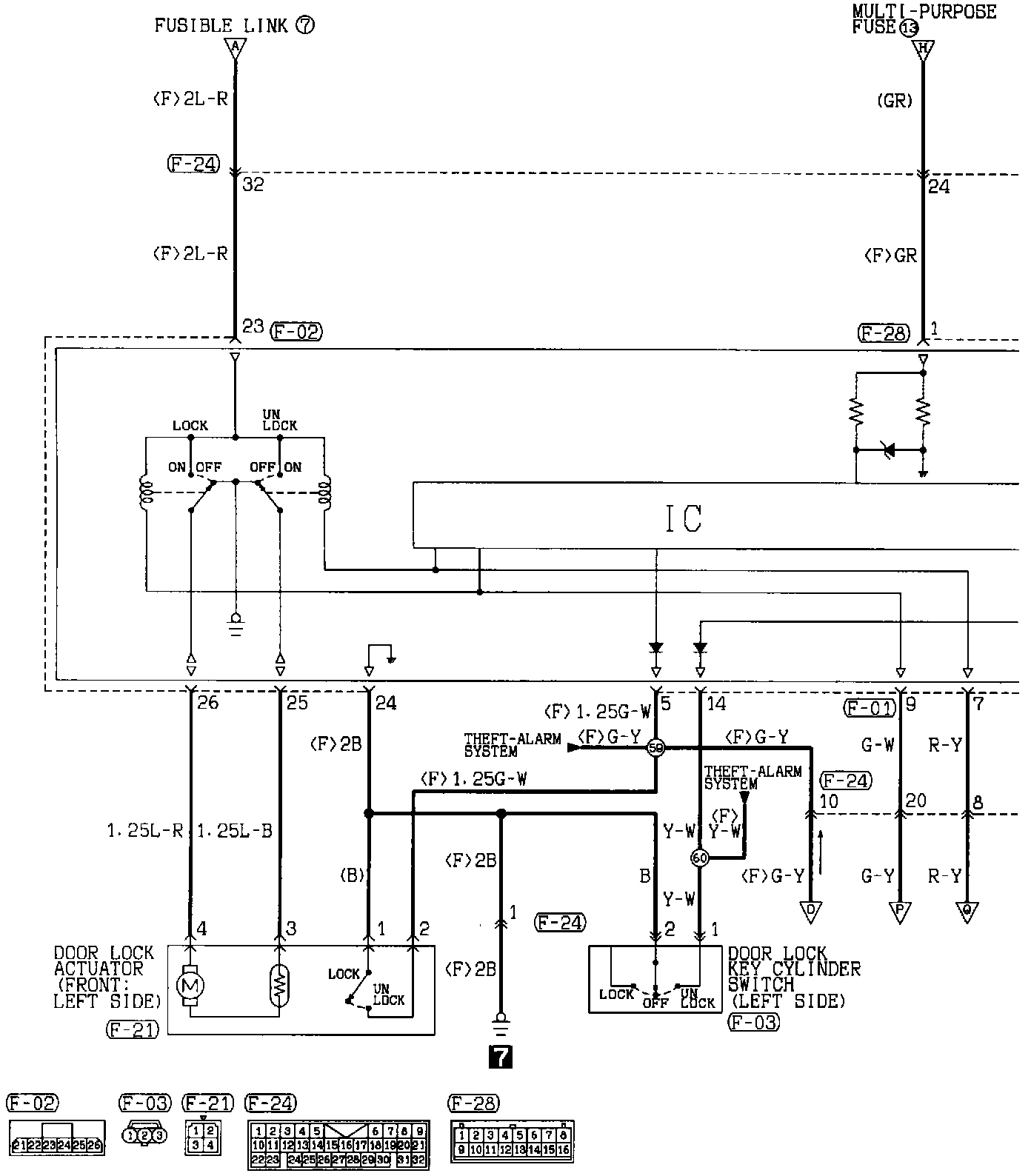

Central Door Locking System <With Keyless Entry> (Part 3 Of 8):

Door Lock Actuator -- Front Left
Door Lock Key Cylinder Switch -- Left
Power Window Switch -- Front Left

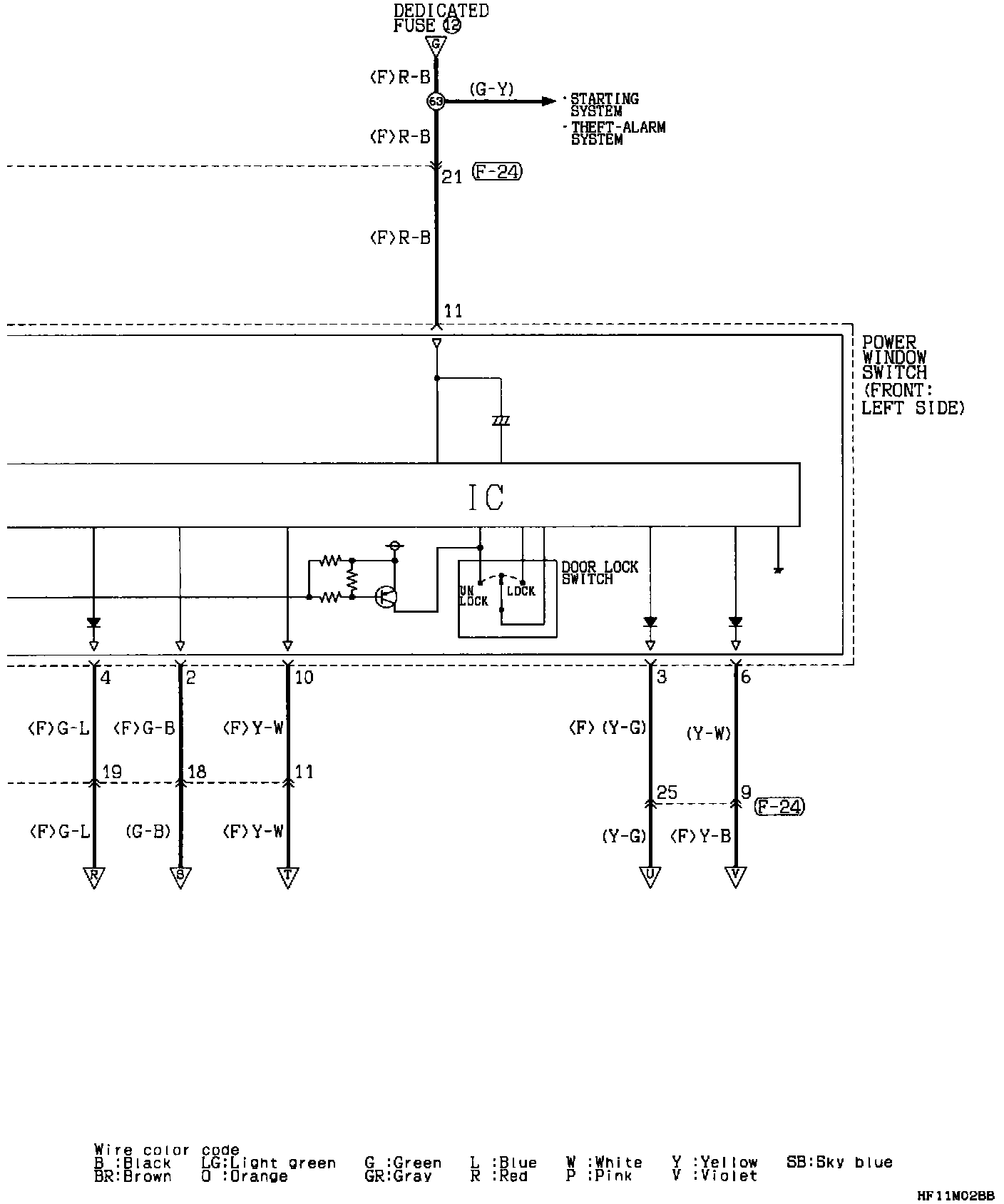

Central Door Locking System <With Keyless Entry> (Part 4 Of 8):

Power Window Switch -- Front Left

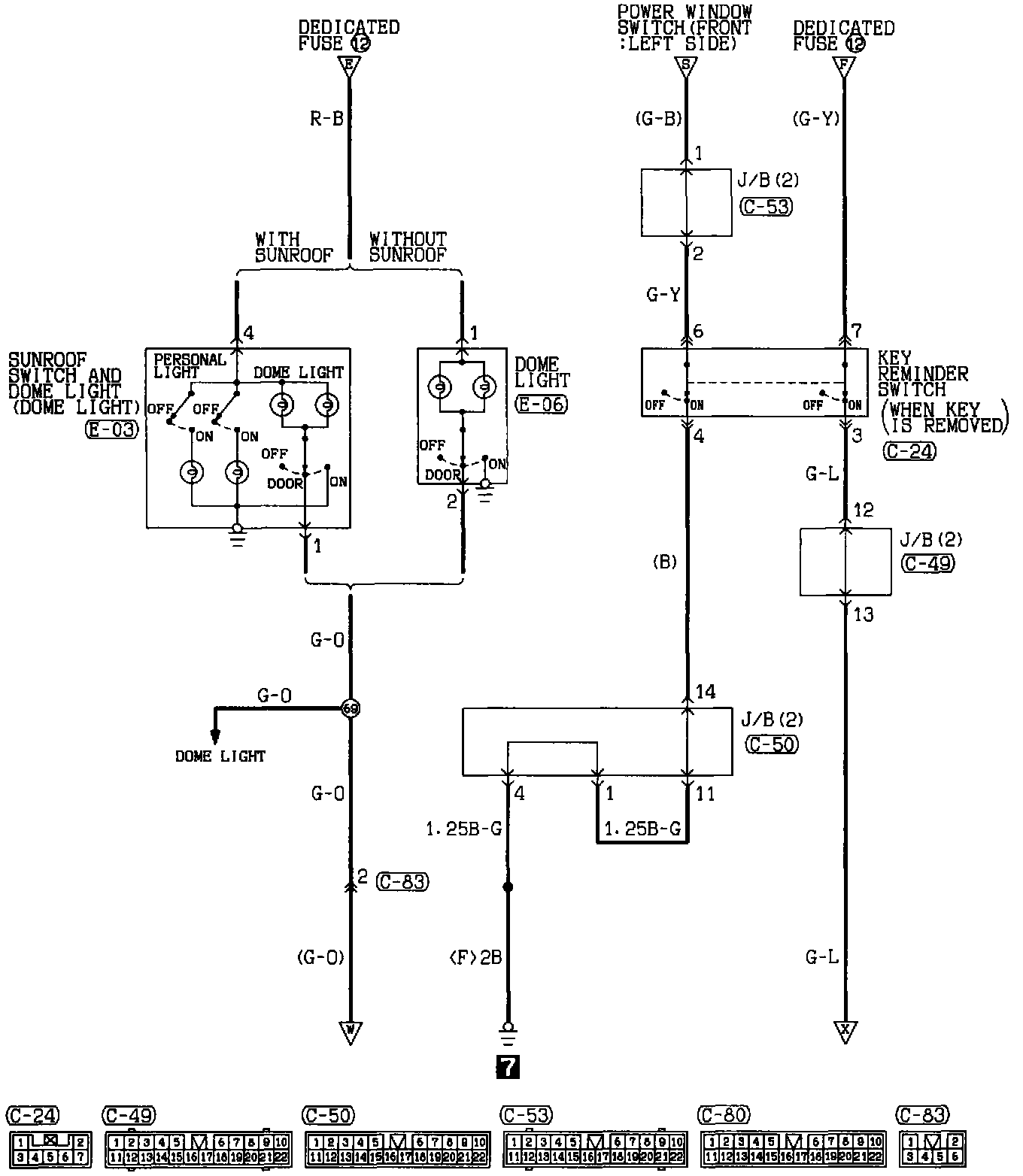

Central Door Locking System <With Keyless Entry> (Part 5 Of 8):

Junction Block 2
Key Reminder Switch
Sunroof Switch and Dome Light

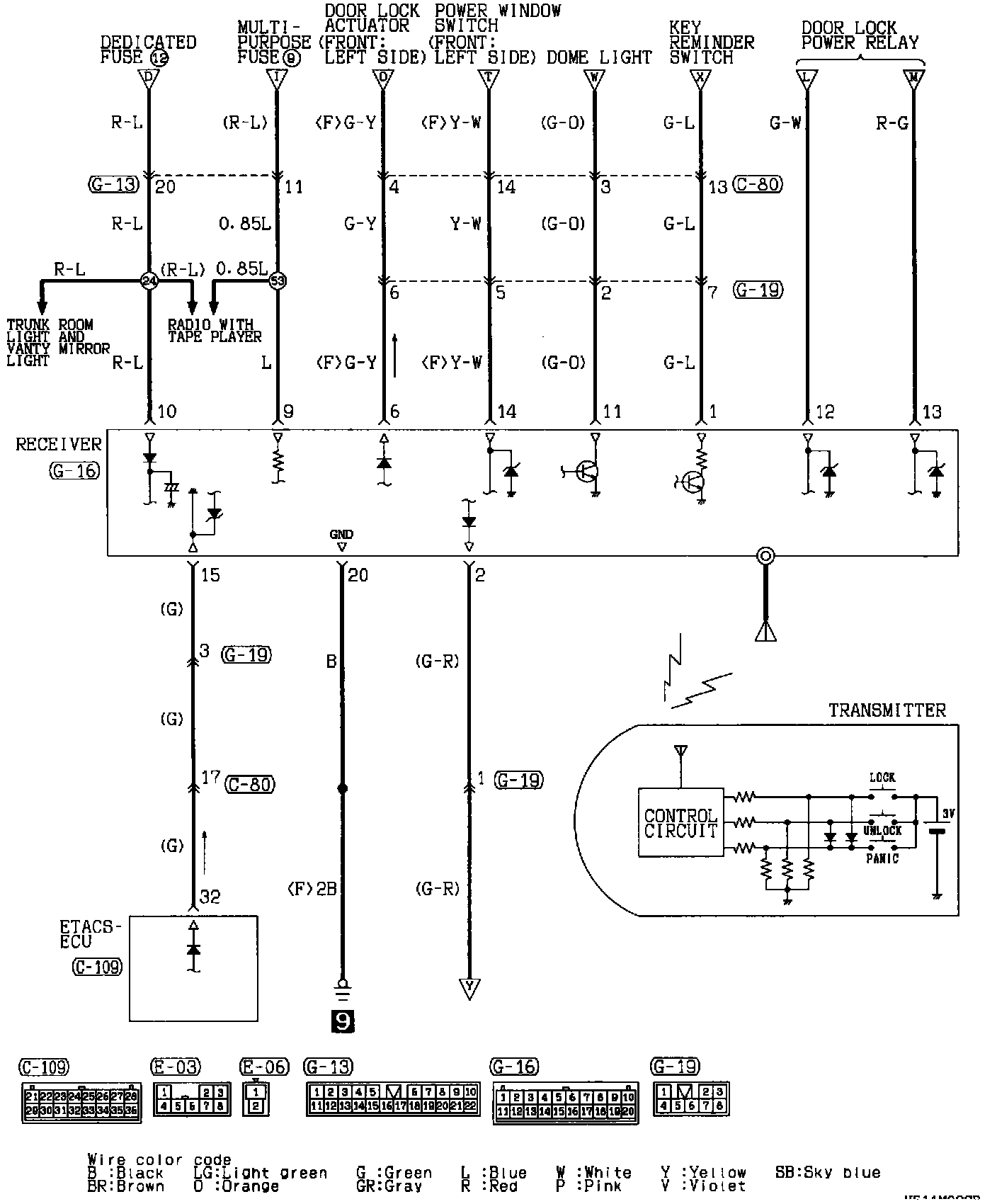

Central Door Locking System <With Keyless Entry> (Part 6 Of 8):

Receiver
Transmitter
ETACS - ECU

Central Door Locking System <With Keyless Entry> (Part 7 Of 8):

Diode
Door Lock Key Cylinder Switch -- Right
Juntion Block 2
Power Window Switch -- Front Right

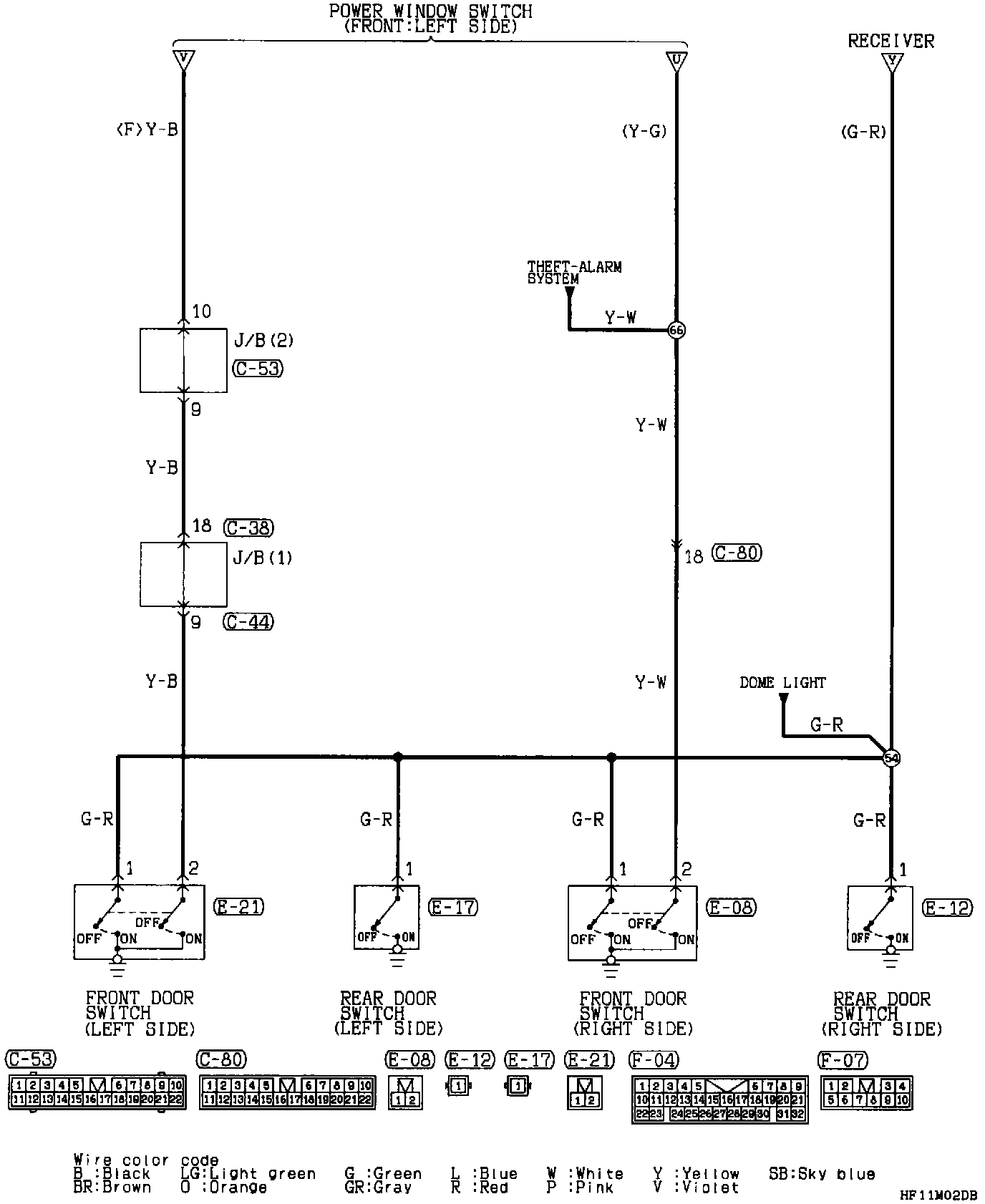

Central Door Locking System <With Keyless Entry> (Part 8 Of 8):

Juntion Block 1
Juntion Block 2
Front Door Switch -- Left
Front Door Switch -- Right
Rear Door Switch -- Left
Rear Door Switch -- Right



NOTE:
- Dedicated fuses are located in the Relay Box in the engine compartment.
- Multi-purpose fuses are located in the Junction Block under driver side of dash.
- Fusible links are located in the Relay Box in the engine compartment.
