Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

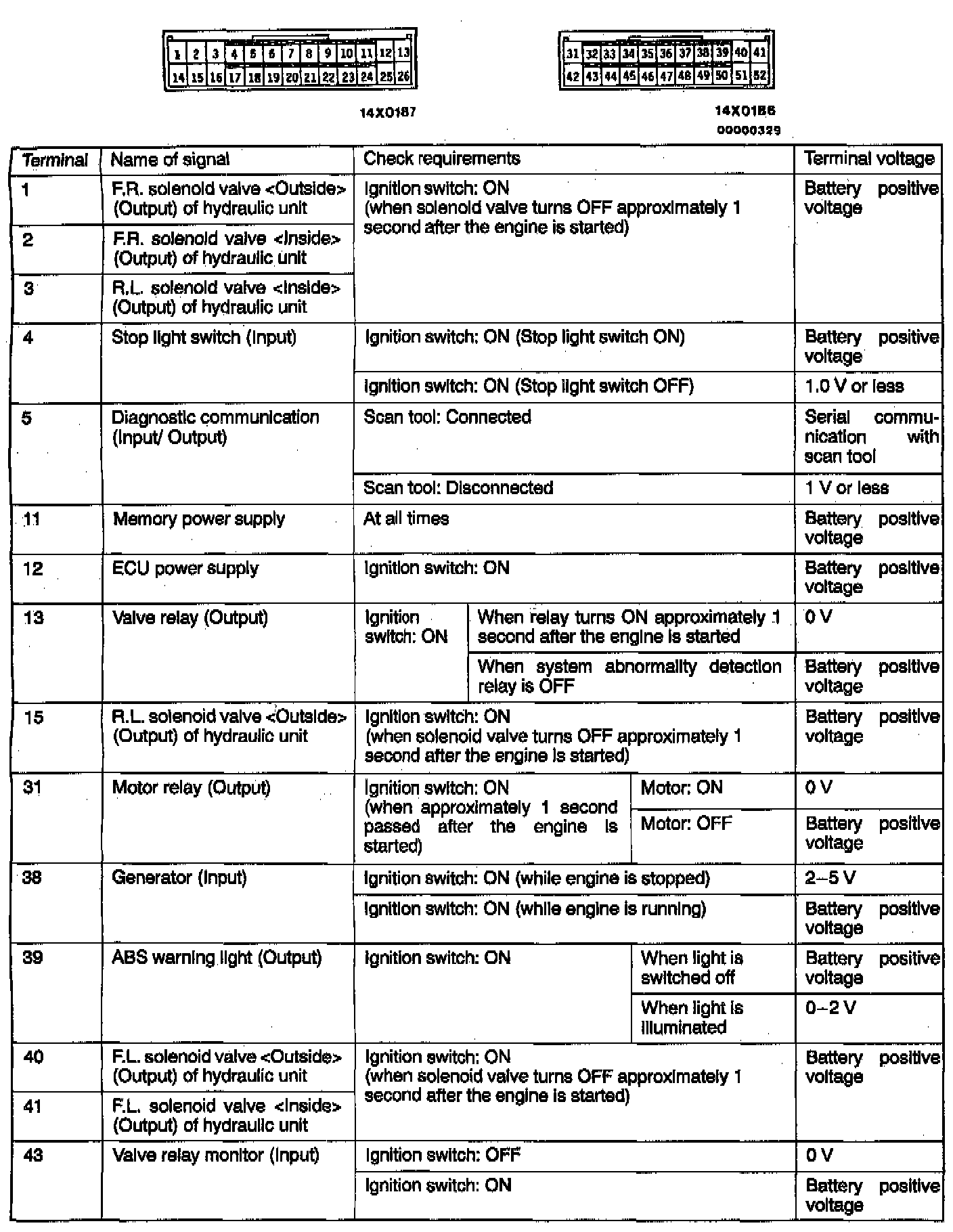

ABS-ECU Terminal Voltage Check Chart (Part 1 Of 2):

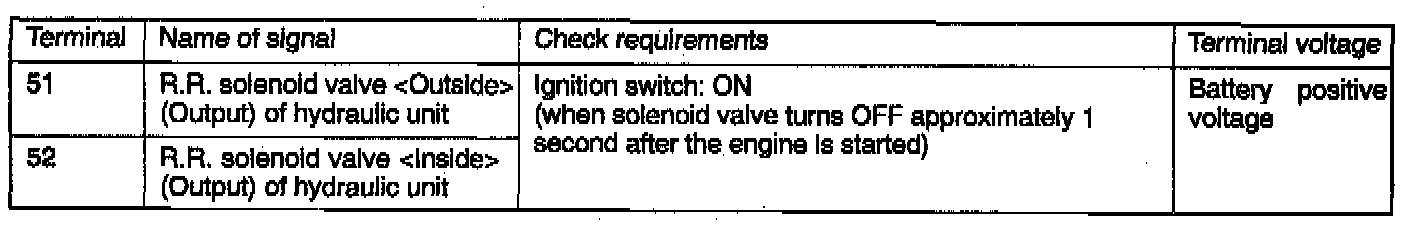

ABS-ECU Terminal Voltage Check Chart (Part 2 Of 2):

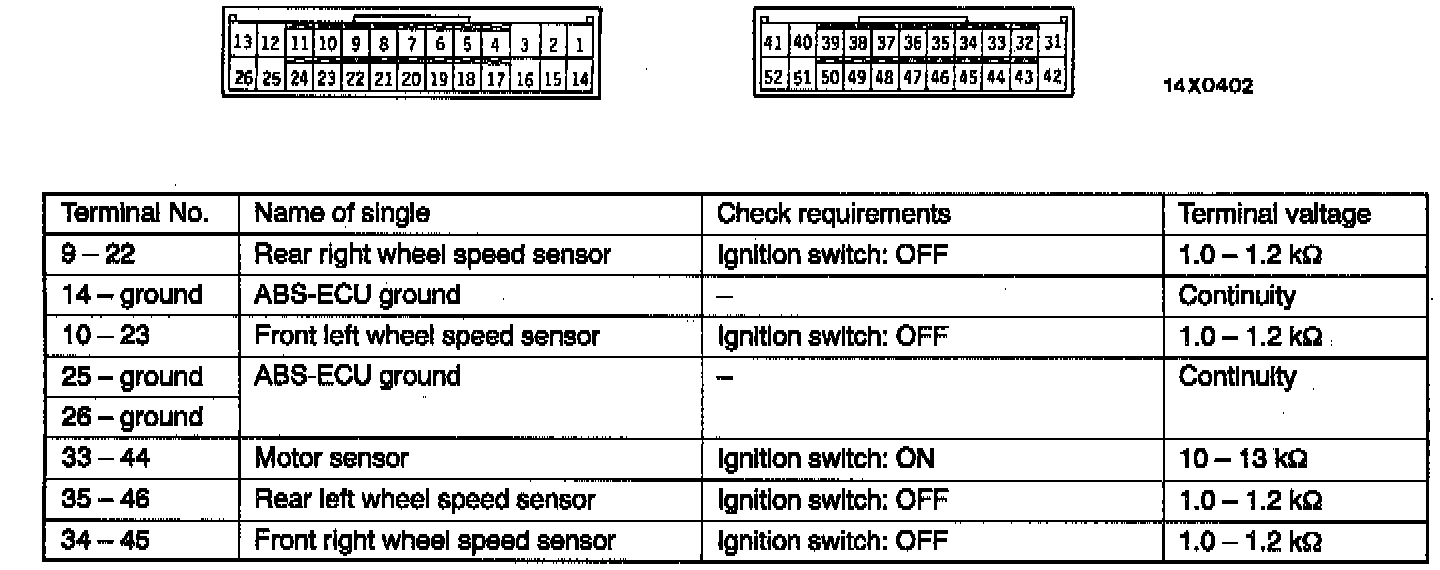

ABS-ECU Terminal Resistance And Continuity Check Chart:
