Component Tests and General Diagnostics

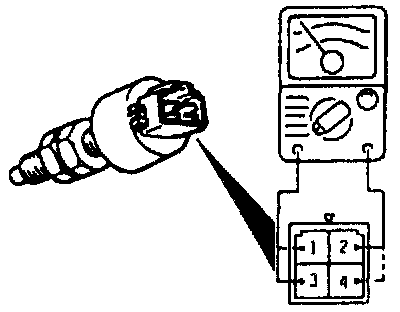

STOP LIGHT SWITCH

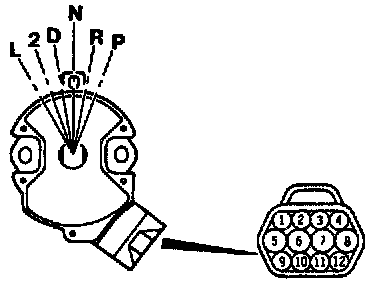

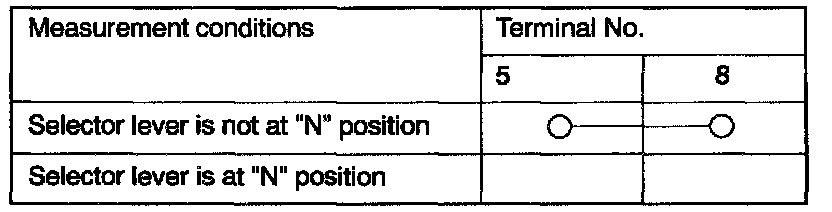

PARK/NEUTRAL POSITION SWITCH ("N" POSITION)

THROTTLE POSITION SENSOR
Throttle Position Sensor

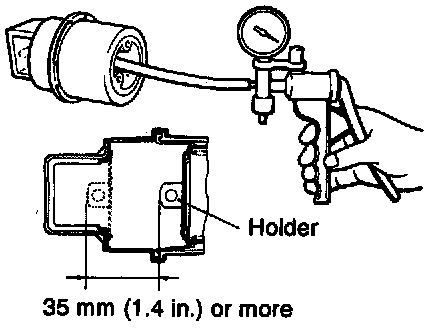

ACTUATOR
1. Remove the actuator.
2. Apply negative pressure to the actuator with the vacuum pump and check that the holder moves more than 35 mm (1.4 in.). In addition, check that there is no change in the position of the holder when negative pressure is maintained in that condition.
3. First install the actuator and then inspect and adjust the auto-cruise control cable.
