Electrical Diagrams

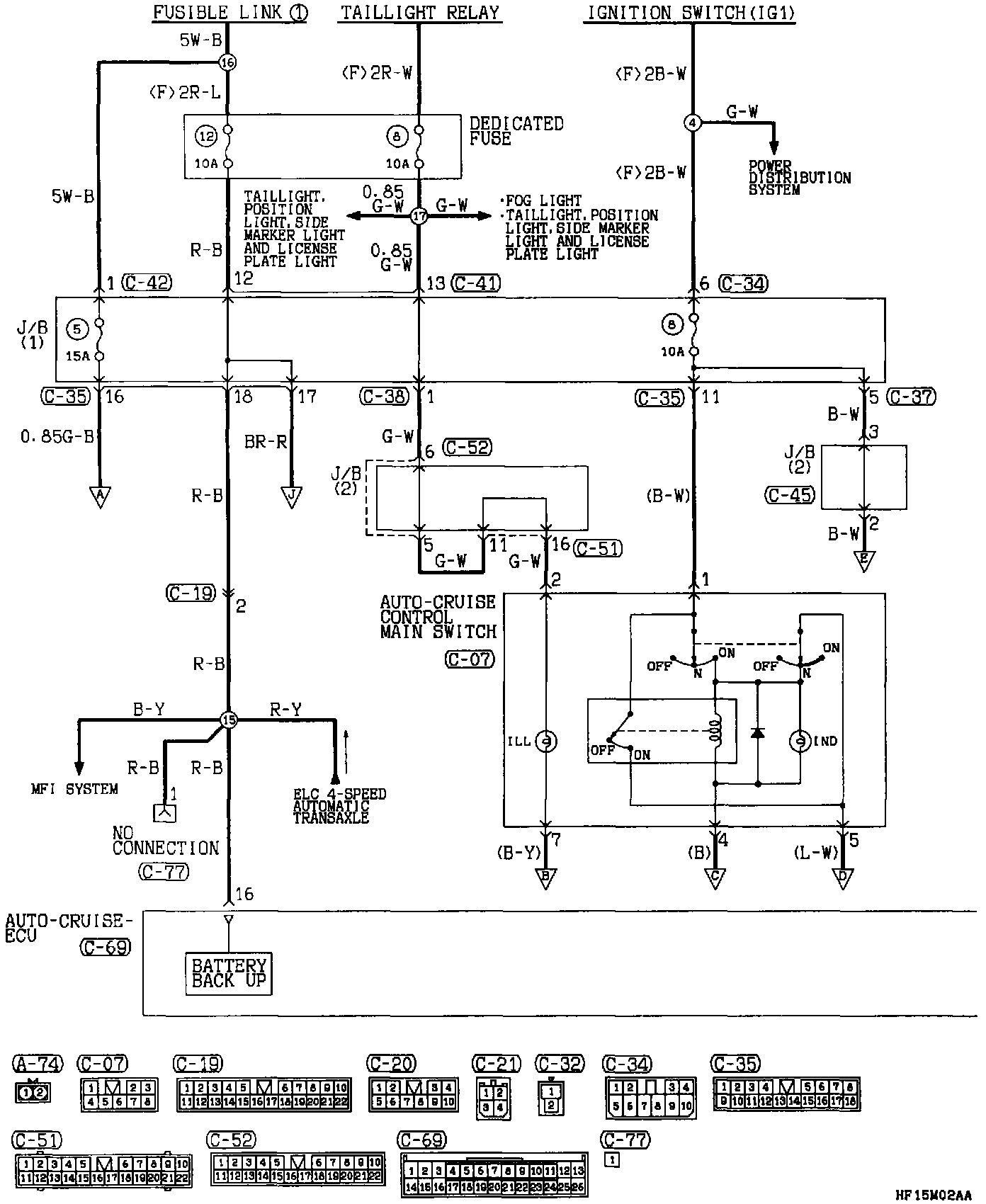

Auto-cruise Control System (Part 1 Of 7):

Auto Cruise ECU
Auto Cruise Control Main Switch
Dedicated Fuses 8 & 12
Junction Block 1
Junction Block 2
Multi-purpose Fuses 5 & 8

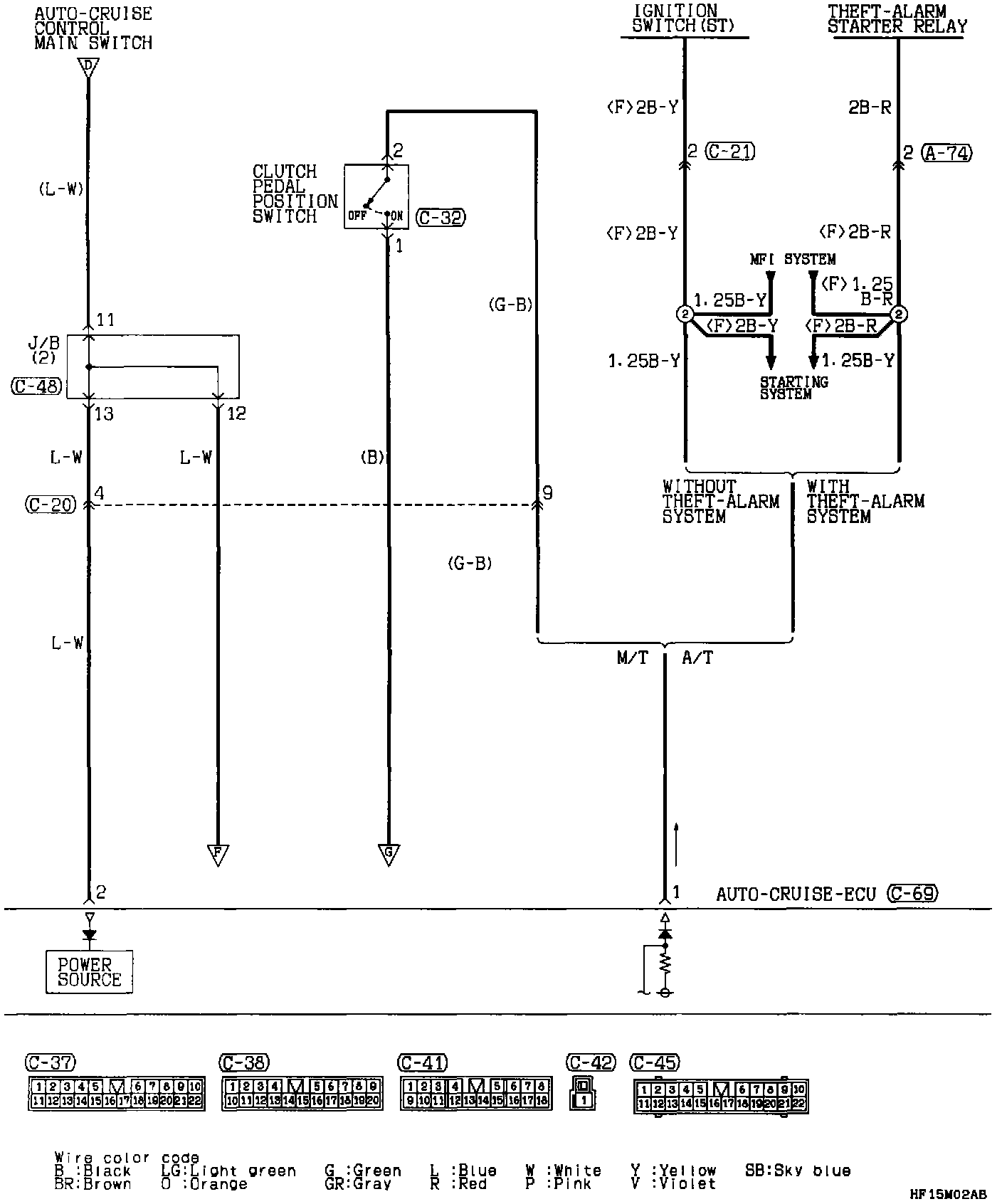

Auto-cruise Control System (Part 2 Of 7):

Auto Cruise ECU
Clutch Pedal Position Switch
Junction Block 2

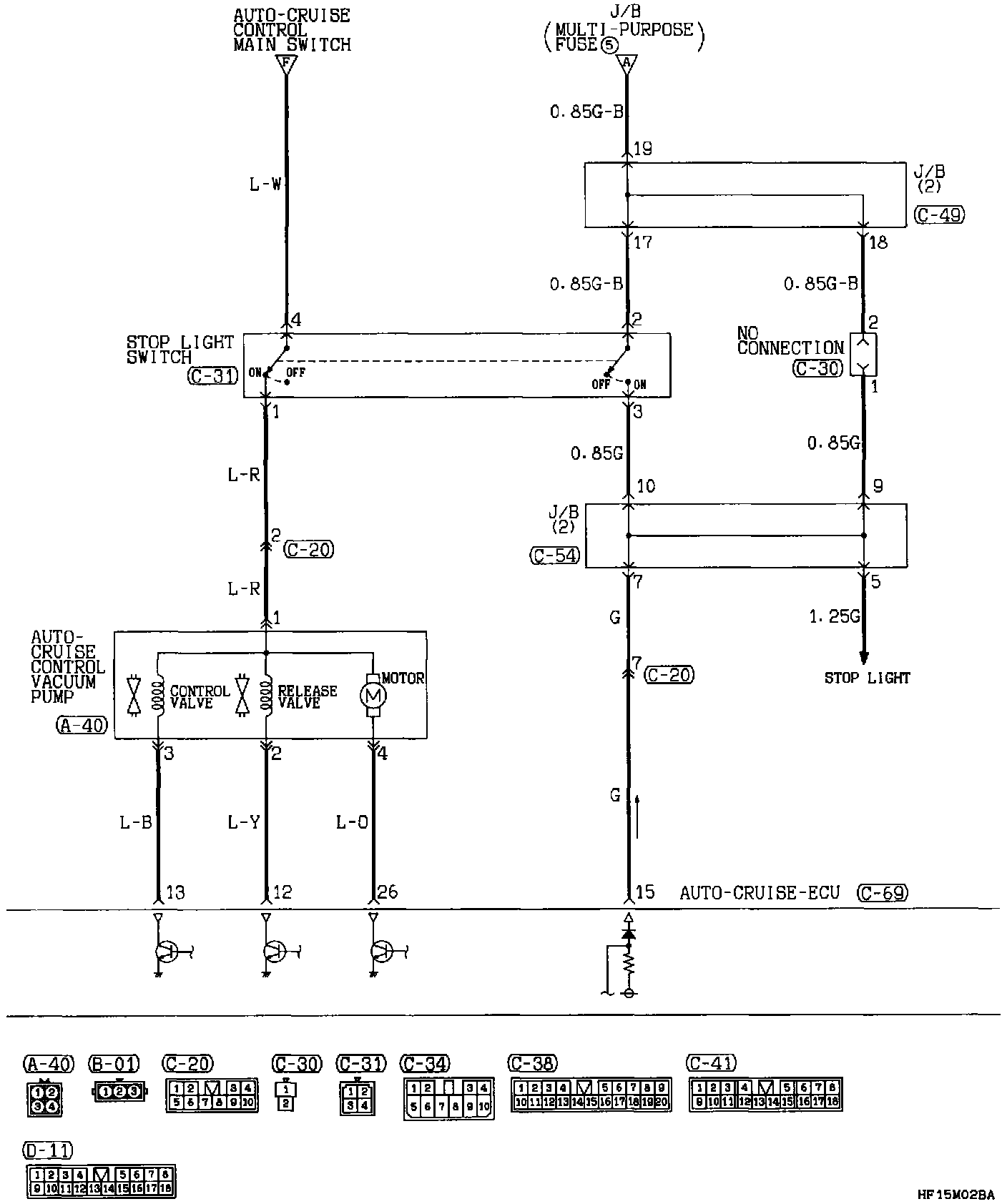

Auto-cruise Control System (Part 3 Of 7):

Auto Cruise ECU
Auto Cruise Control Vacuum Pump
Junction Block 2
Stop Light Switch

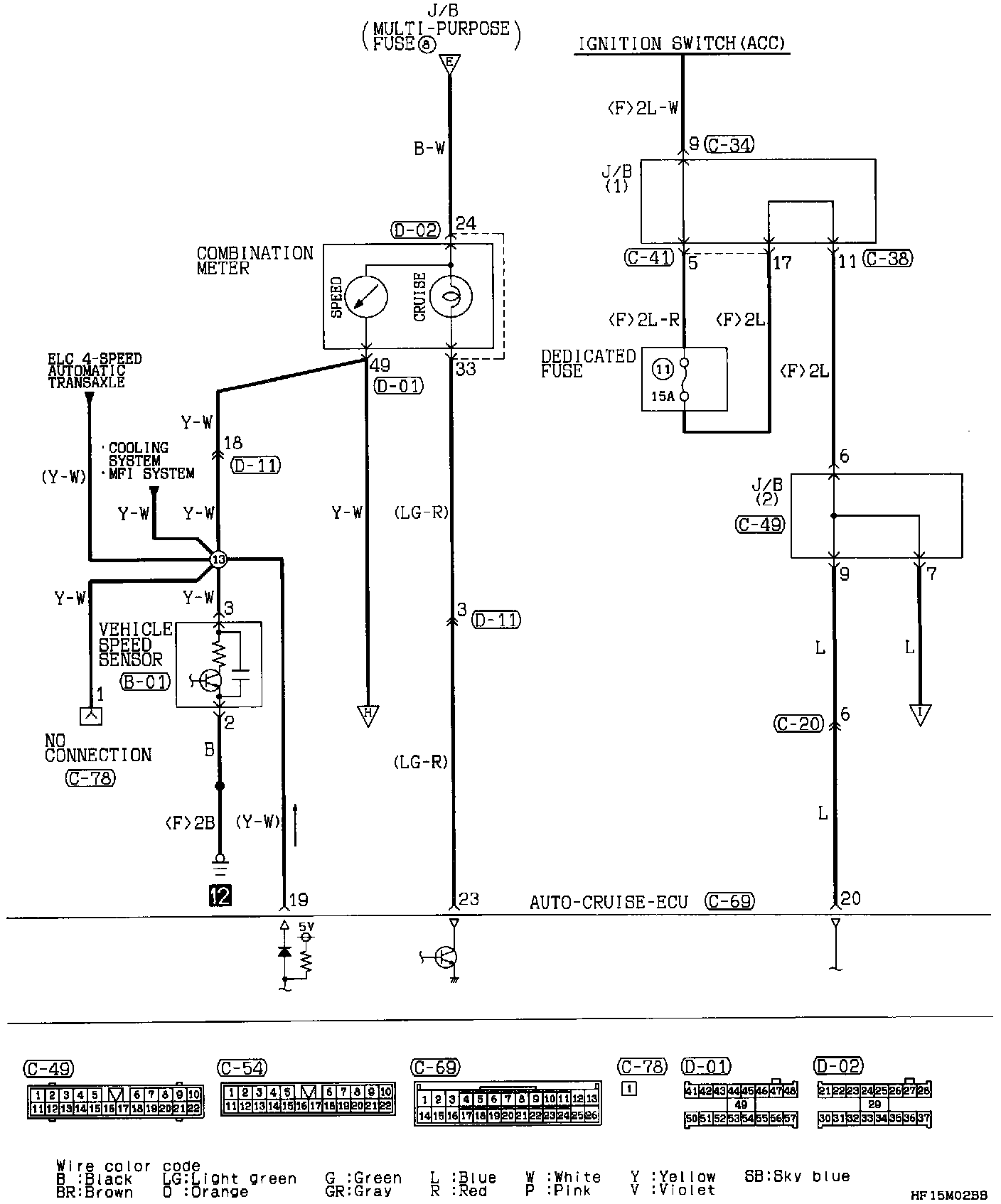

Auto-cruise Control System (Part 4 Of 7):

Auto Cruise ECU
Combination Meter
Dedicated Fuse 11
Junction Block 1
Junction Block 2
Vehicle Speed Sensor

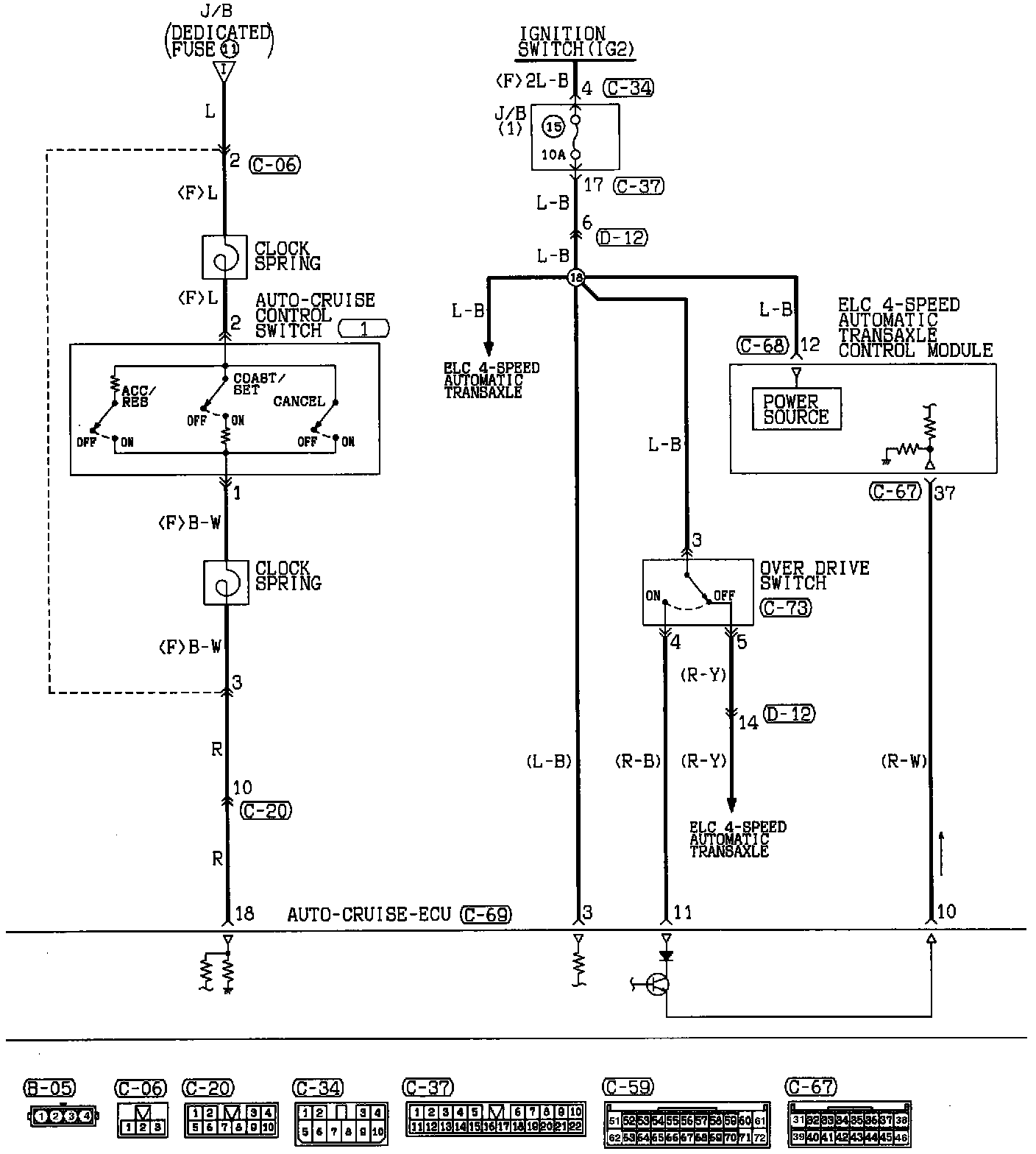

Auto-cruise Control System (Part 5 Of 7):

Auto Cruise ECU
Auto Cruise Control Switch
Clock Spring
ELC 4-Speed Automatic Transaxle Control Module
Multi-purpose Fuse 15
Overdrive Switch

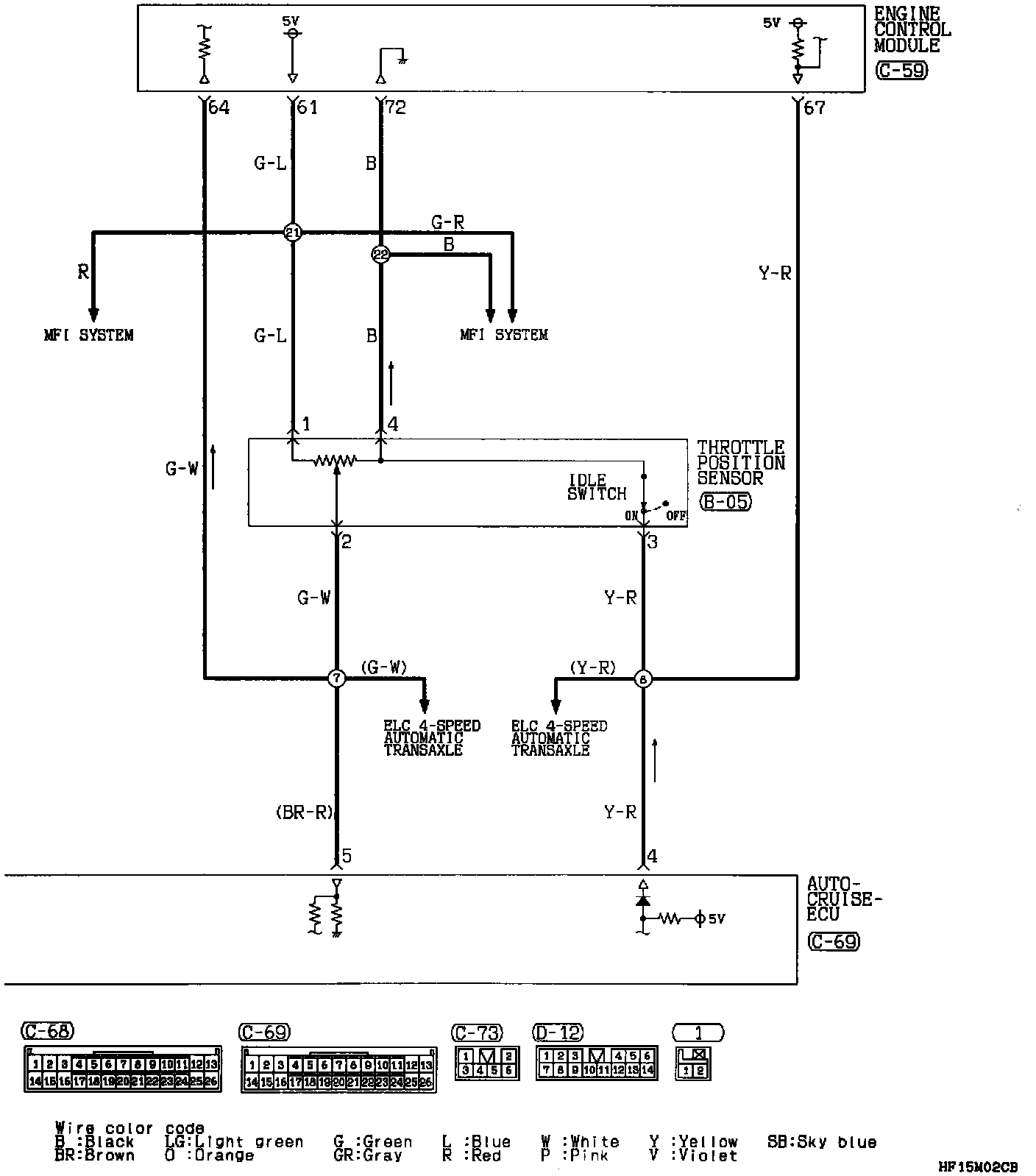

Auto-cruise Control System (Part 6 Of 7):

Auto Cruise ECU
Engine Control Module
Throttle Position Sensor

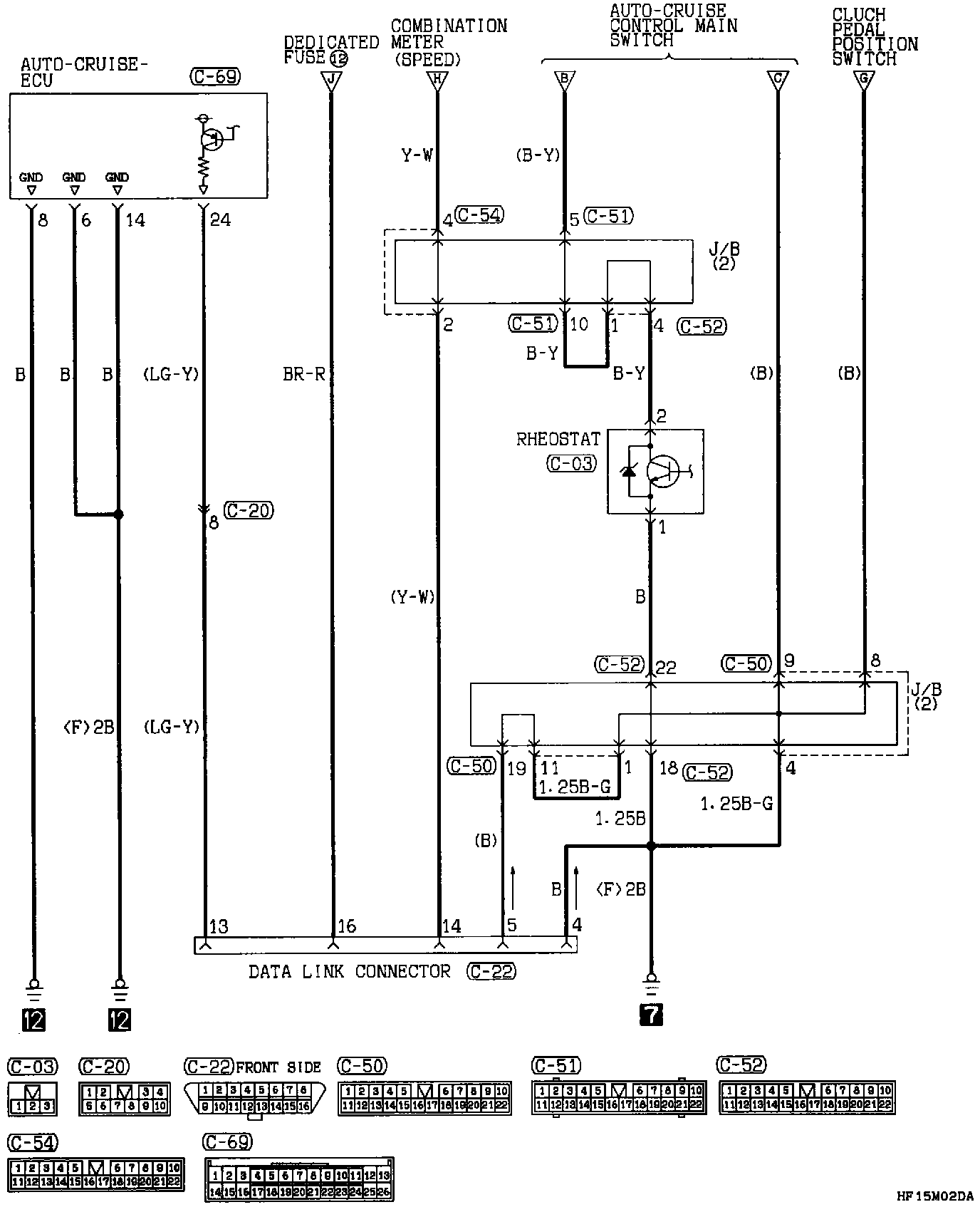

Auto-cruise Control System (Part 7 Of 7):

Auto Cruise ECU
Data Link Connector
Junction Block 2
Rheostat



NOTE:
- Dedicated fuses are located in the Relay Box in the engine compartment.
- Multi-purpose fuses are located in the Junction Block under driver side of dash.
- Fusible links are located in the Relay Box in the engine compartment.
