Cruise Control Switch: Testing and Inspection

INPUT SWITCH CODE INSPECTION METHOD
1. Connect the scan tool to the data link connector (16-pin) underneath the instrument under cover.
2. With the ignition switch in the ON position, turn the cruise control SET switch to the ON position.
3. Within 1 second after turning the cruise control main switch to ON, turn the cruise control RESUME switch to ON.

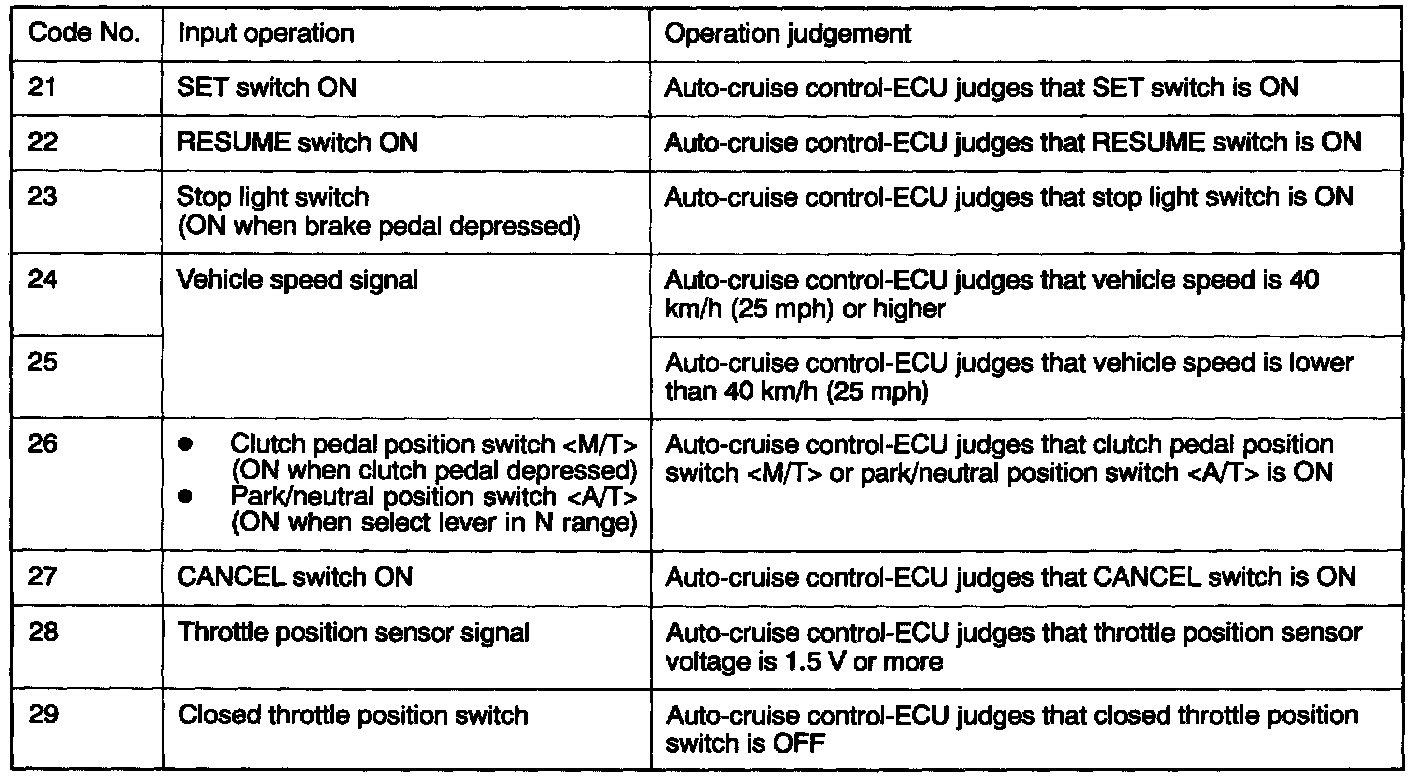

4. Operate each switch listed in the input inspection table and take a reading of the input switch codes with the scan tool.

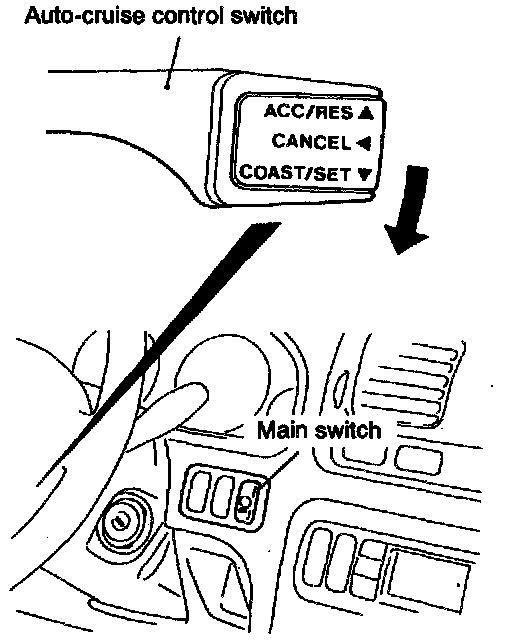

AUTO-CRUISE CONTROL SWITCH CHECK
Measure the resistance between the terminals when each of the SET, RESUME and CANCEL switches is pressed. If the values measured at this time correspond to those in the table below, then there is no problem.
