Distributor: Service and Repair

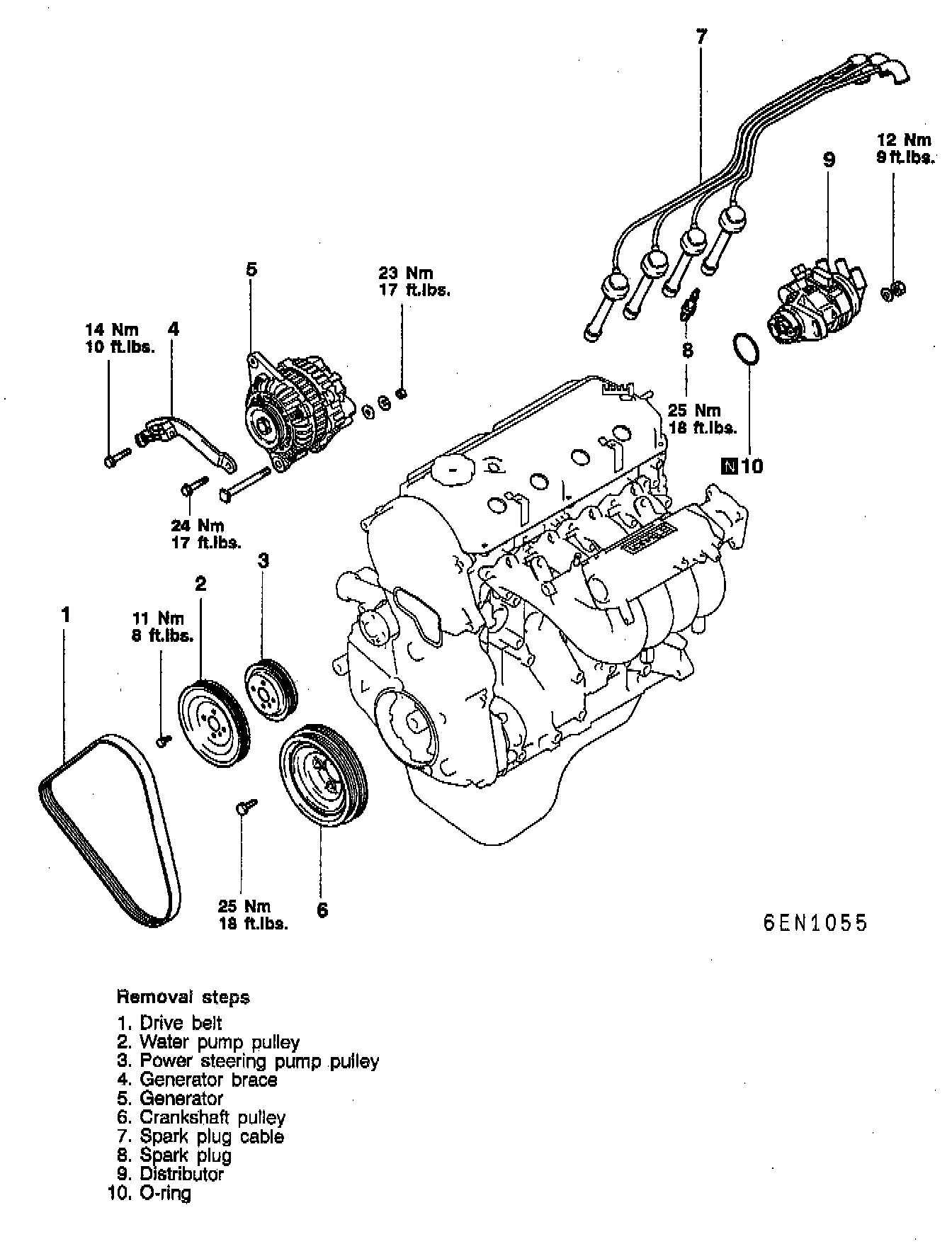

Refer to the illustration for removal, noting the following procedure for installation:
(1) Turn the crankshaft to bring No. 1 cylinder to the camshaft position on compression stroke.





(2) Align the mating marks on the distributor housing with that of the coupling key.

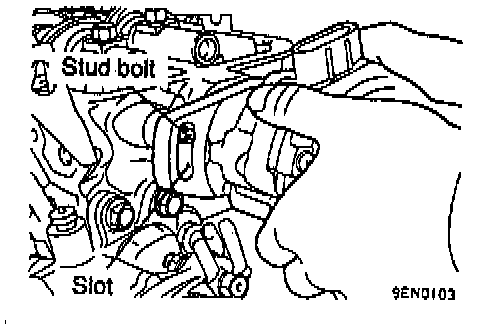

(3) Install the distributor assembly on the engine while aligning the stud bolt used for securing the distributor with the slot in the mounting flange of the distributor.
(4) Check to be sure that the ignition timing is at the standard value.
