Heater Control Assembly and A/C Switch

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT
>A< HEATER CONTROL ASSEMBLY INSTALLATION




1. Set the temperature control knob on the heater control assembly to MAX COOL.
2. Set the air mix damper lever at the bottom of the heater unit to the MAX COOL position and install the cable to the lever pin.
3. Push the outer cable in the direction of the arrow so that there is no looseness and then secure it with the clip.




4. Set the knob for the air outlet changeover on the heater control assembly to the DEF position.

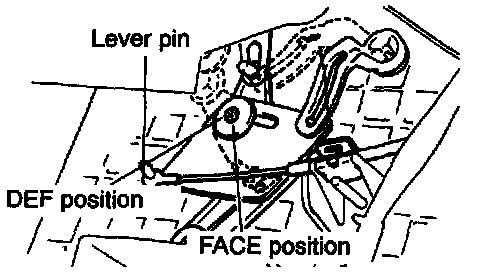

5. Set the air outlet changeover damper lever of the heater unit to DEF position and install the cable to the lever pin.
6. Push the outer cable in the direction of the arrow so that there is no looseness and then secure it with the clip.

INSPECTION

BLOWER SWITCH CONTINUITY CHECK

DEFROSTER SWITCH CONTINUITY CHECK

DISASSEMBLY AND REASSEMBLY

DISASSEMBLY SERVICE POINT

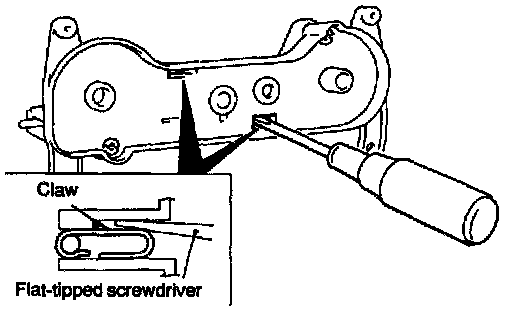

AIR OUTLET CHANGEOVER DAMPER CABLE/AIR MIXING DAMPER CABLE REMOVAL
Insert a flat-tipped screwdriver to disengage the claws and then remove the cables.
