Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Differential Assembly
Differential Assembly

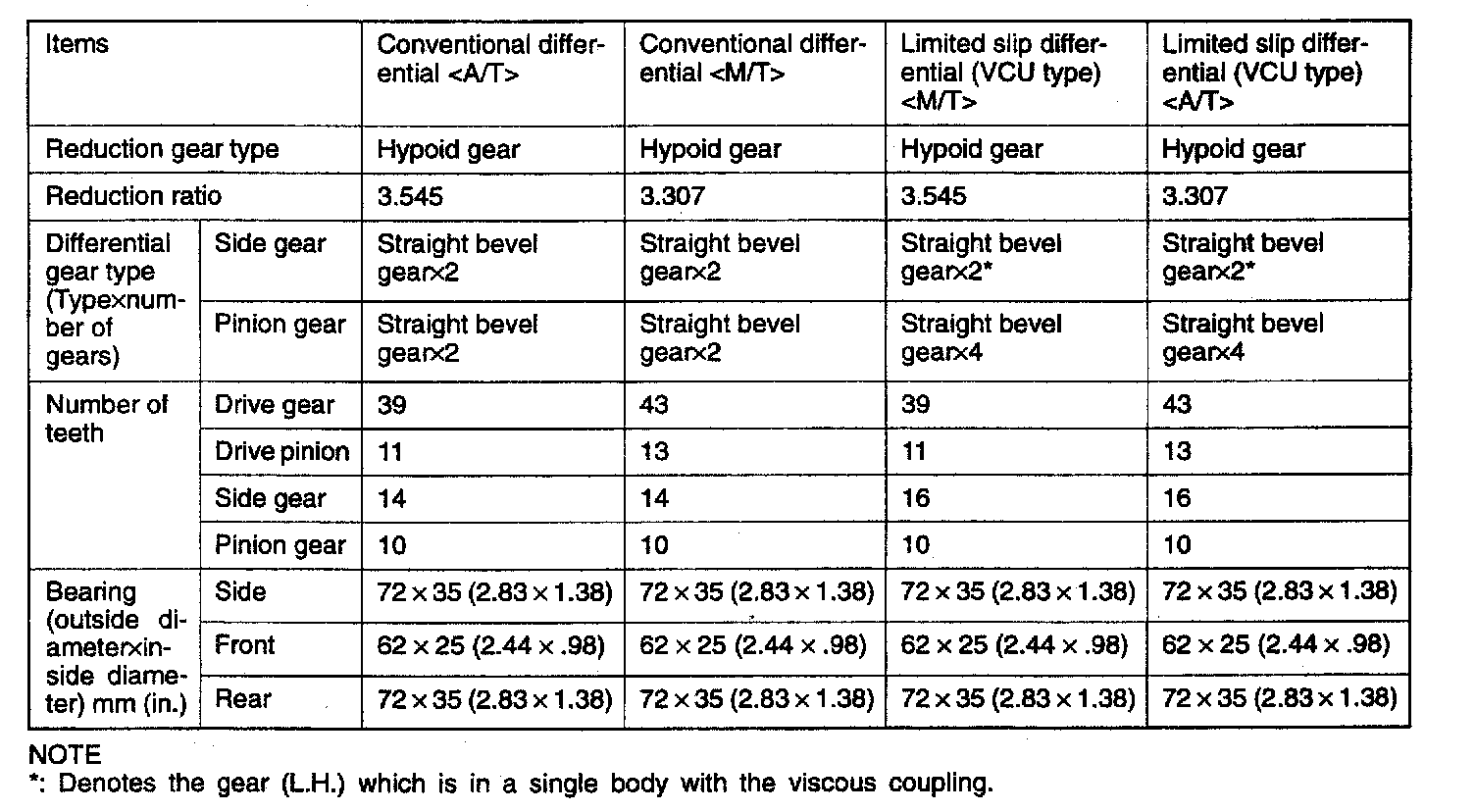

Rear Axle (AWD), Differential Dimensions:

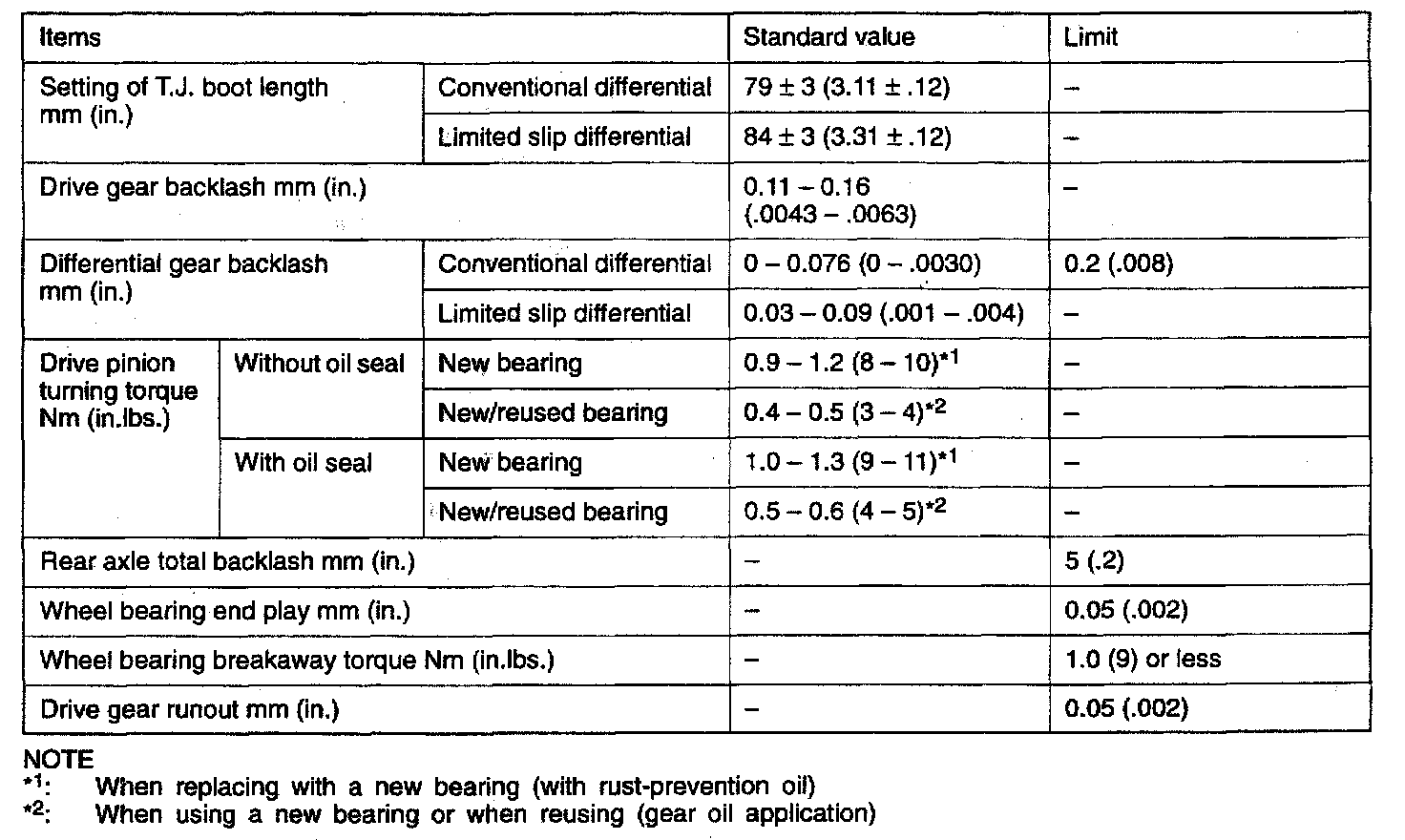

Rear Axle (AWD), Differential Standards & Limits:
