Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Testing and Inspection
>>
Oscilloscope Patterns and Waveforms
>>
Standard Wave Form Observation Conditions
Standard Wave Form Observation Conditions

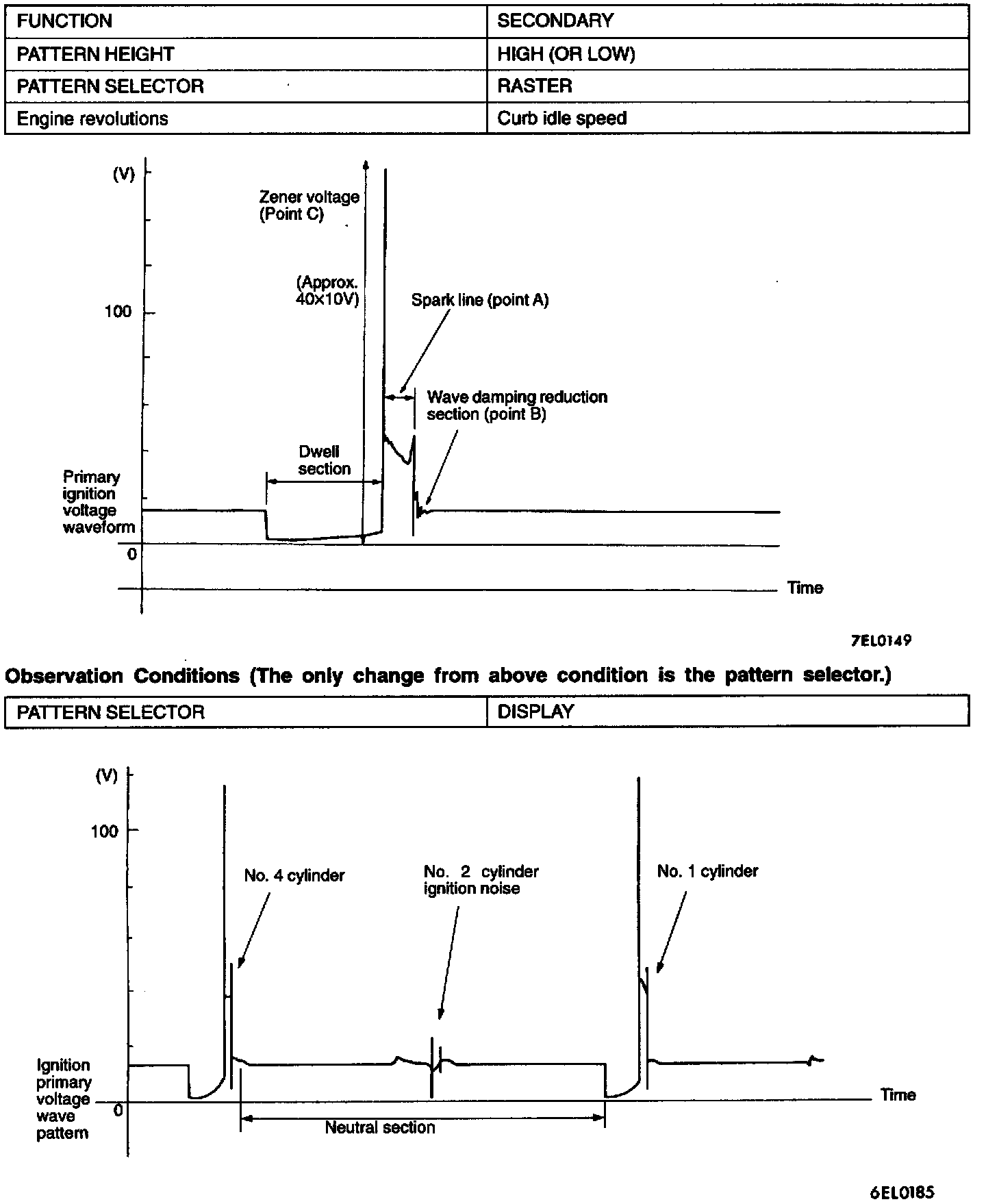

Standard Waveform - Observation Conditions:

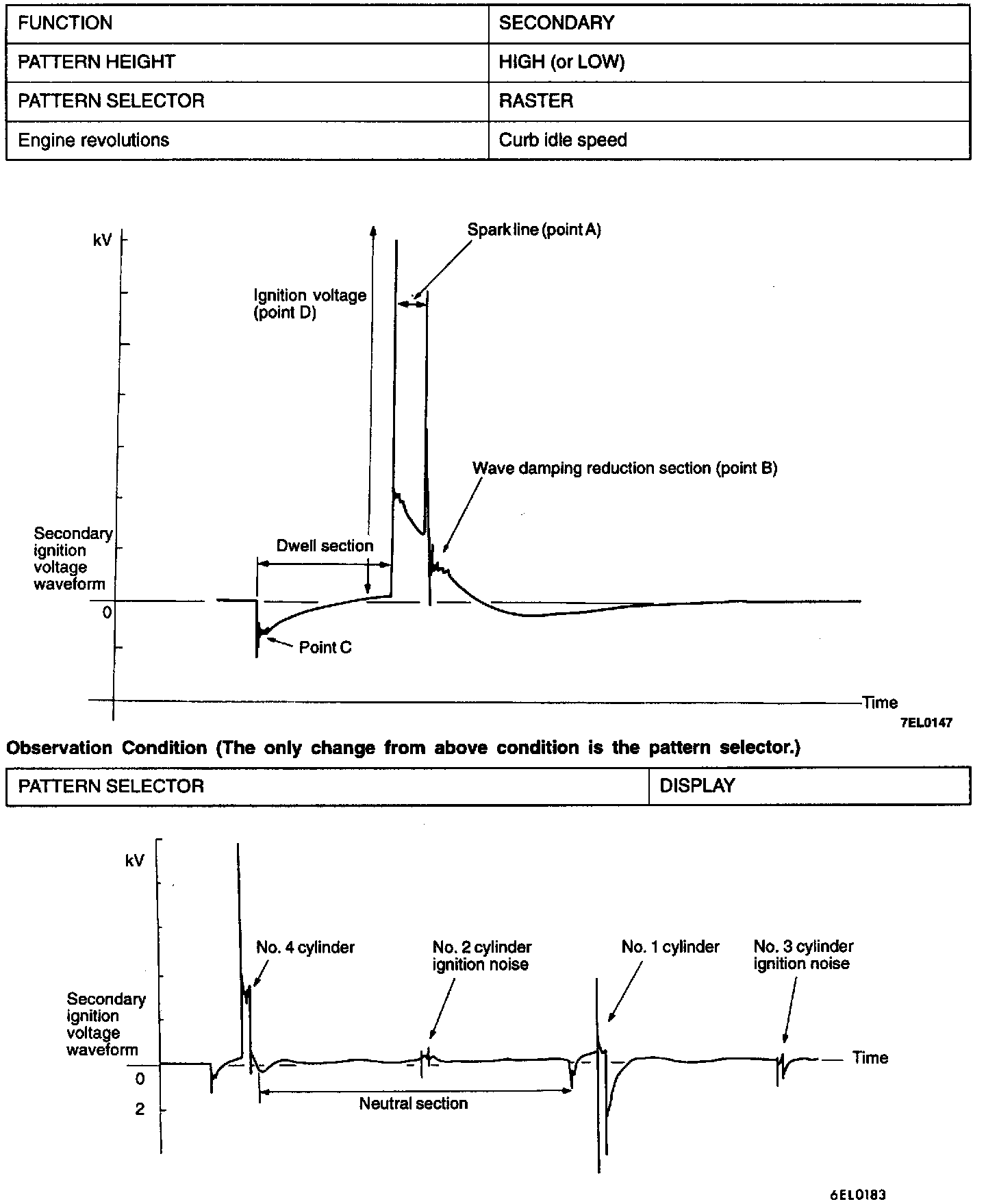

Standard Waveform - Observation Conditions:
