Canister Purge Control Valve: Service and Repair

INSTALLATION SERVICE POINT

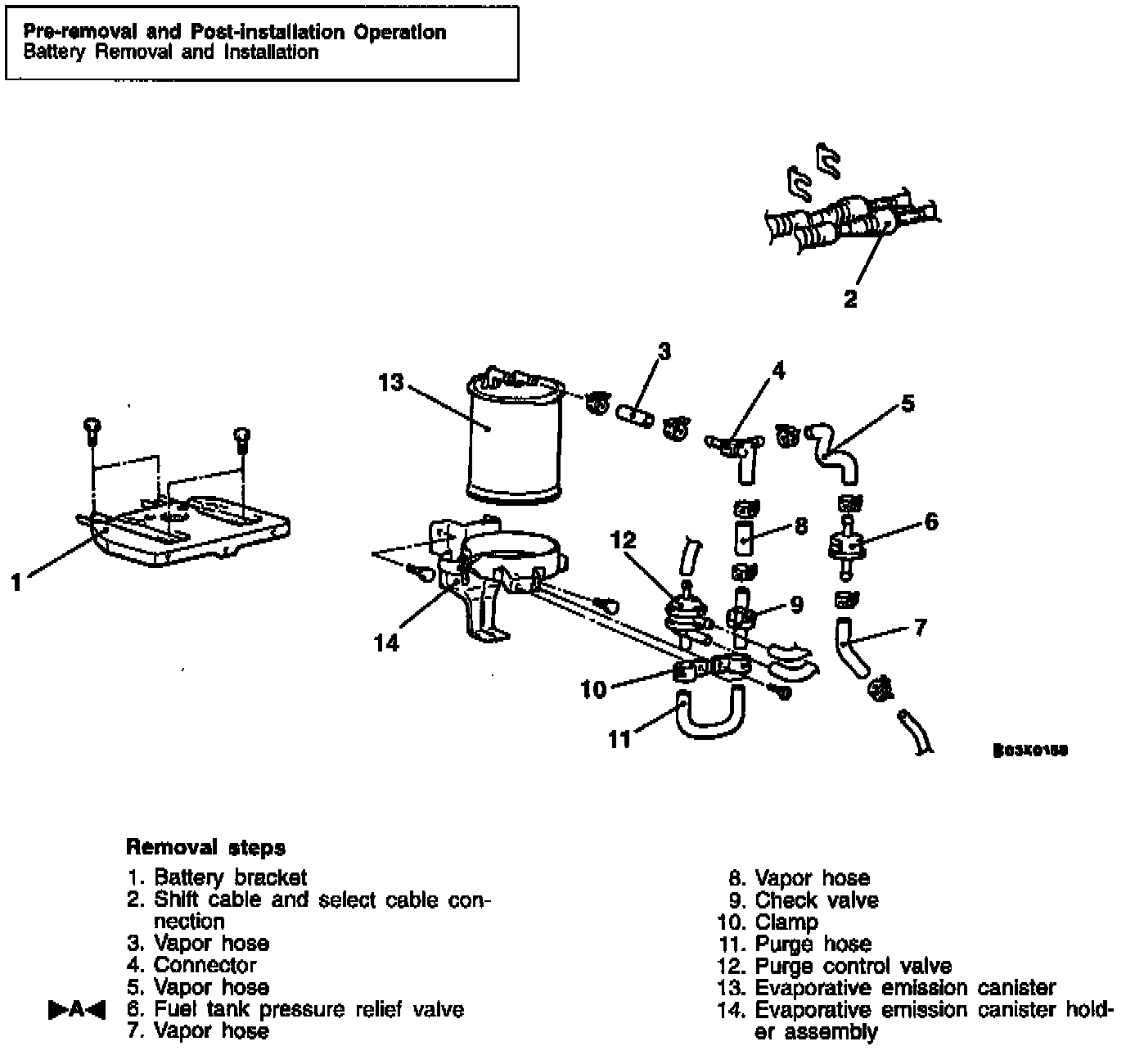

>A< FUEL TANK PRESSURE RELIEF VALVE INSTALLATION
Install the fuel tank pressure relief valve in the direction shown on the left.
