Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Annulus Gear and Transfer Drive Gear Set
Annulus Gear and Transfer Drive Gear Set

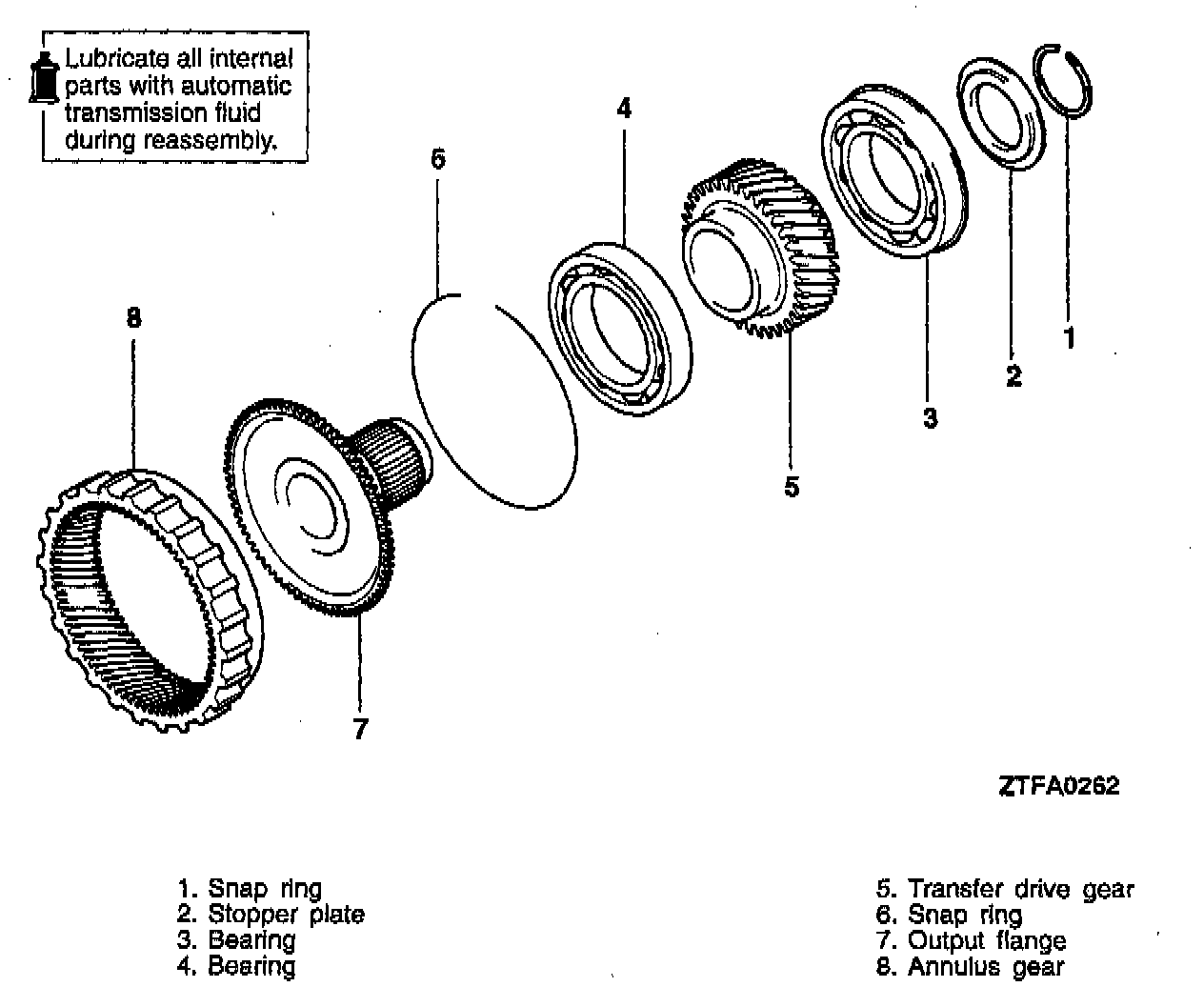

Annulus Gear and Transfer Drive Gear Set:
