Home
>>
Mitsubishi
>>
1997
>>
Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
Vehicle Speed Sensor

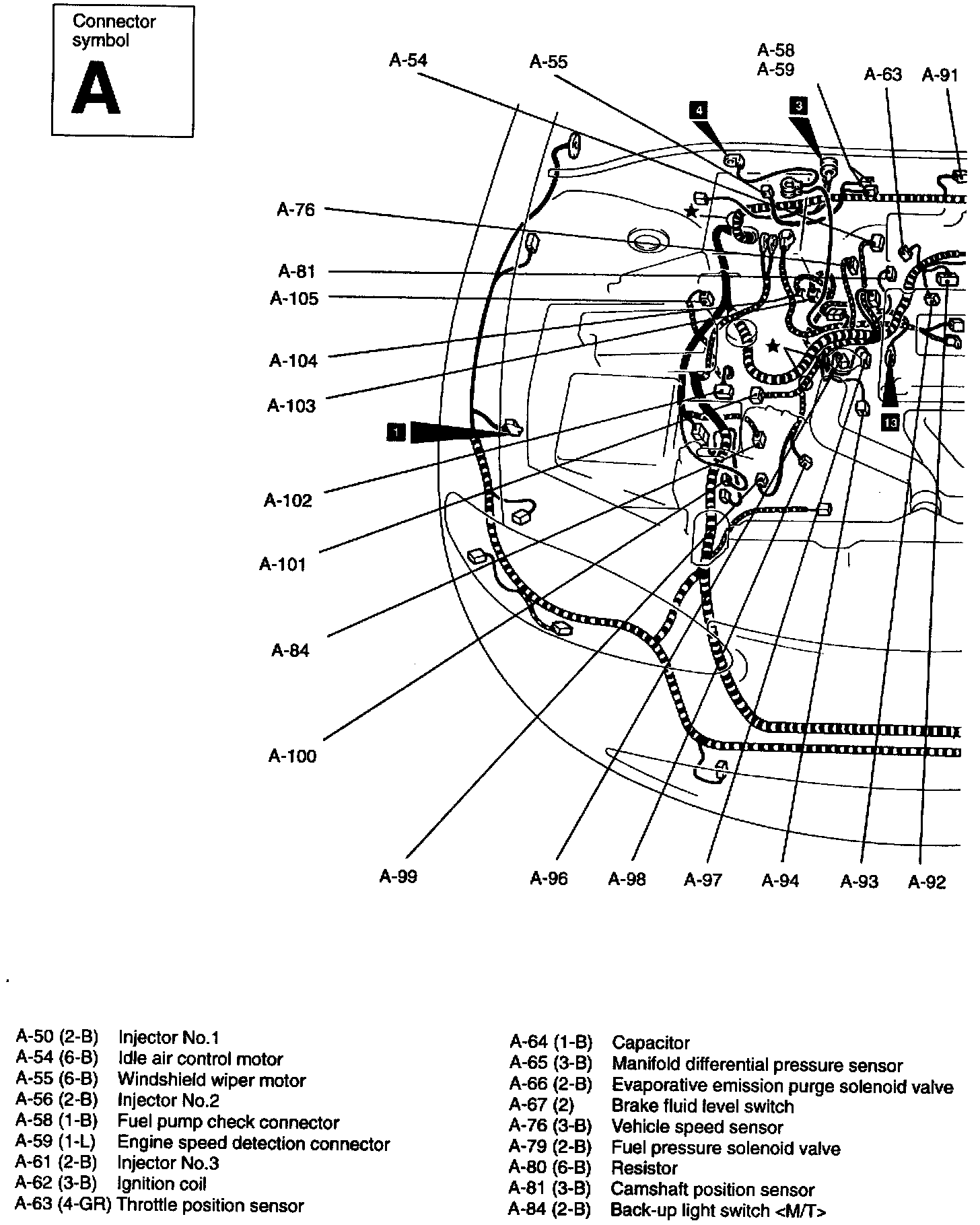

Engine Compartment - Connector A (50 Thru 84):
