Overdrive Solenoid: Testing and Inspection

CHECK
1. Disconnect the solenoid and pressure switch assembly connector.

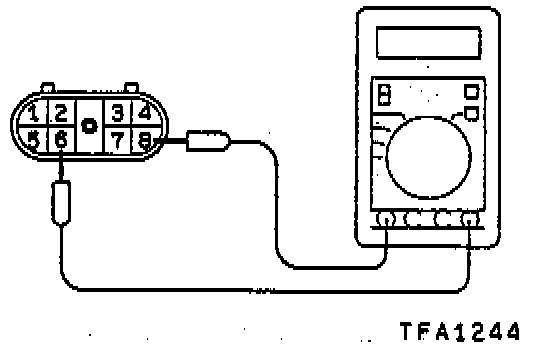

2. Measure the resistance between the solenoid and pressure switch assembly side connector terminals 6 and 8.
Standard value: Approximately 1 ohm [at 20° C (68° F)]
3. If the resistance is outside the standard value, replace the solenoid and pressure switch assembly.
