Tail Lamp Relay: Testing and Inspection

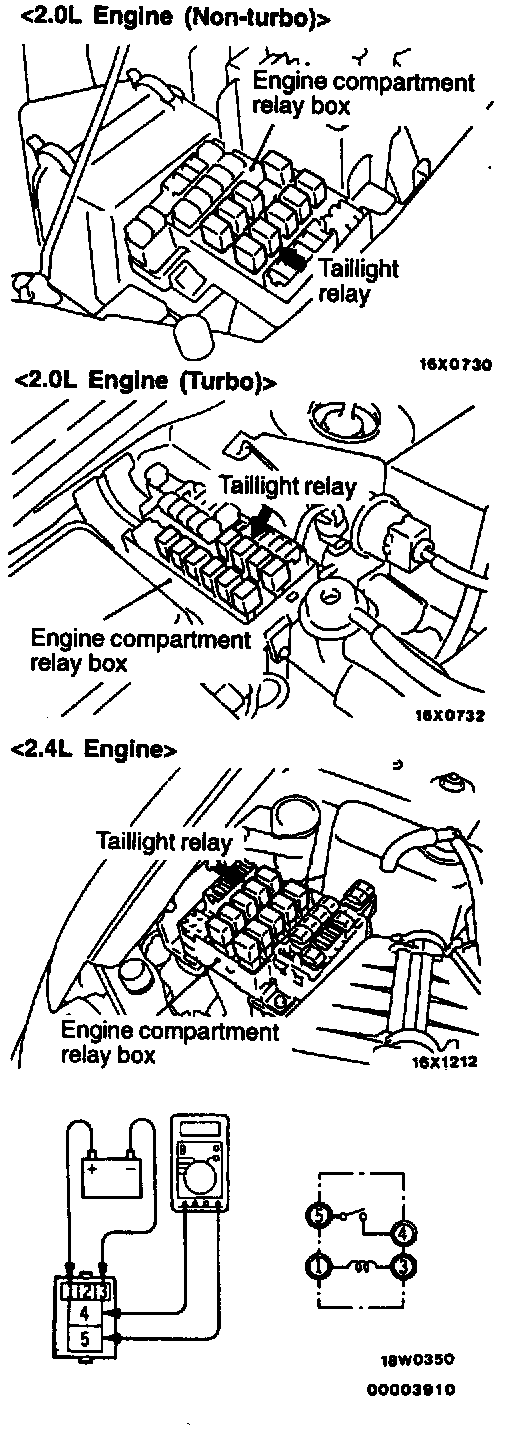

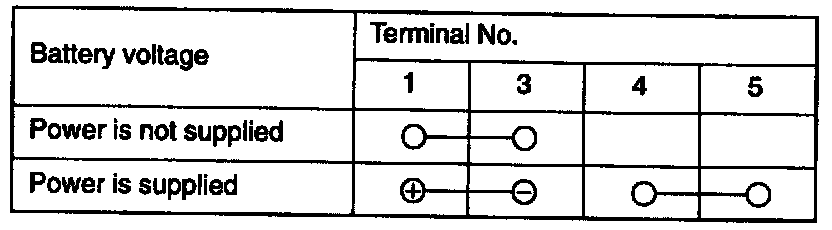

Taillight Relay Continuity Check:



Taillight Relay Continuity Check:
