Throttle Body: Service and Repair

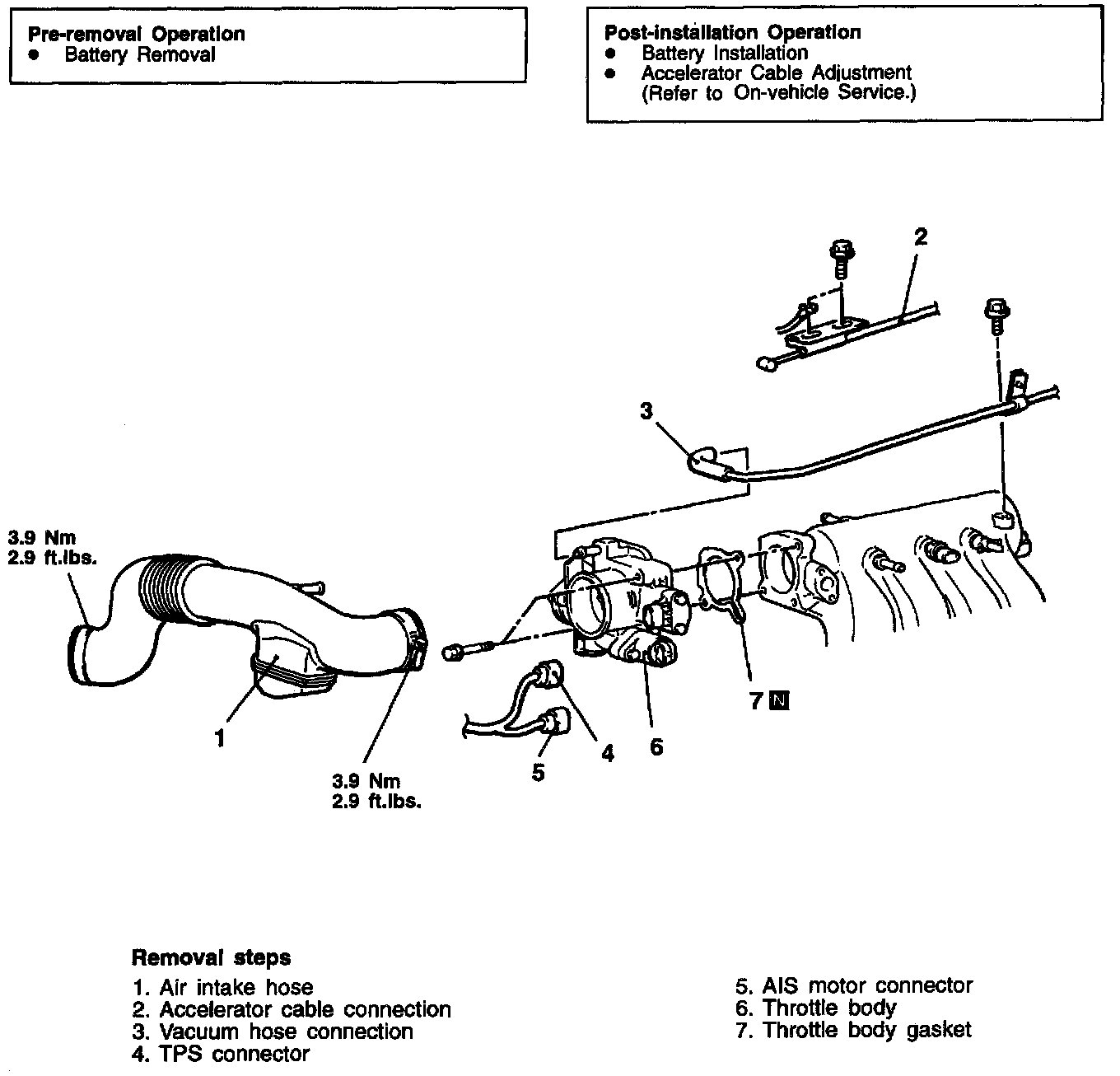

REMOVAL AND INSTALLATION
DISASSEMBLY AND REASSEMBLY
DISASSEMBLY SERVICE POINT
IAC (AIS) MOTOR REMOVAL
1. Do not disassemble the motor.
2. Do not immerse solvent to clean the sensor and motor.
Clean them with shop towel.
. THROTTLE BODY REMOVAL
1. Do not remove the throttle valve.
2. Check if the vacuum port or passage is cogged. Use compressed ais to clean the vacuum passage.
