Symptom Related Diagnostic Procedures

TROUBLESHOOTING PROCEDURES




INSPECTION AT THE AUTOMATIC COMPRESSOR-ECM TERMINAL

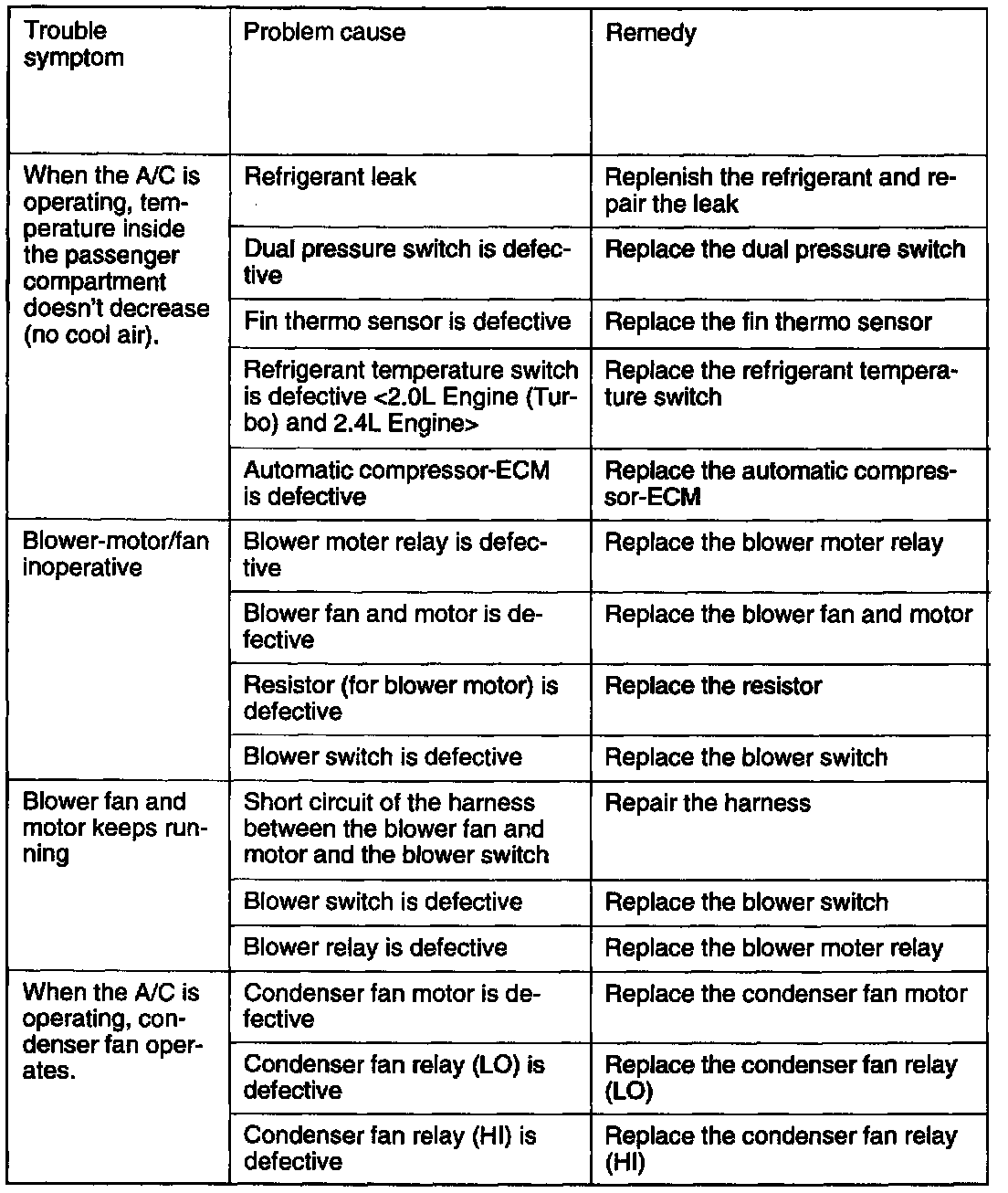

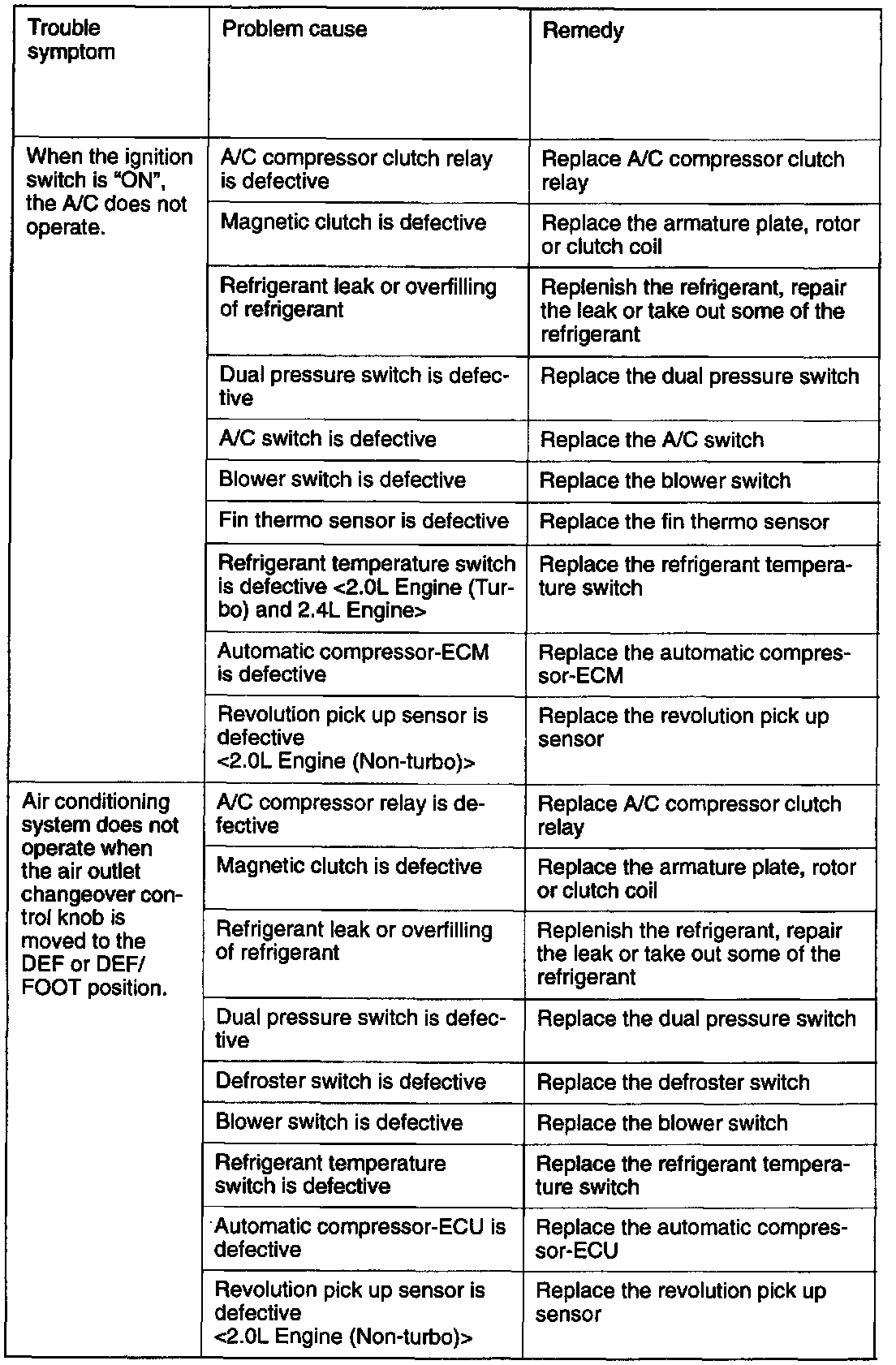

TROUBLESHOOTING HINTS

Condenser fan and radiator fan control refer to COOLING SYSTEM TROUBLESHOOTING.
